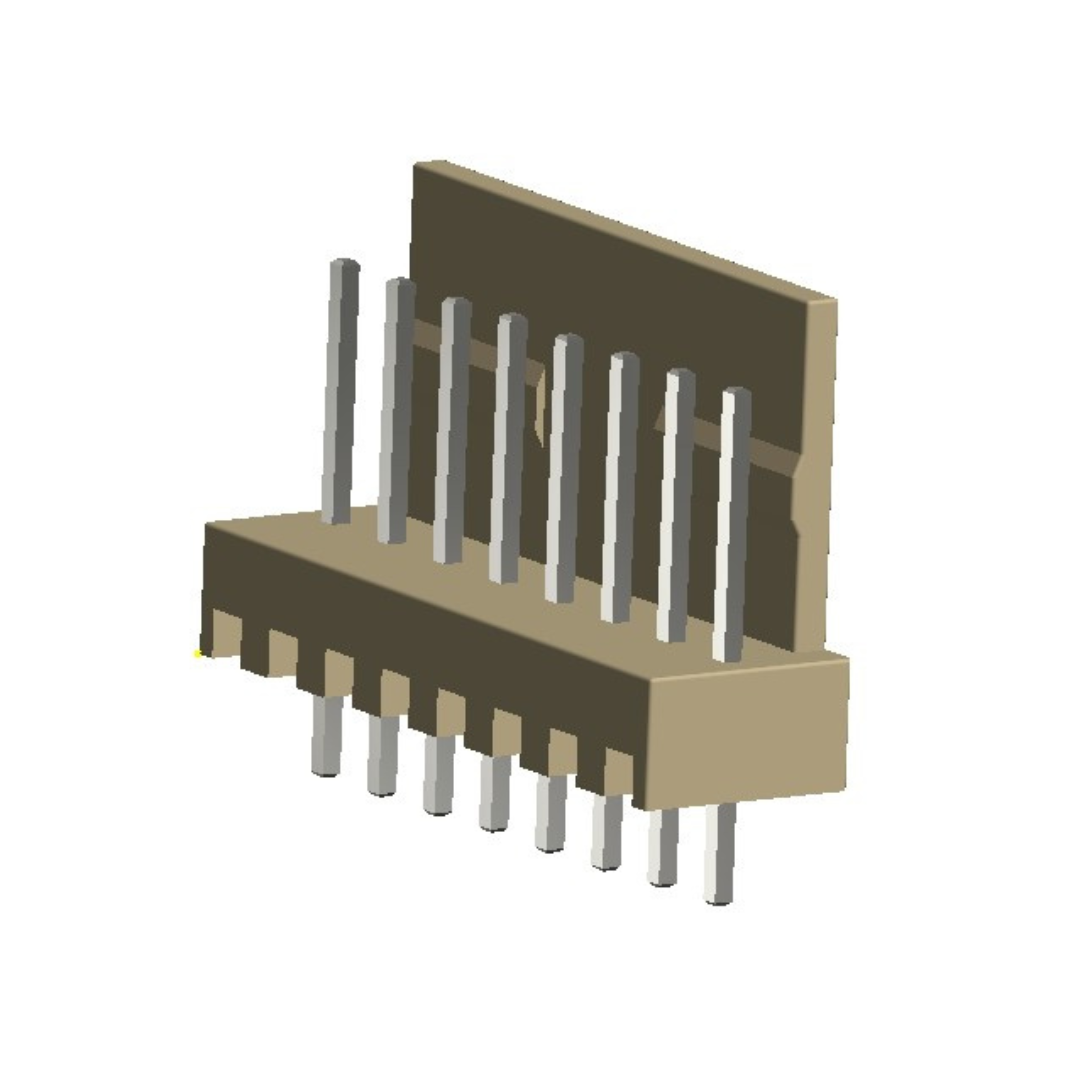

Wafer With Ramp (Straight) (P9050S29-19-X)
Description
It is a connector designed for secure and efficient straight-line connections in electronic assemblies.
Material and Finish
Insulator Body: |
Nylon 66, UL94V-2 |
Contact: |
Brass, Tin Plated |
Electrical Characteristics
Current Rating: |
4A AC/DC |
Voltage Rating: |
250V AC/DC |
Insulation Resistance: |
1000 M OHMS min |
Contact withstanding: |
10m OHMS max |
Dielectric Withstanding: |
1000V AC/minute |
Part No
P9050S29-19-X
