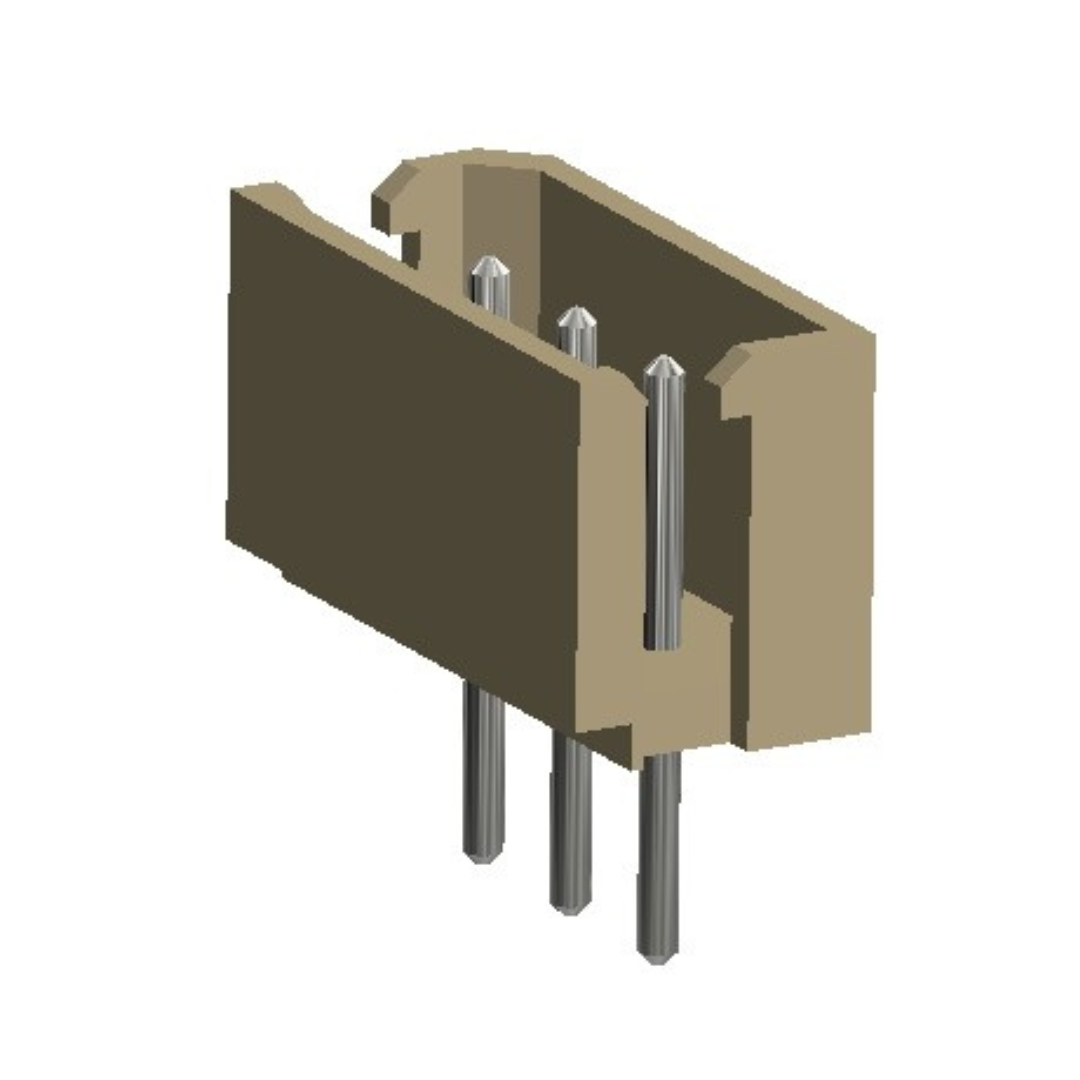

Wafer Shrouded, Round Type Pins(Straight) P9060S
Description
It is 2.50mm pitch shrouded connectors designed for secure and reliable board-to-wire connections.
Specifications
| No. of Ways | 2-16 |
|---|---|
| Voltage Rating | 250V AC,DC |
| Current Rating | 3A AC,DC |
| Contact Resistance | 20mΩ max |
| Insulation Resistance | 1000MΩ min |
| Temperature Range | -25°C to +85°C |
| Dielectric Withsatnding | 1000V AC/Minute |
| Crimp Terminal Wire Size | 22-28 AWG |
| Insulation O.D | 1.90mm max |
Material & Finish
| Crimp Contact | Copper Alloy, Tin Plated |
|---|---|
| Round Pin | Copper Alloy, Tin Plated |
| Insulator | Nylon 66, UL 94V-0 |
