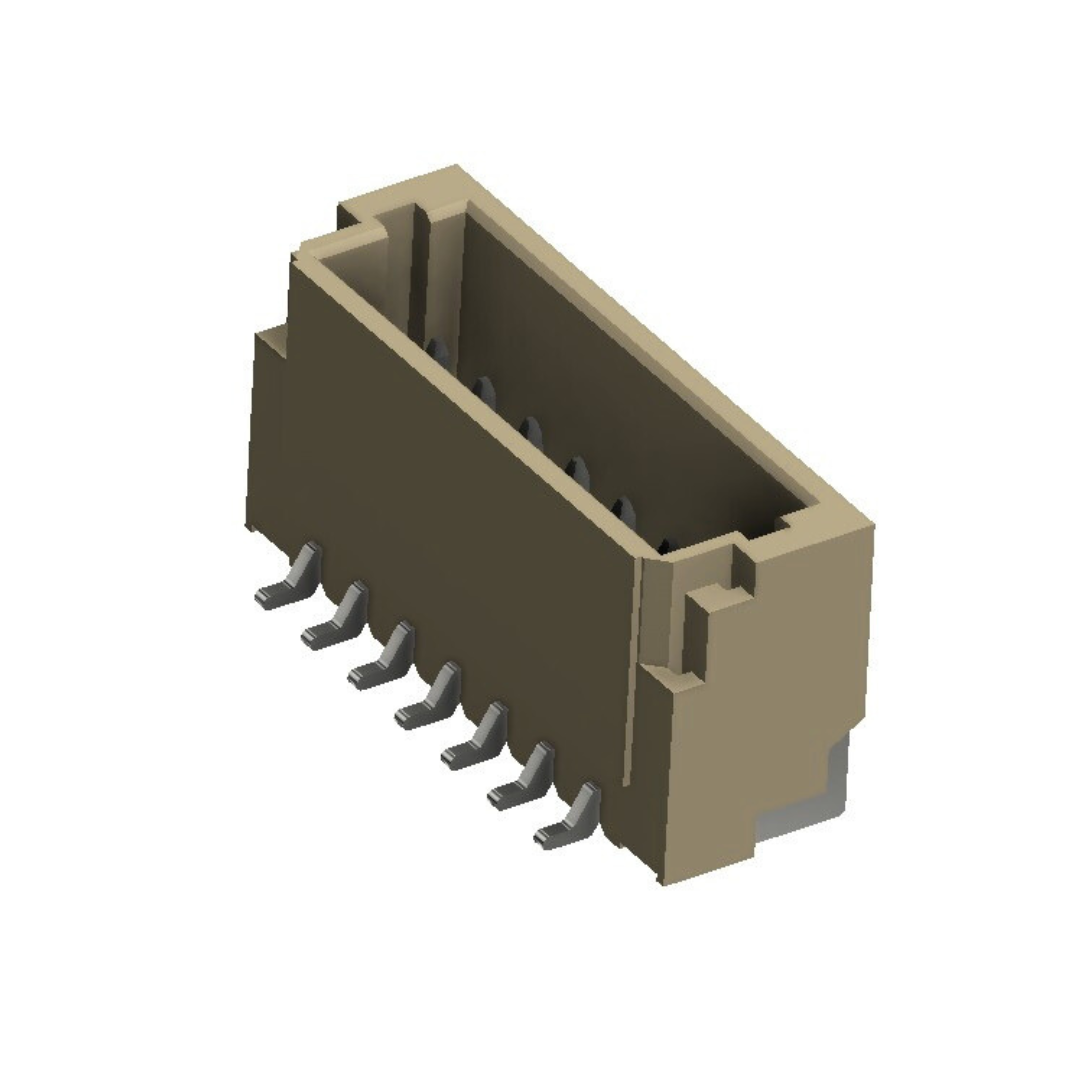

Wafer Disconnectable, Surface Mount (Straight) (P9077S9-19-X)
Description
It is a straight connector designed for board-to-wire connections with a 1.0mm pitch.
Specifications
No. of Ways |
2-20 |
|---|---|
Voltage Rating |
50V AC,DC |
Current Rating |
1A AC,DC |
Contact Resistance |
20mΩ max |
Insulation Resistance |
500MΩ min |
Temperature Range |
-25°C to +85°C |
Dielectric Withsatnding |
500V AC/Minute |
Crimp Terminal Wire Size |
28-32 AWG |
Insulation O.D |
0.80mm max |
Material & Finish
| Crimp Contact | Copper Alloy, Tin Plated |
|---|---|
| Square Pin | Copper Alloy, Tin Plated |
| Insulator | Nylon 6T, UL94V-0 |
Part No
P9077S9-19-X
