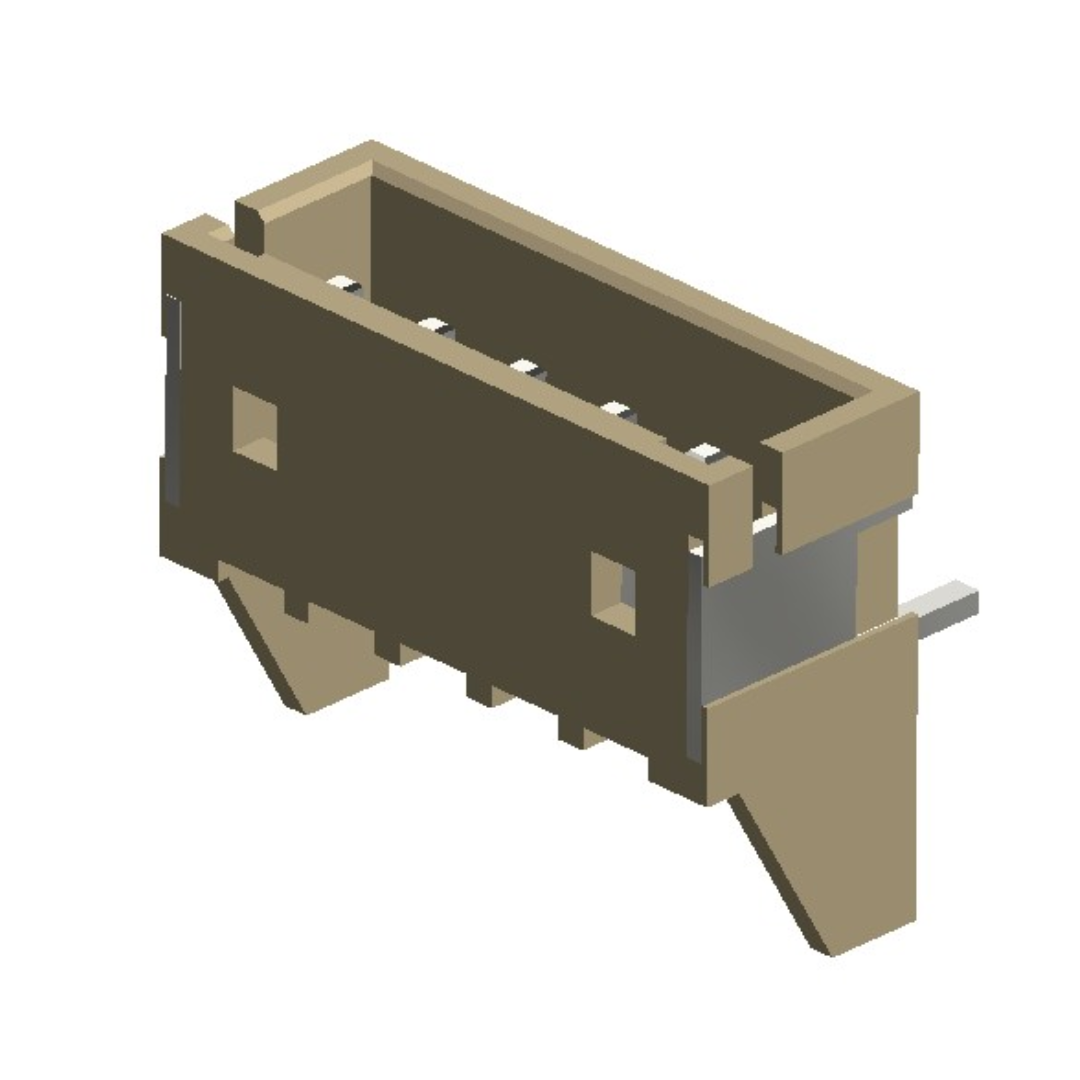

Wafer, Disconnectable, Surface Mount (Straight) (P9058M29-12-X)
Description
Wafer, Disconnectable, Surface Mount (Straight), designed for efficient and compact board-to-wire connections.
Specifications
| No. of Ways | 2-13 |
|---|---|
| Voltage Rating | 100V AC,DC |
| Current Rating | 1A AC,DC |
| Contact Resistance | 20mΩ max |
| Insulation Resistance | 500MΩ min |
| Temperature Range | -25°C to +85°C |
| Dielectric Withsatnding | 500V AC/Minute |
| Crimp Terminal Wire Size | 26-32 AWG |
| Insulation O.D | 1.10mm max |
Material & Finish
| Crimp Contact | Copper Alloy, Tin Plated |
|---|---|
| Round Pin | Copper Alloy, Tin Plated |
| Insulator | Nylon 66 , UL94V-0 |
Part No
P9058M29-12-X
