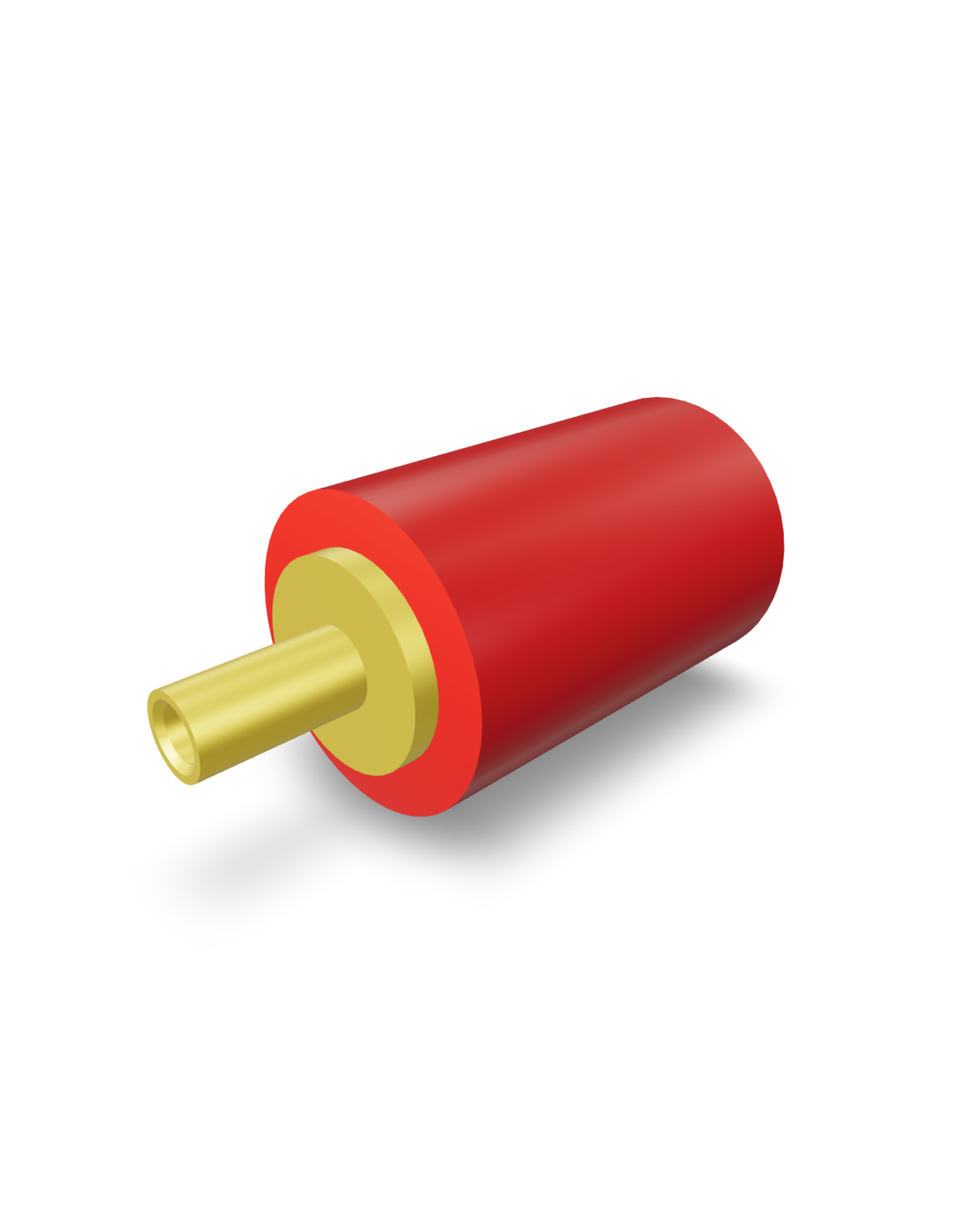

Vertical Ø2.03mm without Knurling(P8022)
Description
The P8022 is a vertical component with a diameter of 2.03mm, designed without knurling for applications where a smooth surface is preferred.
Specifications
| Voltage Rating | 600V |
|---|---|
| Current Rating | 4A max |
| Contact Resistance | 5mΩ max |
| Insulation Resistance | 10000MΩ min |
| Dielectric Withstanding | 2500V rms |
| Temperature Range | -40°C to +85°C |
| Insertion Force | 2.2kg max |
| Extraction Force | 0.18kg min |
Material & Finish
| Contact | Phosphor Bronze,Silver/Gold Plated |
|---|---|
| Insulator | Glass Filled Nylon |
Part No
| Colour | Part Number, Tail Length=2.54mm | |
|---|---|---|
| Silver Plated | Gold Plated | |
| Black | P8022-20-21-0 | P8022-20-22-0 |
| Red | P8022-22-21-0 | P8022-22-22-0 |
| Green | P8022-25-21-0 | P8022-25-22-0 |
| Colour | Part Number, Tail Length=4.5mm | |
|---|---|---|
| Silver Plated | Gold Plated | |
| Black | P8022-20-21-L | P8022-20-22-L |
| Red | P8022-22-21-L | P8022-22-22-L |
| Green | P8022-25-21-L | P8022-25-22-L |
