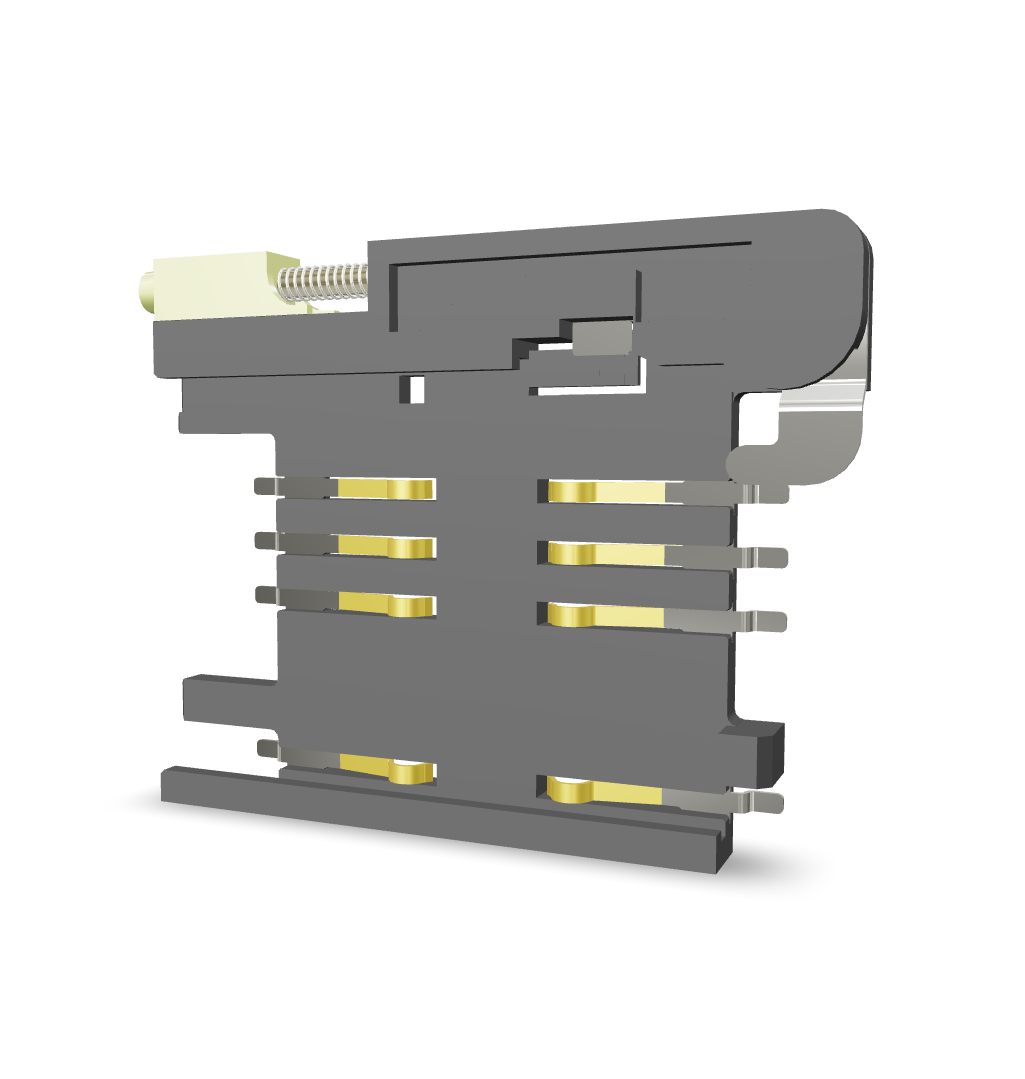

Sim Card Holder Low Profile (Pitch: End-End=27.20mm) PSMIC2
Description
The PSMIC2 is a low-profile SIM card holder with an end-to-end pitch of 27.20mm, designed for space-efficient SIM card integration.
Specification
Mechanical Life: |
5000 Cycles Min |
Material and Finish
Body: |
PPS, UL 94V-0, Black Color |
Cover: |
LCP, UL 94V-0, Black Color |
Contact: |
See Table |
Color: |
Black Color |
Packaging Type: |
Bulk Packing |
Electrical Characteristics
Current Rating: |
0.5A |
Insulation Resistance: |
1000M OHMS Min.at 500V AC |
Dielectric withstanding: |
500V AC R.M.S For One Minute |
Contact Resistance: |
30m OHMS Max |
Part No
PSIMC2-06-CX-6
