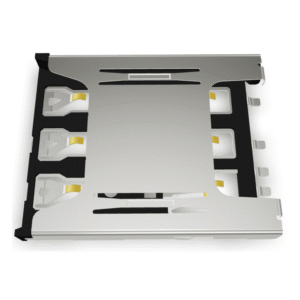

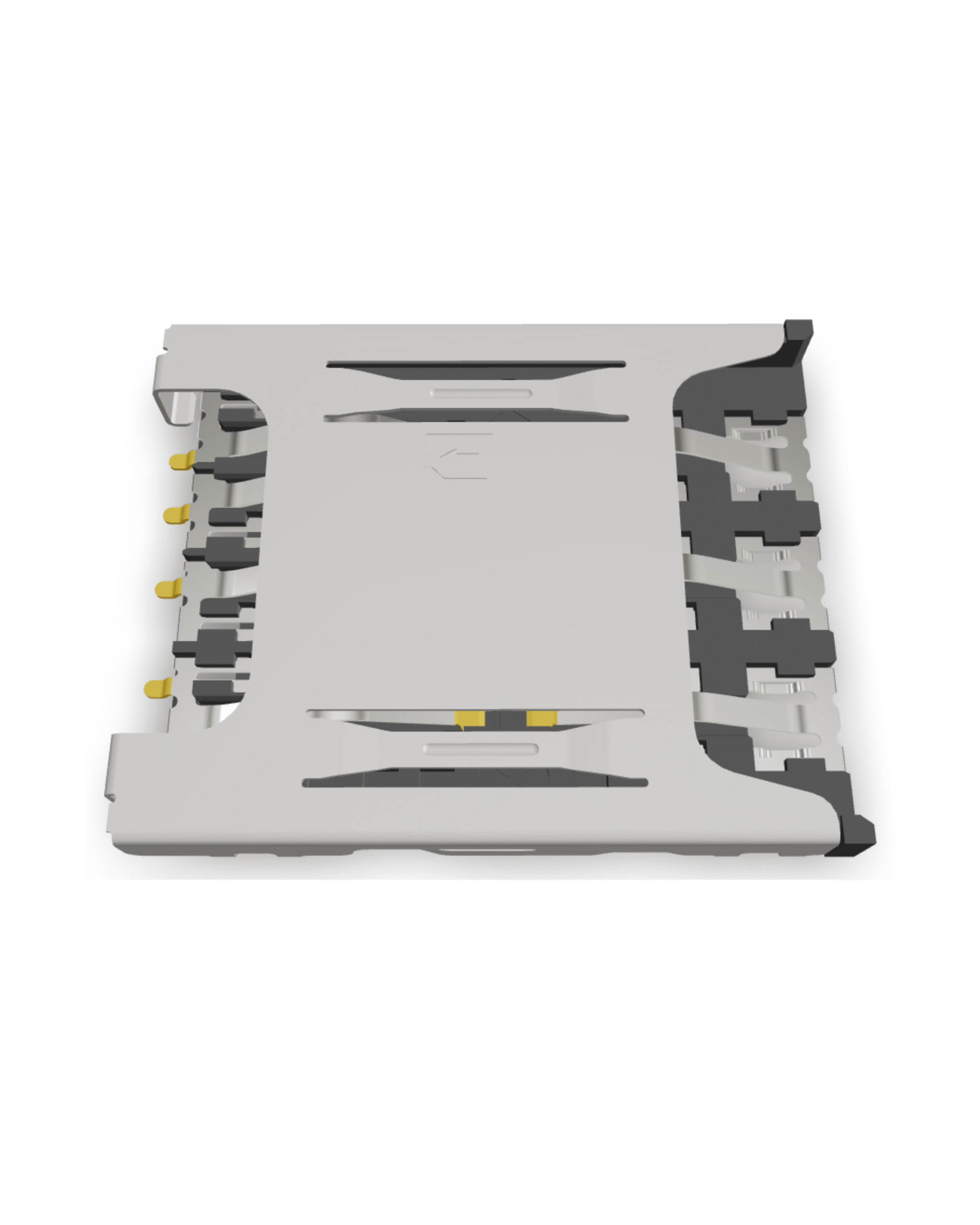

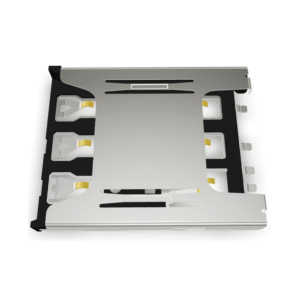

Nano Simcard Holder, With Switch Push-Pull Type, 6 Pin Gold Plated(PSIMC45-06-PPS-1B0)
Description
It is a high-precision, durable Nano SIM card holder with switch, designed for secure SIM card integration using a reliable push-pull mechanism and gold-plated contacts for stable electrical performance.
Material and Finish
Insulation
Material: |
HI-Temp, Thermoplastic |
Terminal: |
Copper Alloy |
Shell: |
SUS |
Plating
Contact: |
Plated 50μ Nickel Overall |
Shell |
Gold Flash on Contact and Solder areaPlated 30μ Ni Underplated overall |
Electrical Characteristics
Current Rating: |
0.5A AC/DC |
Insulation Resistance: |
100M OHMS Min |
Voltage Rating: |
30V AC/DC |
Contact Resistance: |
100m OHMS Max |
Withstanding Voltage |
500V DC for 1 Min |
Environment Data
Temperature range : |
-40°C to +85°C |
Ambient humidity range : |
80% R.H max |
Part No
PSIMC45-06-PPS-1B0
