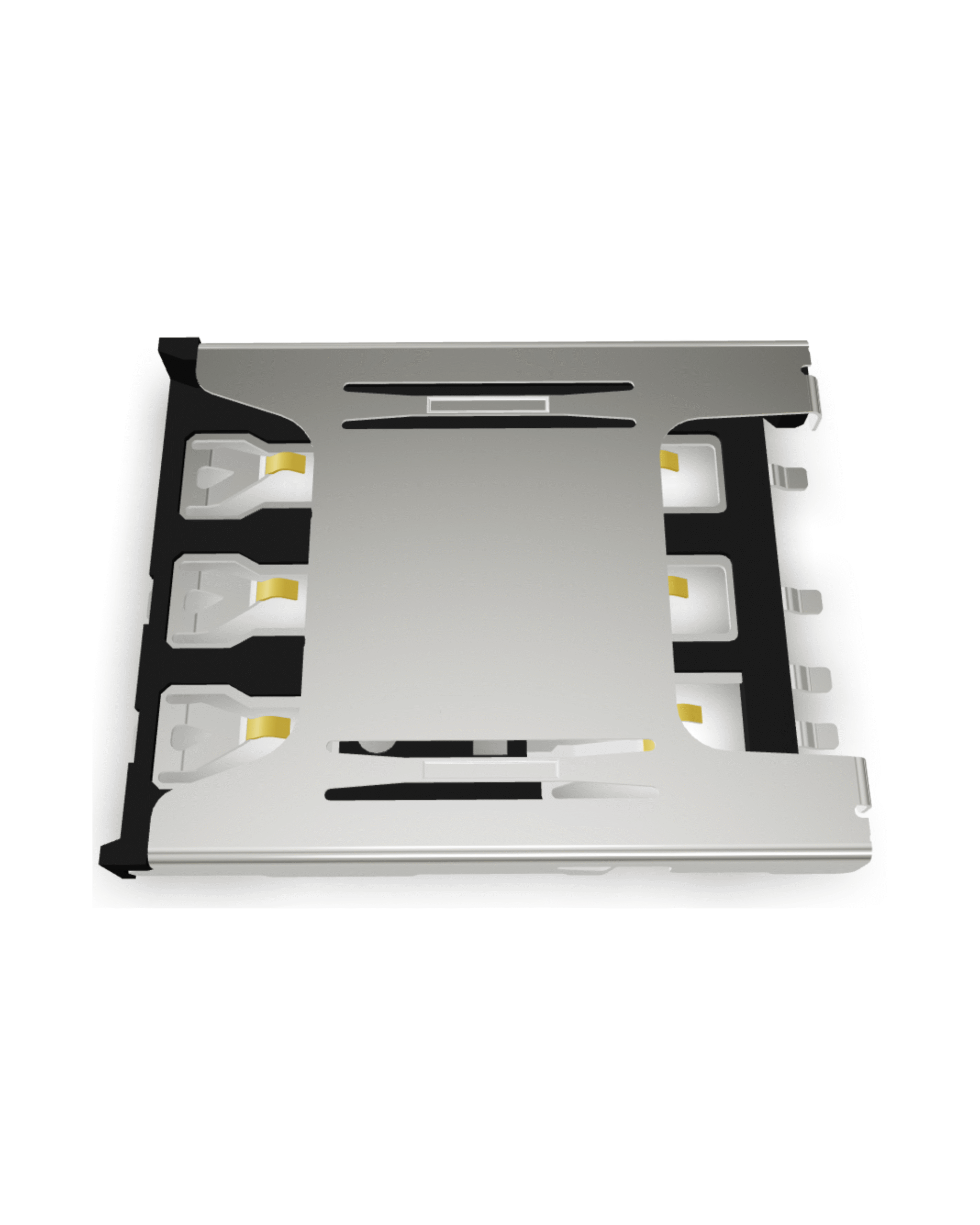

Nano Sim card Holder, With Push-Pull Type 6 Pin Gold Plated(PSIMC45-06-PPS-1A0)
Description
It is a reliable nano SIM card connector featuring a push-pull design and 6 gold-plated pins for secure SIM card mounting in electronic devices.
Material and Finish
Insulation
Material: |
HI-Temp, Thermoplastic |
Terminal: |
Copper Alloy |
Shell: |
SUS |
Plating
Contact: |
1μ Gold Plating |
Shell |
Tray Packing without Cap |
Electrical Characteristics
Current Rating: |
0.5A AC/DC |
Insulation Resistance: |
100M OHMS Min |
Voltage Rating: |
30V AC/DC |
Contact Resistance: |
100m OHMS Max |
Withstanding Voltage |
500V DC for 1 Min |
Mechanical Data
Durability : |
5000 cycles |
Mating force : |
10 N max |
Unmating force : |
0.5 N min |
Coplanarity : |
Before IR 0.08 mm max
|
Environment Data
Temperature range : |
-40°C to +85°C |
Soldering temperature : |
250±5°C, 10 sec |
Ambient humidity range : |
80% R.H max |
Coplanarity: |
Before IR 0.08 mm max
|
Part No
PSIMC45-06-PPS-1A0
