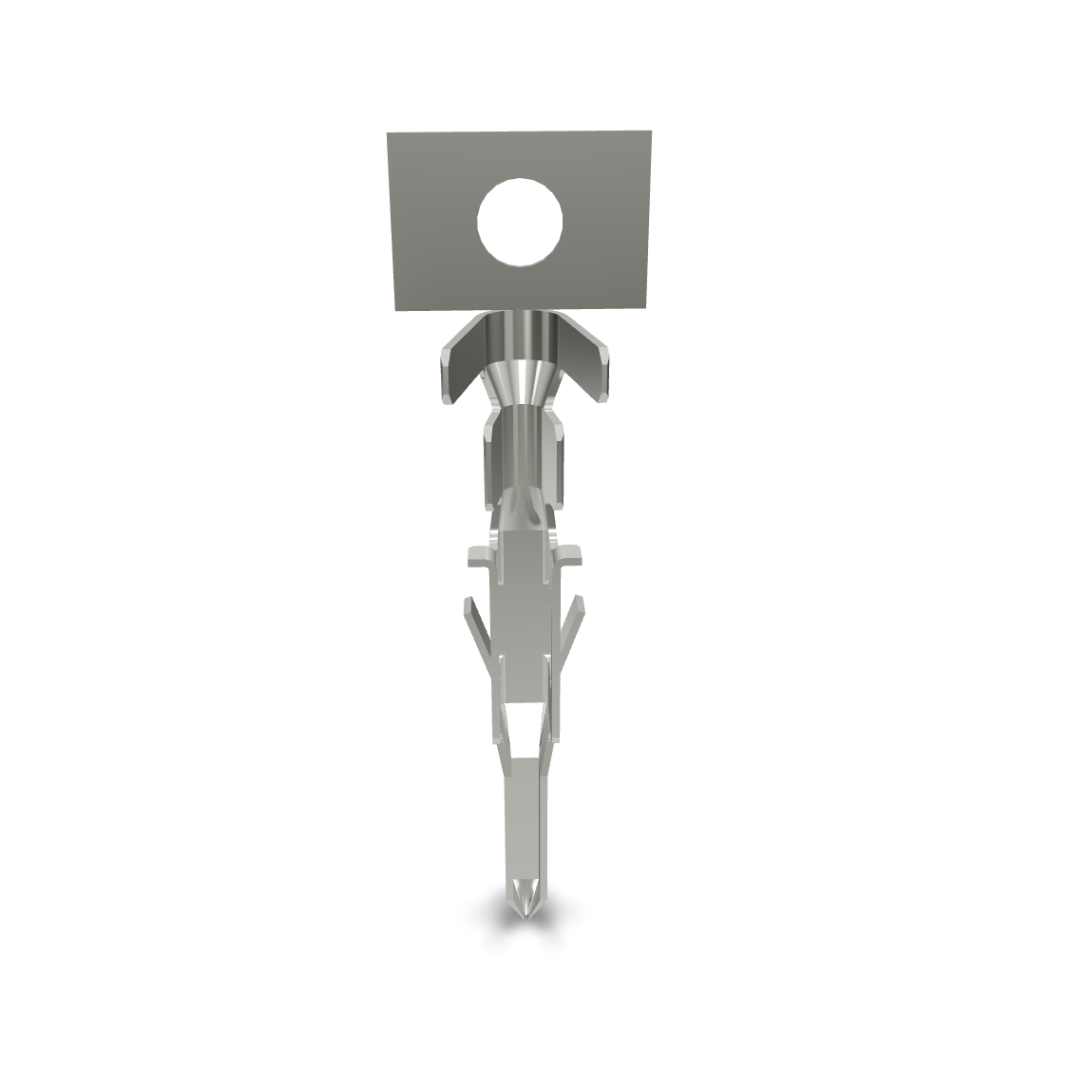

Plug Crimp Terminal P9066PT

Description

P9066PT

Specifications

No. of Ways 2-24
Voltage Rating 250V AC,DC
Current Rating 5A AC,DC
Contact Resistance 10mΩ max
Insulation Resistance 1000MΩ min
Temperature Range -25°C to +85°C
Dielectric Withsatnding 1500V AC/Minute
Crimp Terminal Wire Size 20-24 AWG
Insulation O.D 1.85mm max

Material & Finish

Crimp Contact Copper Alloy, Tin Plated
Square Pin Copper Alloy, Tin Plated
Insulator PBT 30% GF , UL 94V-0
