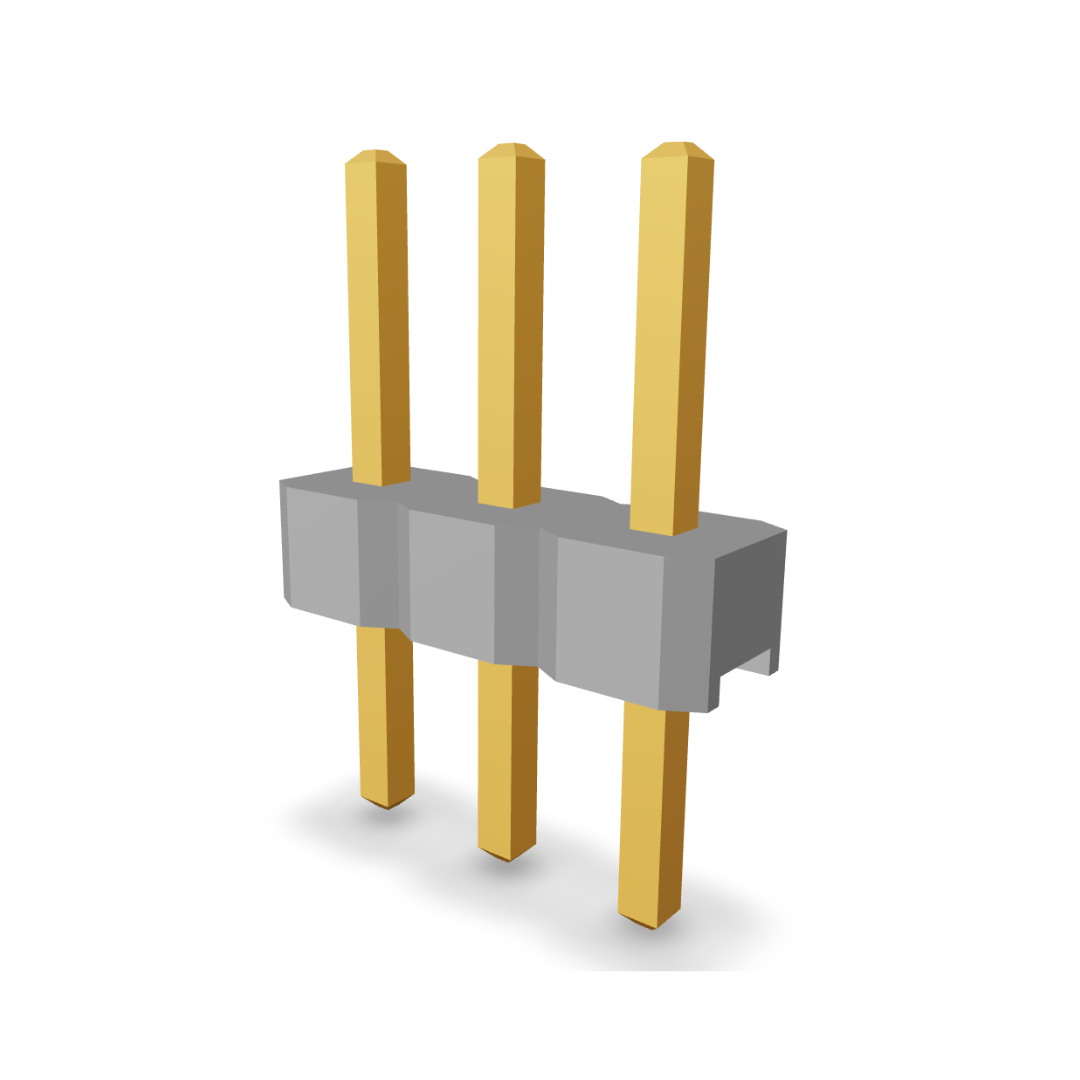

Pin Header, Single Row(Straight) P9111A
Description
It is a 2.00mm pitch connector used for board-to-wire connections in electronic devices.
Specifications
Material: |
Polyester |
Flammability: |
UL94V-0 |
Color: |
Black |
Electrical Characteristics
Current Rating: |
1A |
Insulation Resistance: |
500M OHMS Min |
Dielectric withstanding: |
500V AC |
Mechanical Data
Pin Retention Force: |
8N Average(0.8kg) |
Environmental Data
Temperature Range: |
-40 C to +150 C |
Process Rating: |
180 C for 5 Sec |
Part No
P9111AXX-X-1
