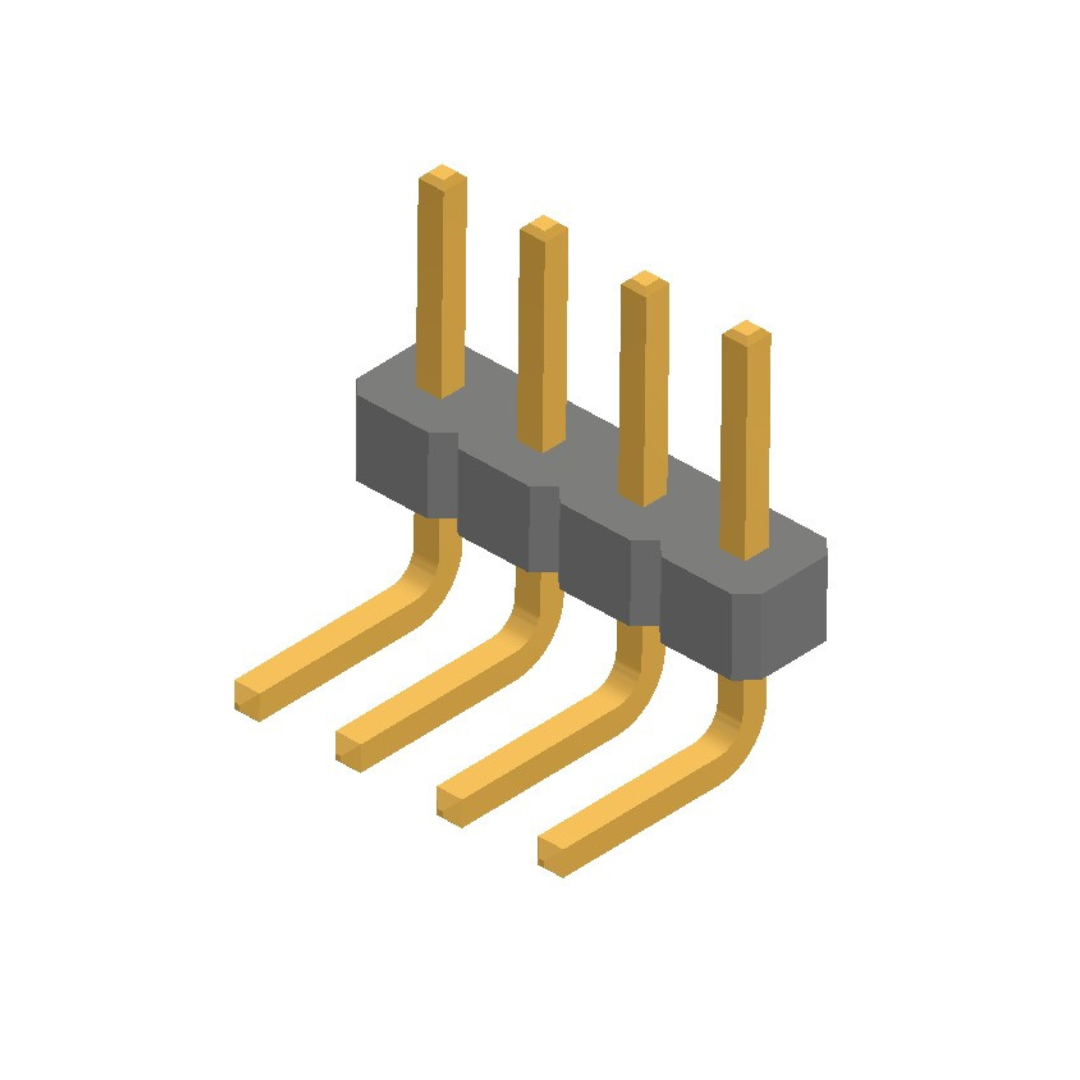

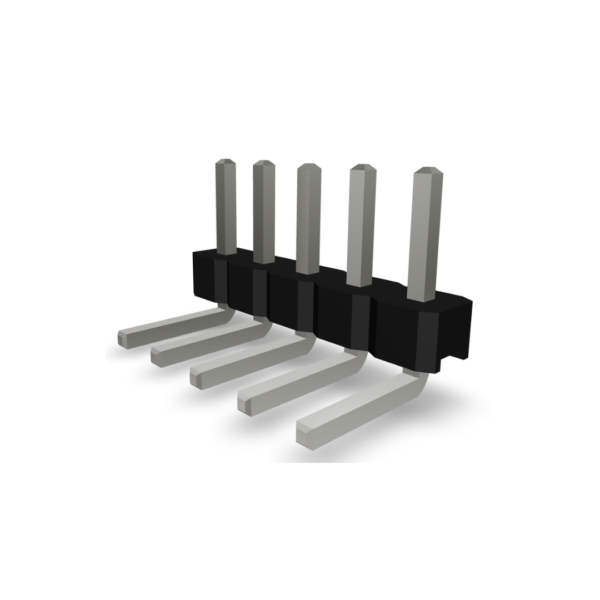

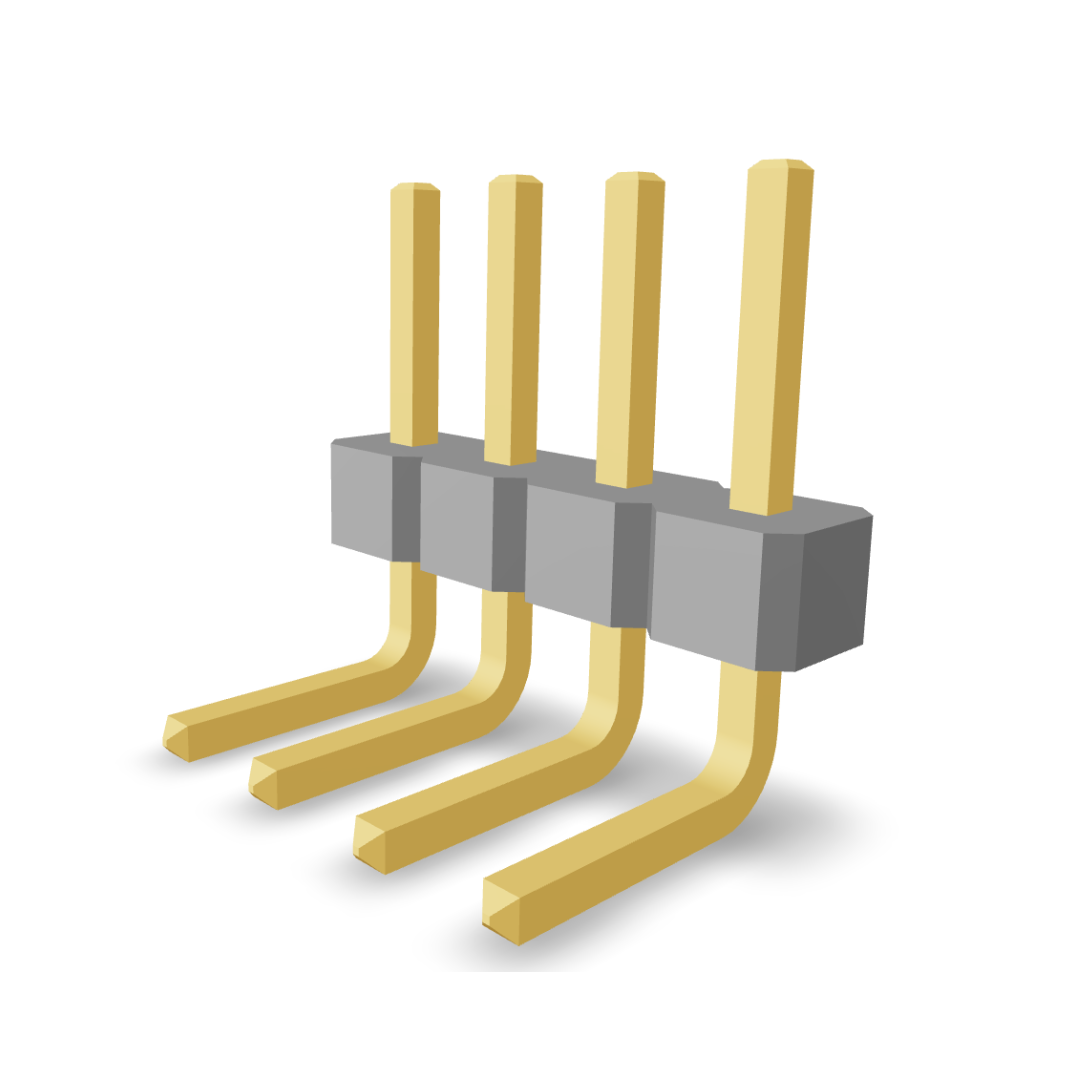

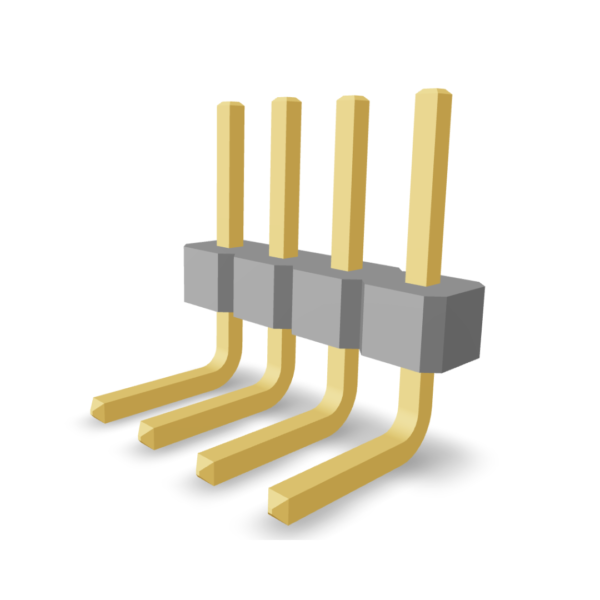

Pin Header, Single Row(Right Angle) P9112A
Description
It is a 2.00mm pitch connector used for board-to-wire connections in electronic devices.
Specifications
No. of Ways | 2-40(Single Row) 4-80(Double Row) |
---|---|
Voltage Rating | 125V AC/DC |
Current Rating | 1A AC/DC |
Contact Resistance | 20mΩ Max |
Insulation Resistance | 1000MΩ Min |
Dielectric Withstanding | 800V Ac/Min |
Temperature Withstanding | -25°C to +125°C |
Crimp Terminal Wire Size | 30-26AWG |
Material & Finish
Crimp Contact | Brass, Tin/Gold Plated |
---|---|
Square Pin | Copper Alloy, Gold Plated |
Insulator | PBT , UL94V-0 |
