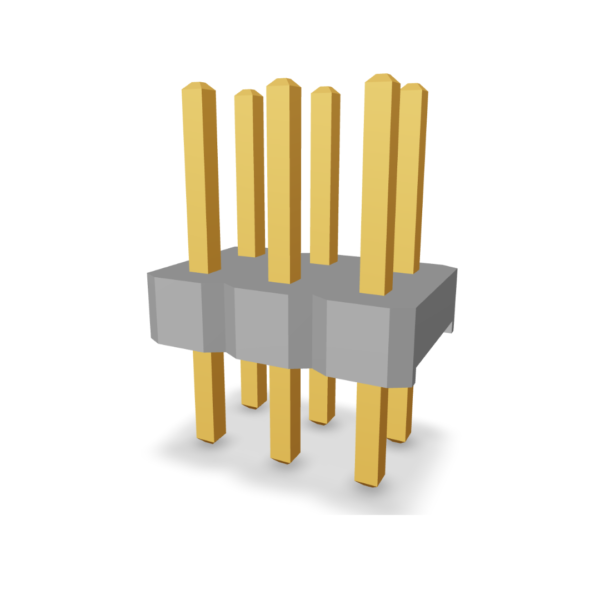

Pin Header, Double Row (Straight) (P9113AXX-XX-1)
Description
It is a 2.00mm pitch connector used for board-to-wire connections in electronic devices.
Material and Finish
Insulation
Material: |
Polyester |
Flammability: |
UL94V-0 |
Contact
Material: |
Copper Alloy |
Finish: |
Gold Plated |
Packaging Type: |
Standard |
Electrical Characteristics
Current Rating: |
1A |
Insulation Resistance: |
5000M OHMS Min |
Die Electric Withstand: |
500V AC/Min |
Mechanical Data
Pin Retention Force: |
0.5KG Min |
Part No
P9113AXX-XX-1
