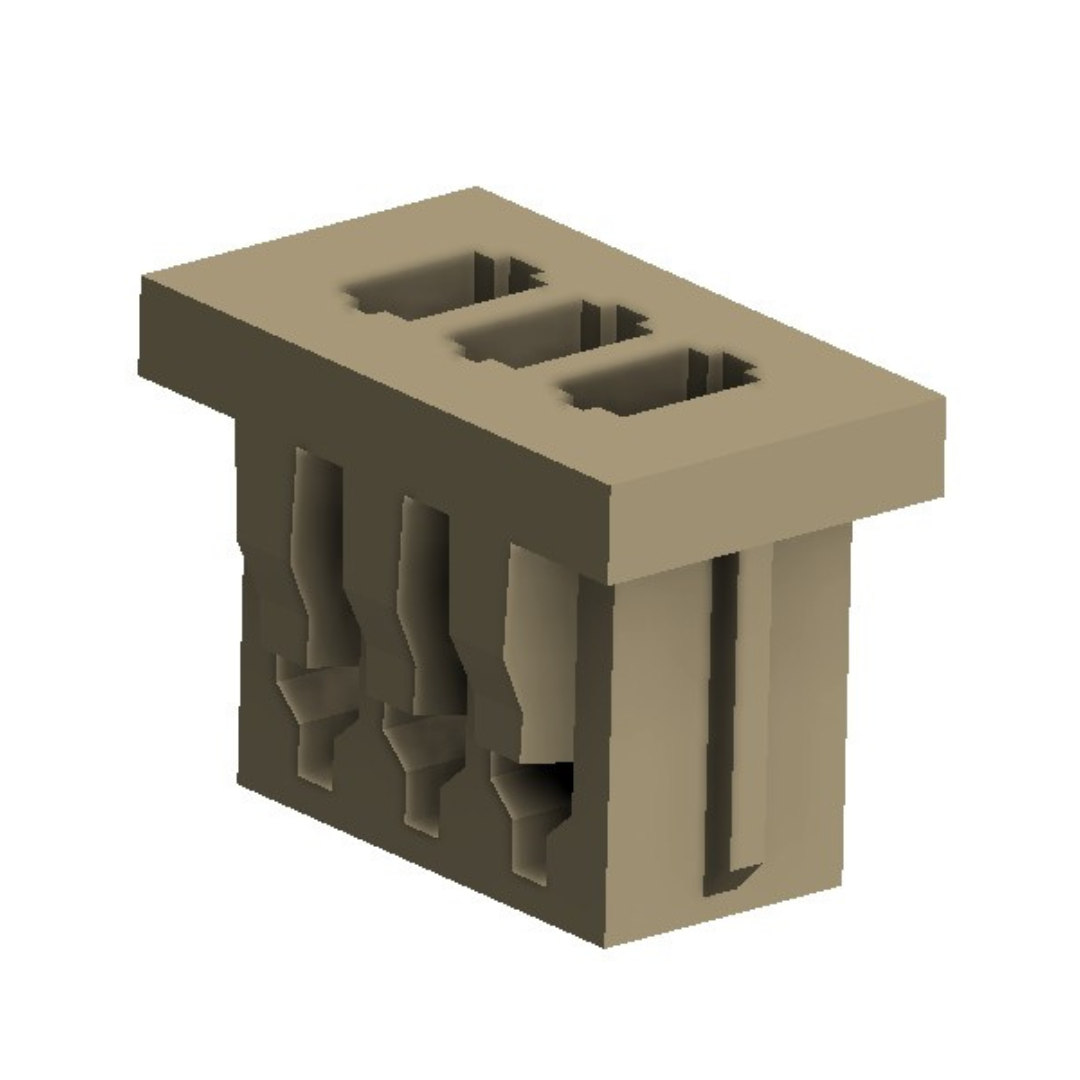

Housing (P9056H29-00-X)
Description
The Housing is a 1.25mm pitch disconnectable connector used in board-to-wire connections.
Specifications
| No. of Ways | 2-15 |
|---|---|
| Voltage Rating | 1000V AC,DC |
| Current Rating | 1A AC,DC |
| Contact Resistance | 20mΩ max |
| Insulation Resistance | 500MΩ min |
| Temperature Range | -25°C to +85°C |
| Dielectric Withsatnding | 500V AC/Minute |
| Crimp Terminal Wire Size | 28-32 AWG |
| Insulation O.D | 1.00mm max |
Material & Finish
| Crimp Contact | Phosphor Bronze, Tin Plated |
|---|---|
| Square Pin | Phosphor Bronze, Tin Plated |
| Insulator | Nylon , UL94V-0 |
Part No
P9056H29-00-X
