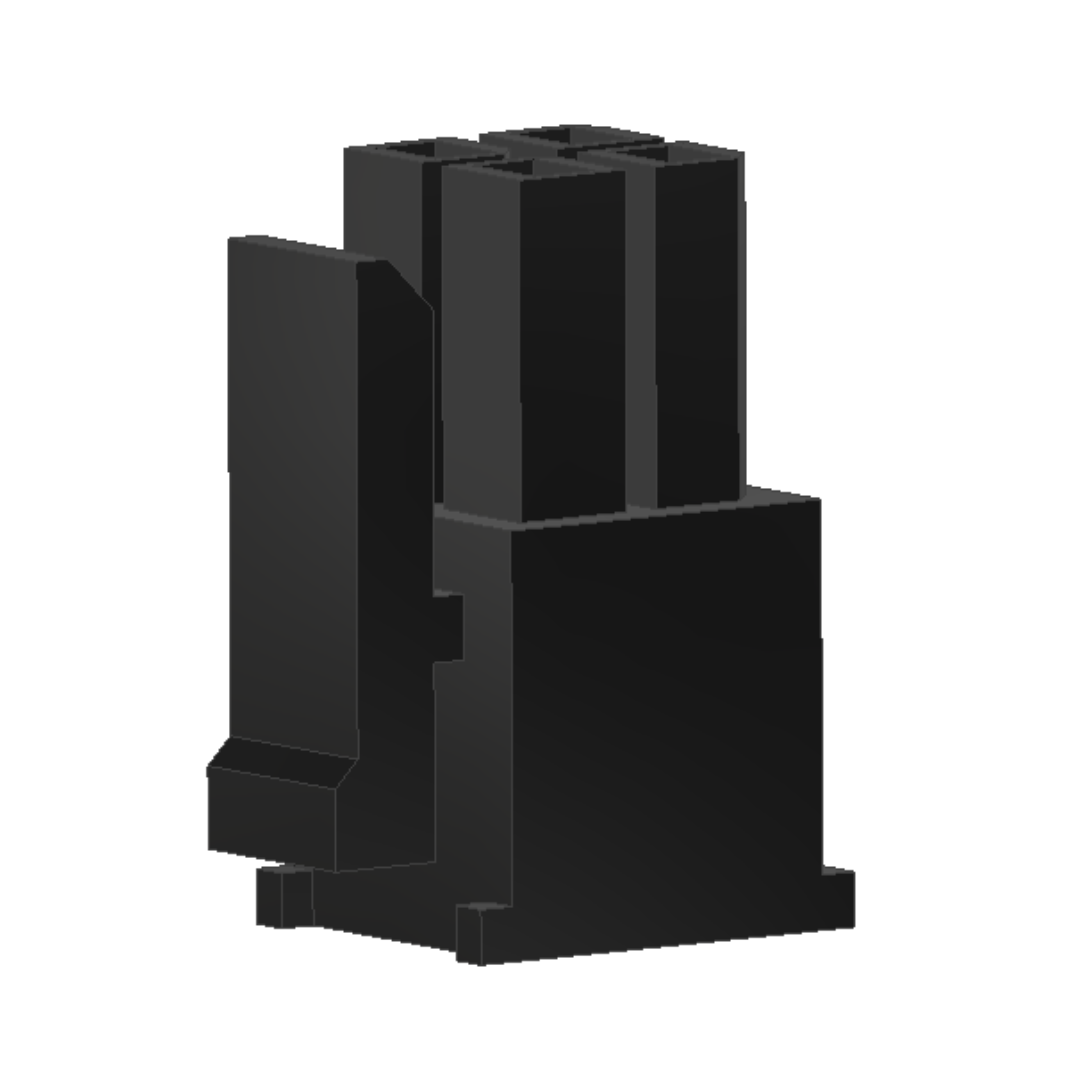

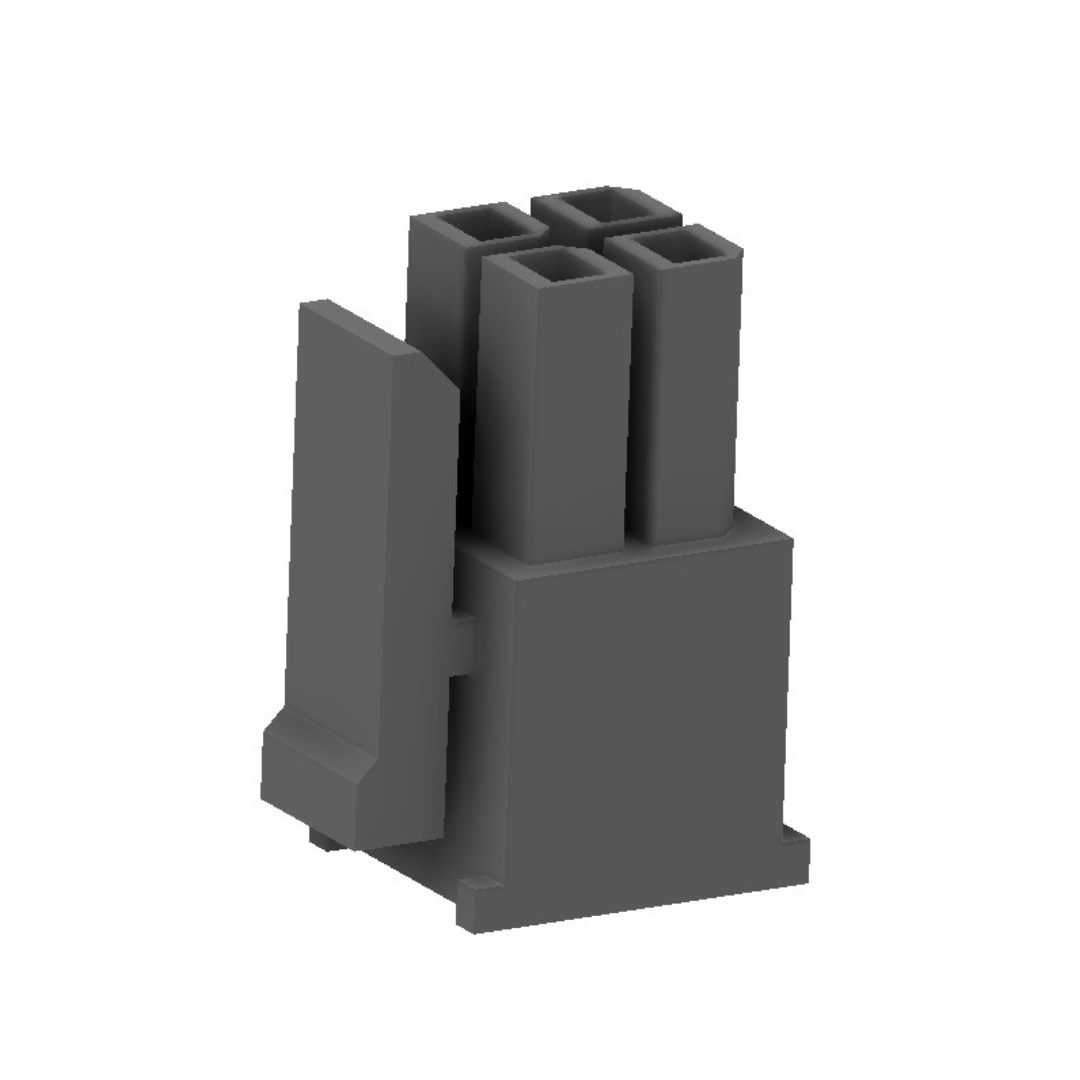

Housing, Double Row (P9066H20-00-X)
Description
The Housing, Double Row P9066H is designed for secure wire-to-board connections
Material and Finish
Insulation
Material: |
Nylon 66 |
Flammability: |
UL94V-2 |
Color: |
Natural |
Electrical Characteristics
Current Rating: |
5A AC/DC |
Insulation Resistance: |
1000M OHMS Min |
Dielectric Withstanding: |
1500V AC/minute |
Contact Resistance: |
10m OHMS Max |
Voltage Rating: |
250V AC, DC |
Part No
P9066H20-00-X
