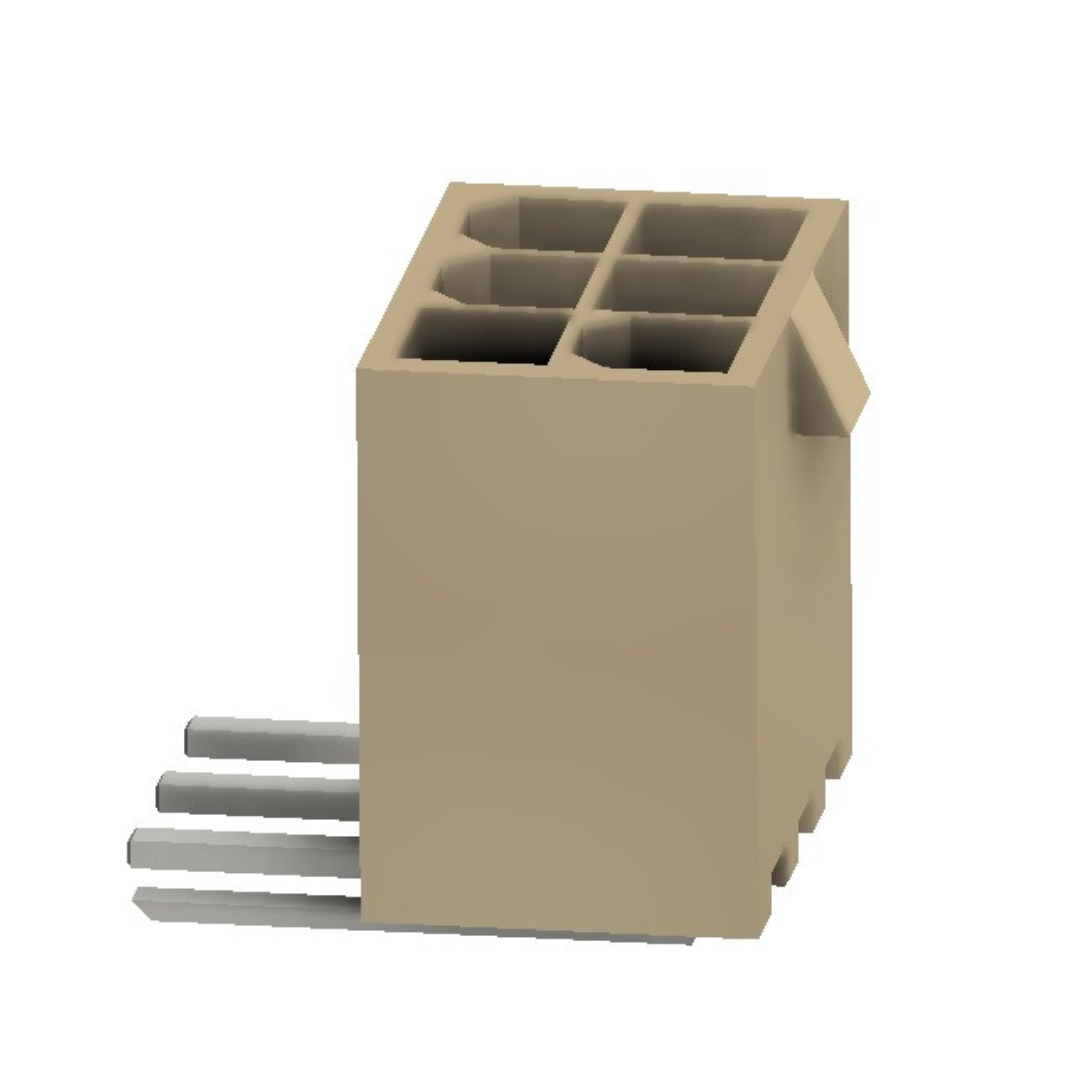

Header Double Row (Right Angle) (P9049R29-1X-X)
Description
It is a 2.54 mm pitch double-row header with right-angle orientation, commonly used for reliable connections in electronic circuits.
Download Link
” download=””>Download Link
Material and Finish
Material: |
Nylon 66 |
Flammability: |
UL94V-2 |
Color: |
Natural Color |
Contact: |
Brass, Tin / Gold Plated |
Packaging Type: |
Bulk Packing |
Electrical Characteristics
Insulation Resistance: |
1000M OHMS Min |
Dielectric withstanding: |
1500V AC/Min |
Current Rating: |
7A AC/DC |
Voltage Rating: |
250V AC/DC |
Contact Resistance: |
10m OHMS Max |
Part No
P9049R29-1X-X
