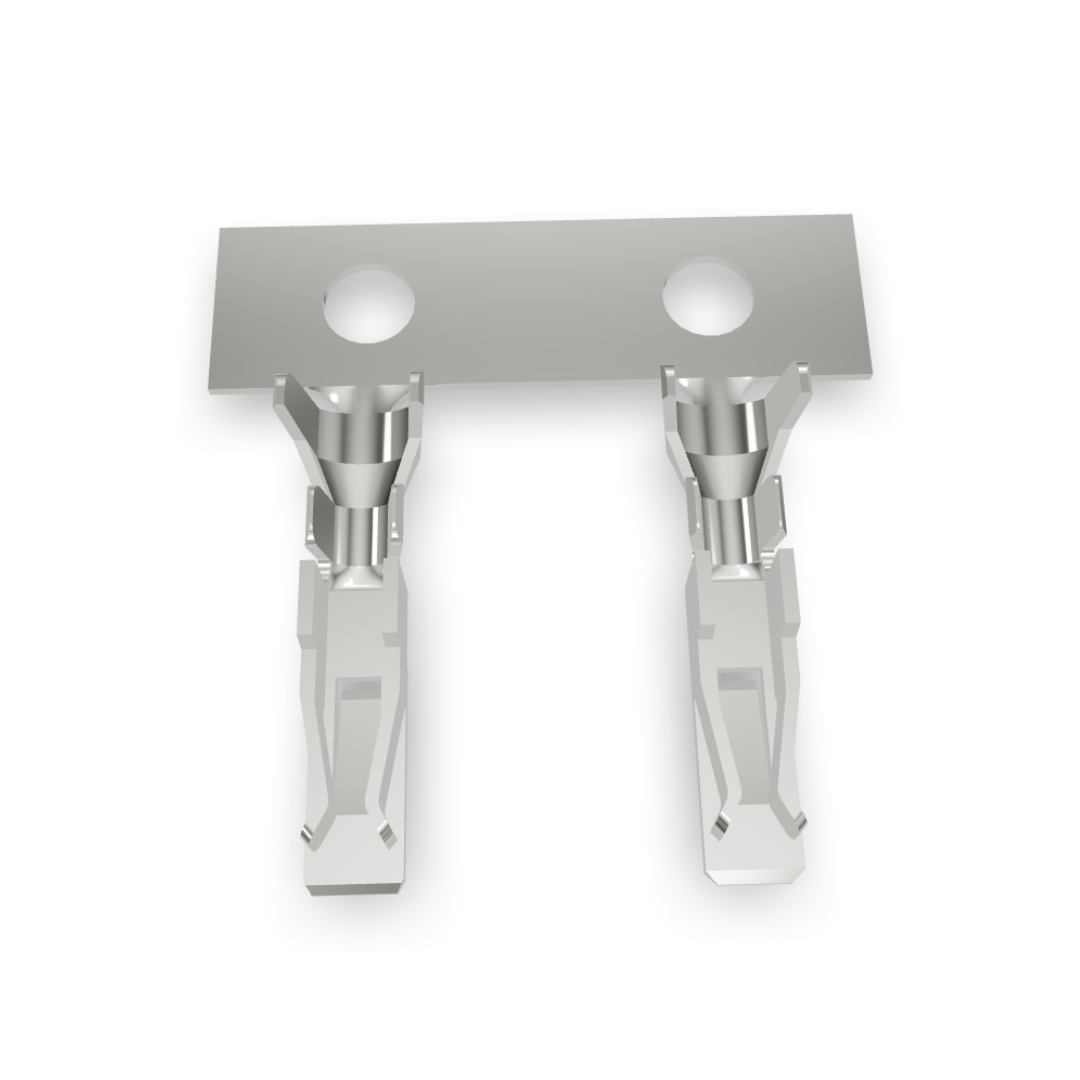

Crimp Terminal P911XT
Description
It is a 2.00mm pitch connector designed for secure board-to-wire connections
SPECIFICATIONS
| No. of Ways | 2-40 (Single Row) 4-80 (Double Row) |
|---|---|
| Voltage Rating | 125V AC/DC |
| Current Rating | 1A AC/DC |
| Contact Resistance | 20mΩ max |
| Insulation Resistance | 1000MΩ min |
| Dielectric Withstanding | 800V AC/Min |
| Temperature Range | -25ºC to +125ºC |
| Crimp Terminal Wire Size | 30-26 AWG |
MATERIAL & FINISH
| Crimp Contact | Brass, Tin/Gold Plated |
|---|---|
| Square Pin | Copper Alloy, Gold Plated |
| Insulator | PBT, UL 94V-0 |
