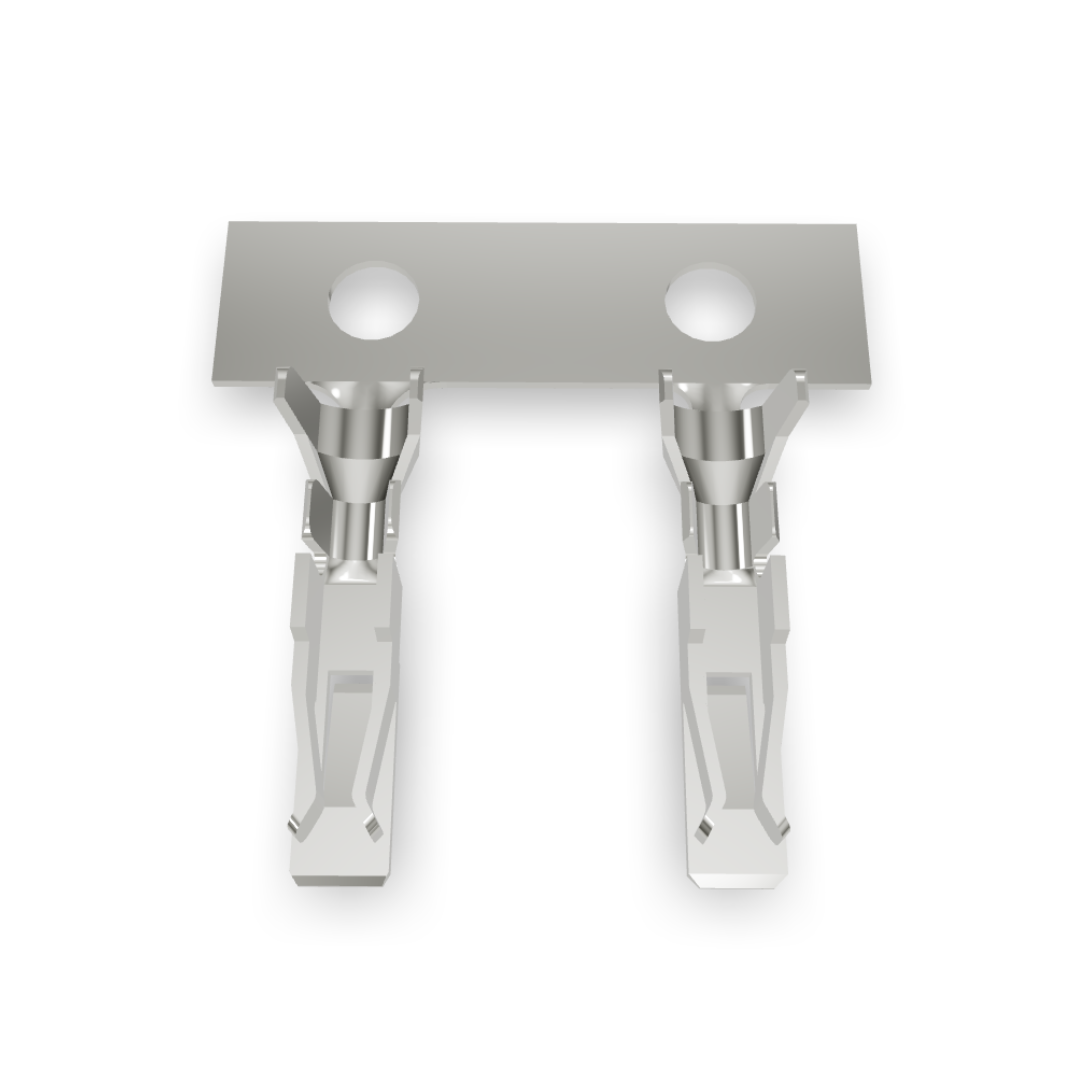

Crimp Terminal (P9077T00-29)
Description
It is a 1.0mm pitch, tin-plated connector designed for reliable electrical connections with a current rating of 1A and voltage rating of 50V AC/DC.
Specifications
| No. of Ways | 2-20 |
|---|---|
| Voltage Rating | 50V AC.DC |
| Current Rating | 1A AC, DC |
| Contact Resistance | 20mΩ max |
| Insulation Resistance | 500MΩ min |
| Temperature Range | -25ºC to +85ºC |
| Dielectric Withstanding | 500V AC/Minute |
| Crimp Terminal Wire Size | 28-32 AWG |
| Insulation O.D | 0.80mm max |
Material & Finish
| Crimp Contact | Copper Alloy, Tin Plated |
|---|---|
| Square Pin | Copper Alloy, Tin Plated |
| Insulator | Nylon 6T, UL 94V-0 |
| Finish | Part Number |
|---|---|
| Tin Plated | P9077T00-29 |
Part No
P9077T00-29
