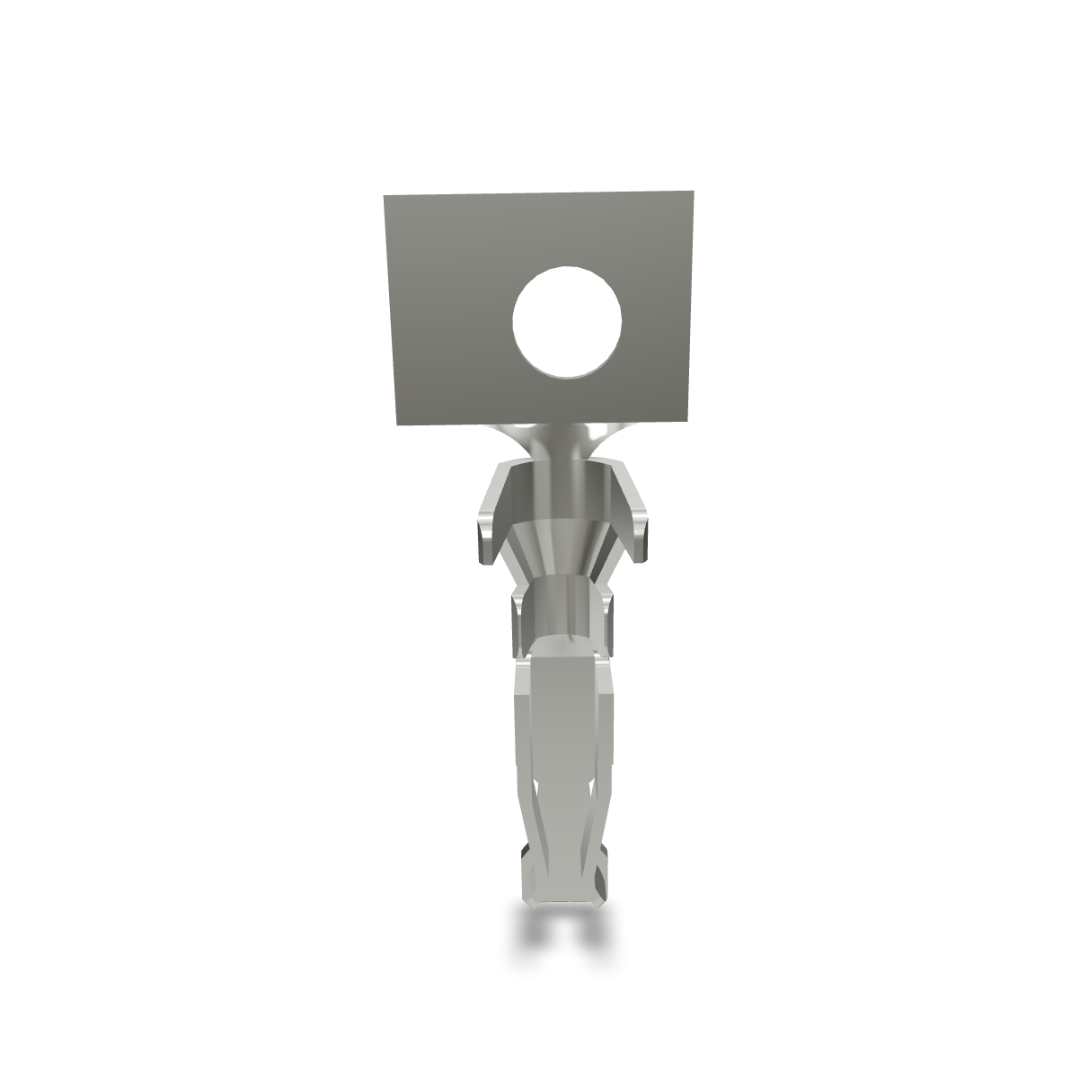

Crimp Terminal P9069T
Description
It is a versatile connector designed for 22-28 AWG wires, offering reliable electrical connections with a current rating of 3A and a voltage rating of 250V AC/DC.
Specifications
| No. of Ways | 4-40 |
|---|---|
| Voltage Rating | 250V AC, DC |
| Current Rating | 3A AC, DC |
| Contact Resistance | 10mΩ max |
| Insulation Resistance | 1000MΩ min |
| Dielectric Withstanding | 800V AC/minute |
| Temperature Range | -25ºC to +85ºC |
| Crimp Terminal Wire Size | 22-28 AWG |
| Insulation O.D | 1.50mm max |
Material & Finish
| Crimp Contact | Copper Alloy, Tin Plated |
|---|---|
| Square Pin | Copper Alloy, Tin Plated |
| Insulator | Nylon, UL 94V-0 |
Part No
| Finish | Part Number |
|---|---|
| Tin Plated | P9069T00-29 |
