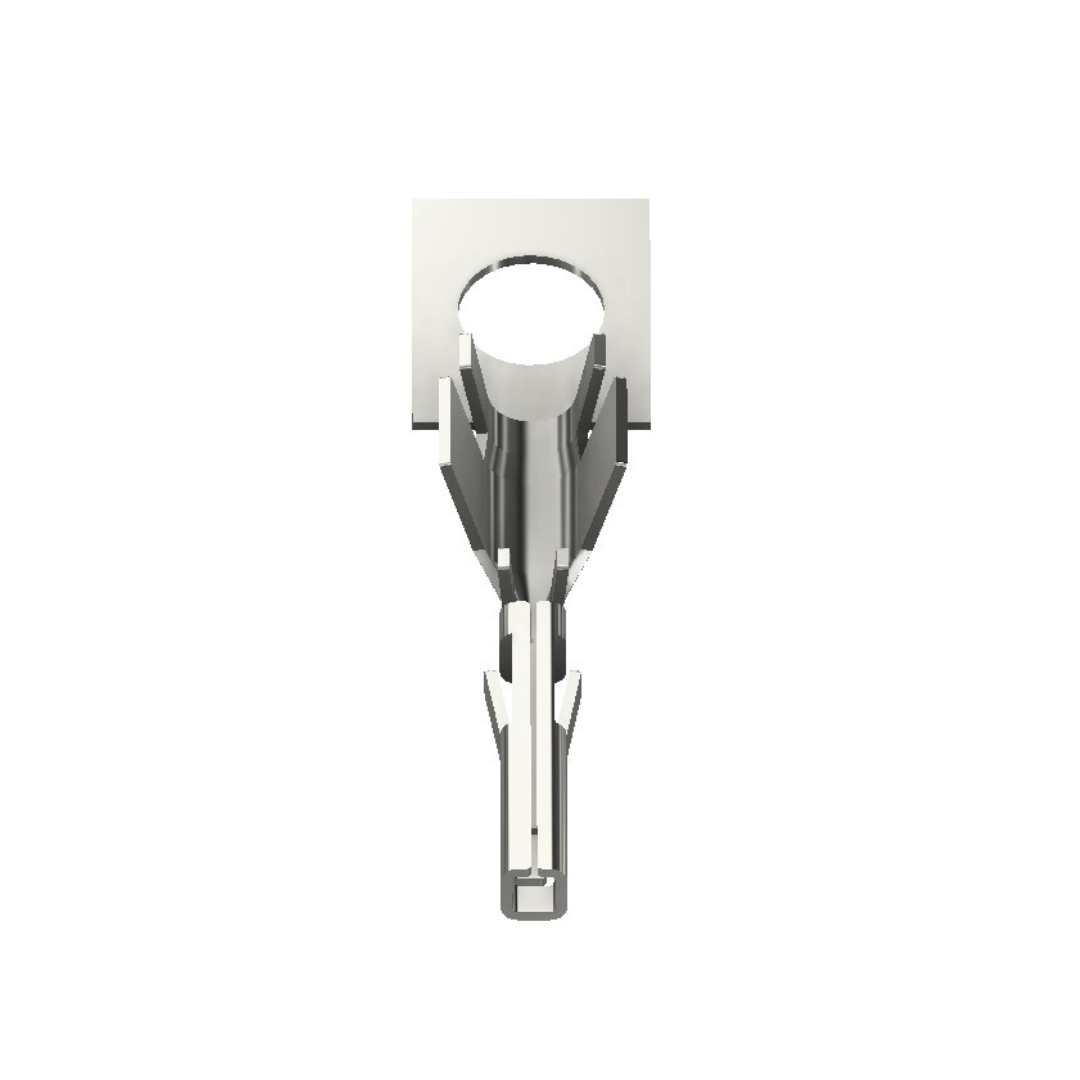

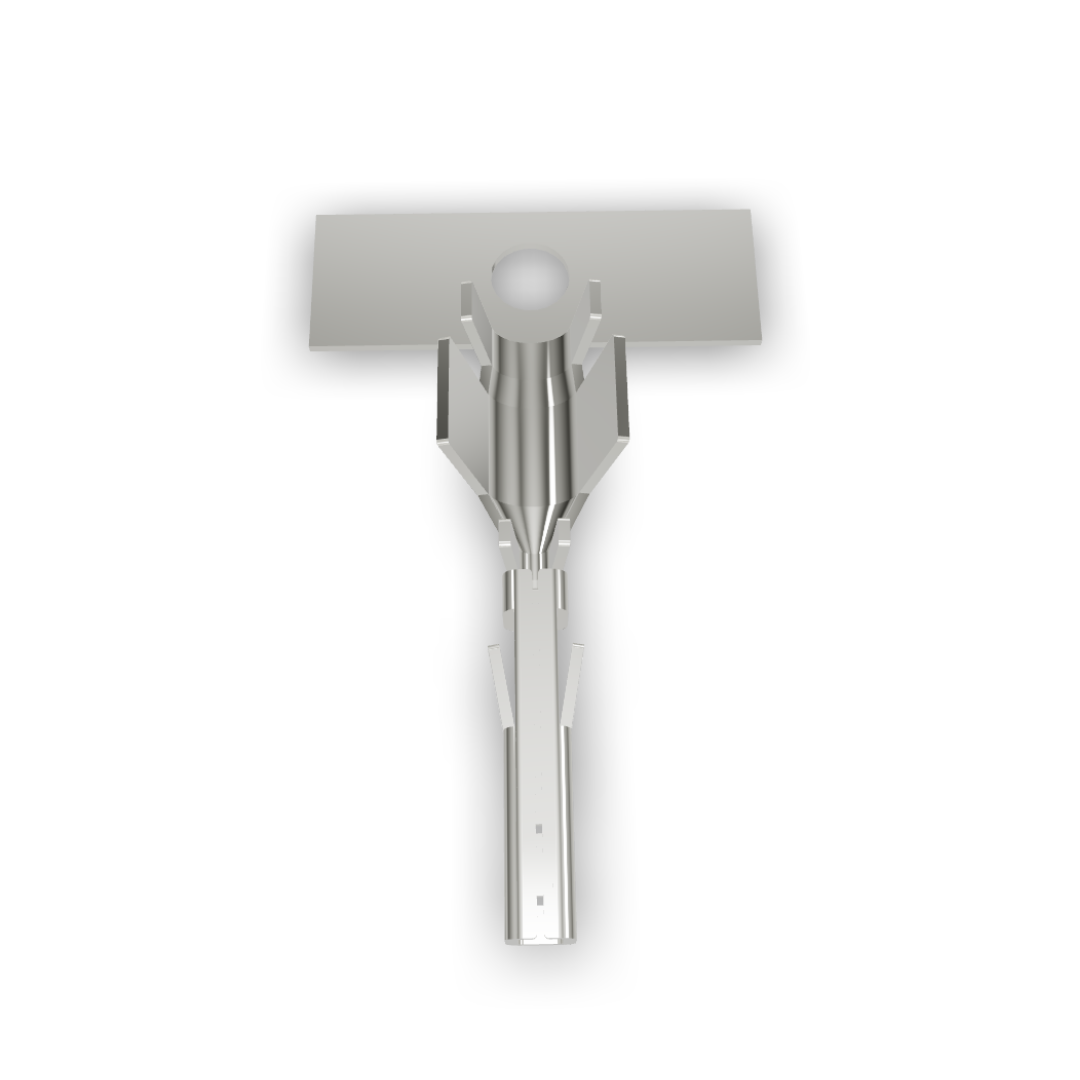

Crimp Terminal P9066T
Description
It is a reliable and efficient terminal designed for secure and durable electrical connections.
Specifications
| No. of Ways | 2-24 |
|---|---|
| Voltage Rating | 250V AC,DC |
| Current Rating | 5A AC,DC |
| Contact Resistance | 10mΩ max |
| Insulation Resistance | 1000MΩ min |
| Temperature Range | -25°C to +85°C |
| Dielectric Withsatnding | 1500V AC/Minute |
| Crimp Terminal Wire Size | 20-24 AWG |
| Insulation O.D | 1.85mm max |
Material & Finish
| Crimp Contact | Copper Alloy, Tin Plated |
|---|---|
| Square Pin | Copper Alloy, Tin Plated |
| Insulator | PBT 30% GF , UL 94V-0 |
