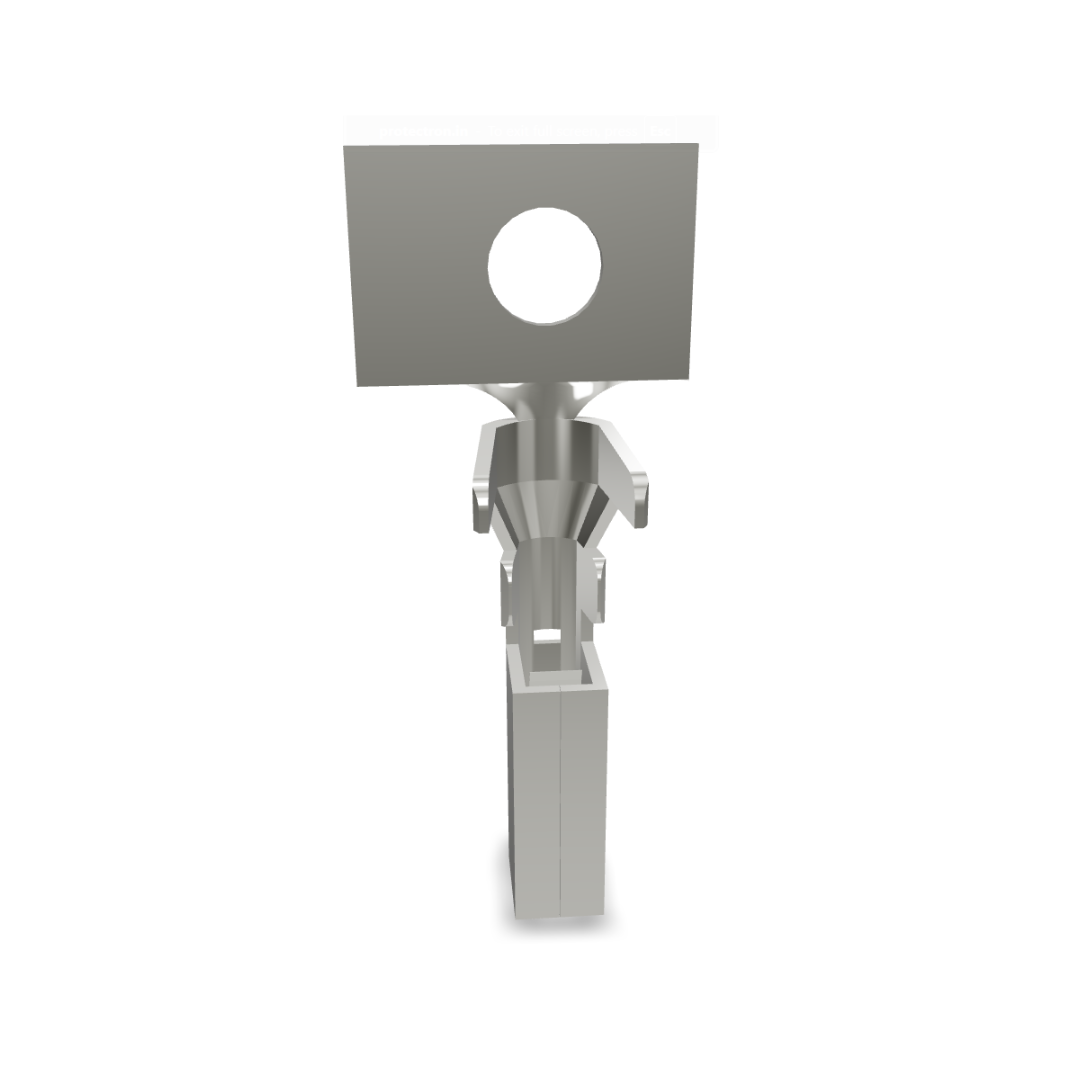

Crimp Terminal (P9046-00-2X)
Description
It is a 3.96 mm pitch polarized connector designed for secure board-to-wire connections. It will ensure reliable performance in various electronic applications.
Material and Finish
Insulation
Material: |
Phosphor Bronze |
Finish: |
Refer ordering information |
Packaging Type: |
3000 pcs / reel |
Electrical Characteristics
Current Rating: |
7A |
Insulation Resistance: |
1000M Min |
Contact Resistance: |
20m Max |
Rated Voltage: |
250V AC/DC |
Dielectric withstanding: |
1500V AC/Min |
Features
Applicable Wire: |
18-22 AWG |
Insulation 0D |
1.60 ~2.10mm |
Part No
P9046-00-2X
