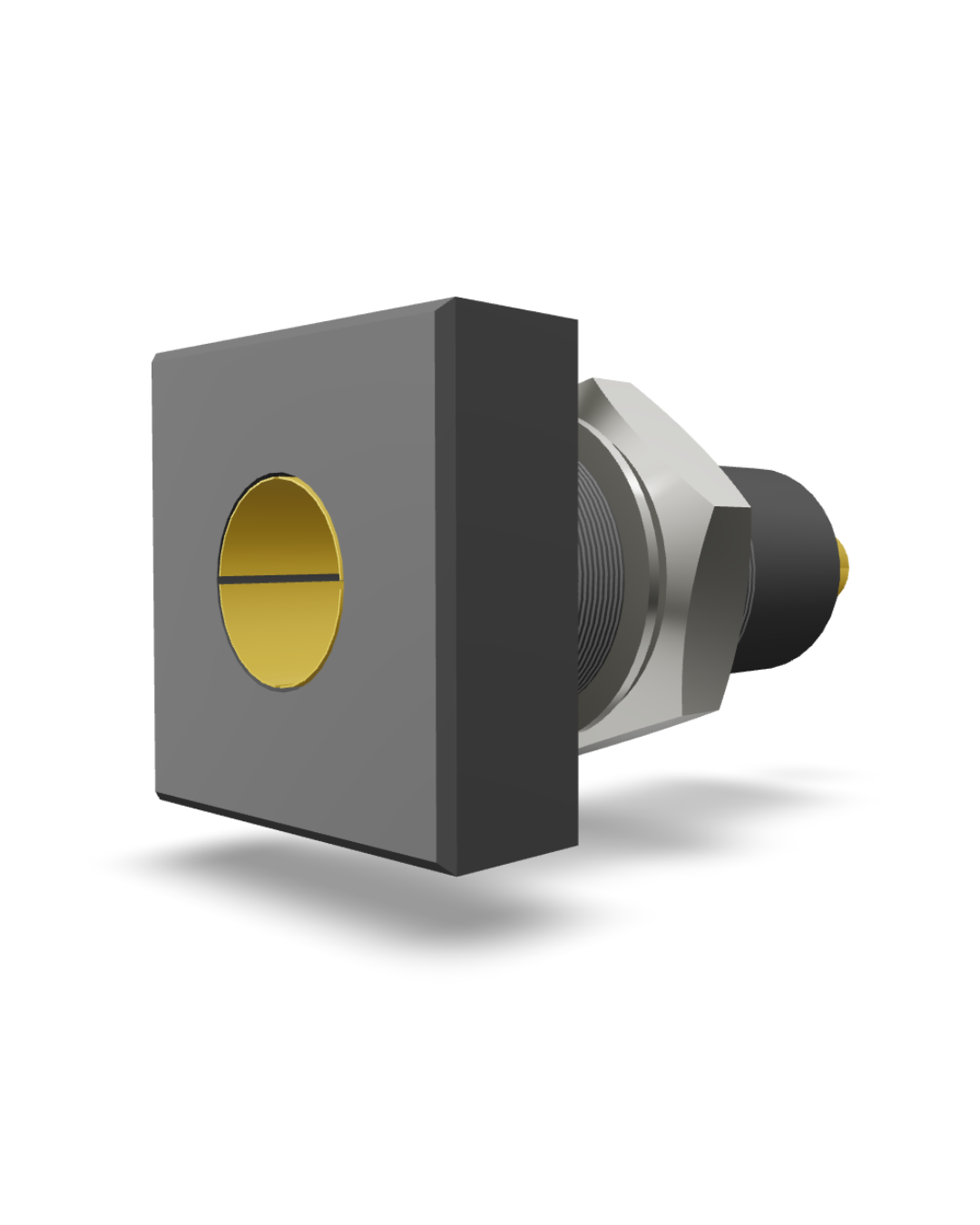

4mm Panel Mounting Single Contact(P8023)
Description
Its robust construction and precise engineering ensure a secure and reliable connection, making it ideal for various mechanical and electronic applications where stable panel integration is required.
Specifications
| Voltage Rating | 750V AC Peak |
|---|---|
| Current Rating | 10A |
| Contact Resistance | 2mΩ amx |
| Insulation Resistance | 1000MΩ min at 500V Dc |
| Dielectric Withstanding | 1500V rms |
| Temperature Range | -40°C to +85°C |
| Insertion Force | 1.0kg max |
| Extraction Force | 0.5kg min |
Material & Finish
| Contact | Phoshphor Bronze, Gold Plated |
|---|---|
| Insulator | Polypropylene/Nylon |
| Nut | Brass, Nickel Plated |
| washer | Brass, Nickel Plated |
Part No
| Colour | Part Number | |
|---|---|---|
| For Nylon | For Polypropylene | |
| Gold Plated | Gold Plated | |

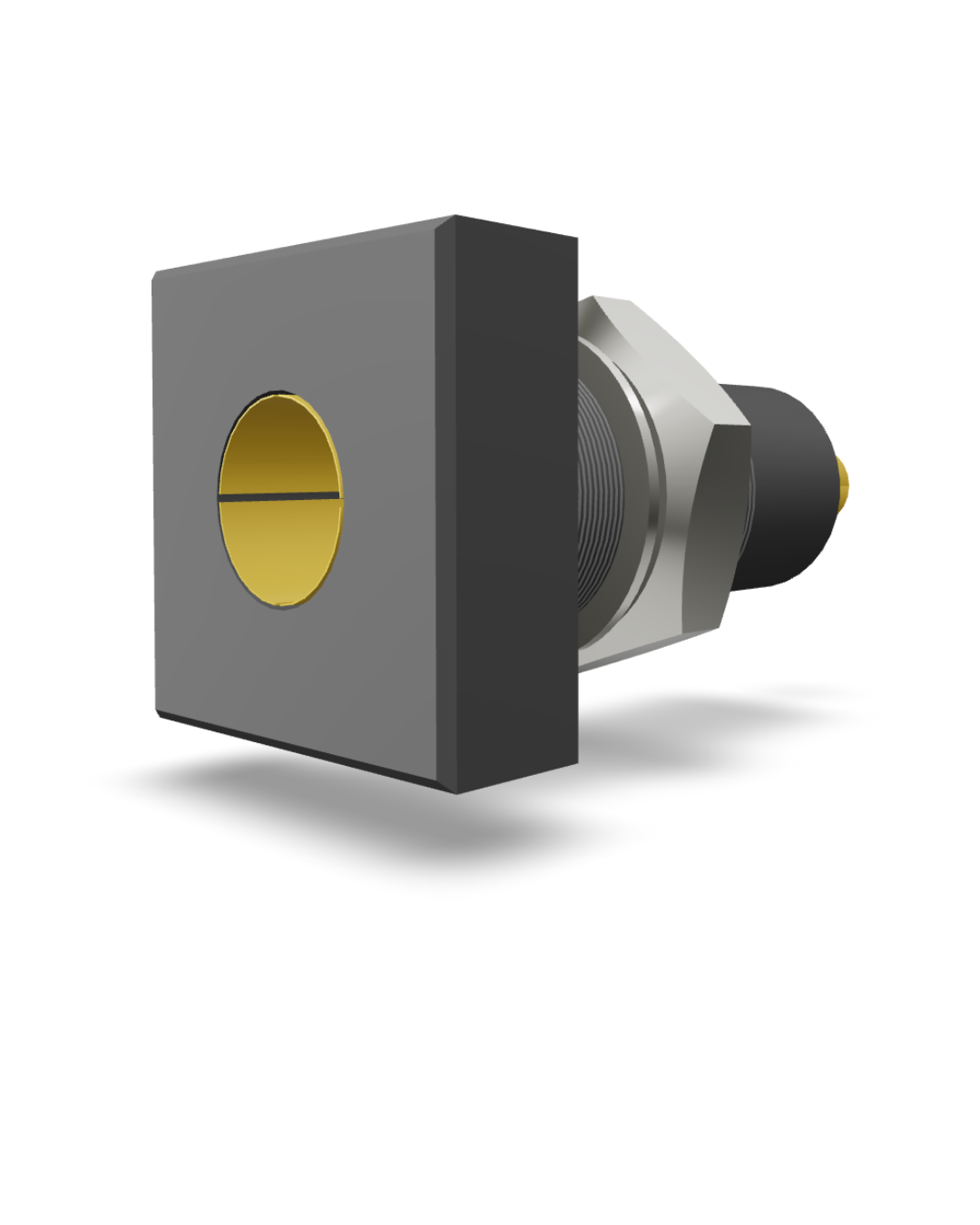

| Black | P8023-20-23 | P8023-10-23 |

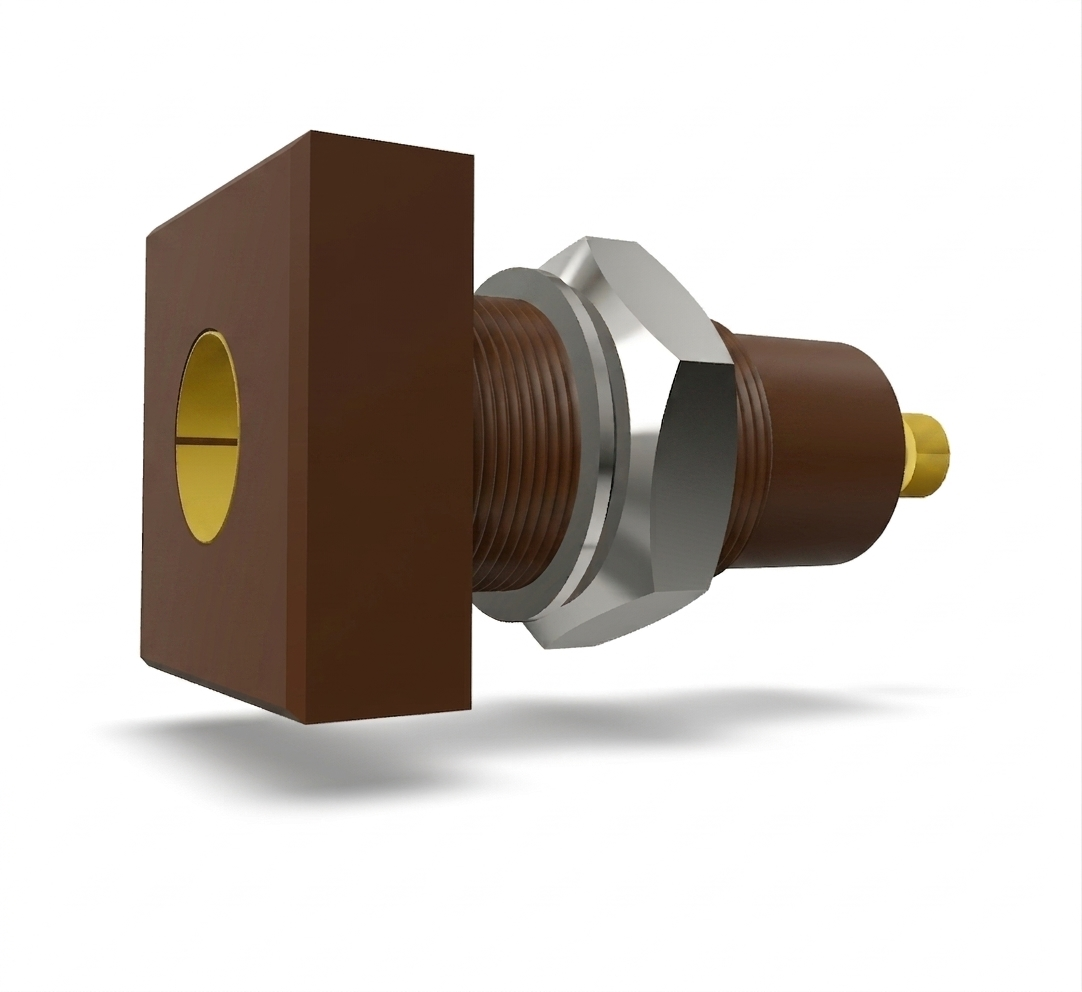

| Brown | P8023-21-23 | P8023-11-23 |

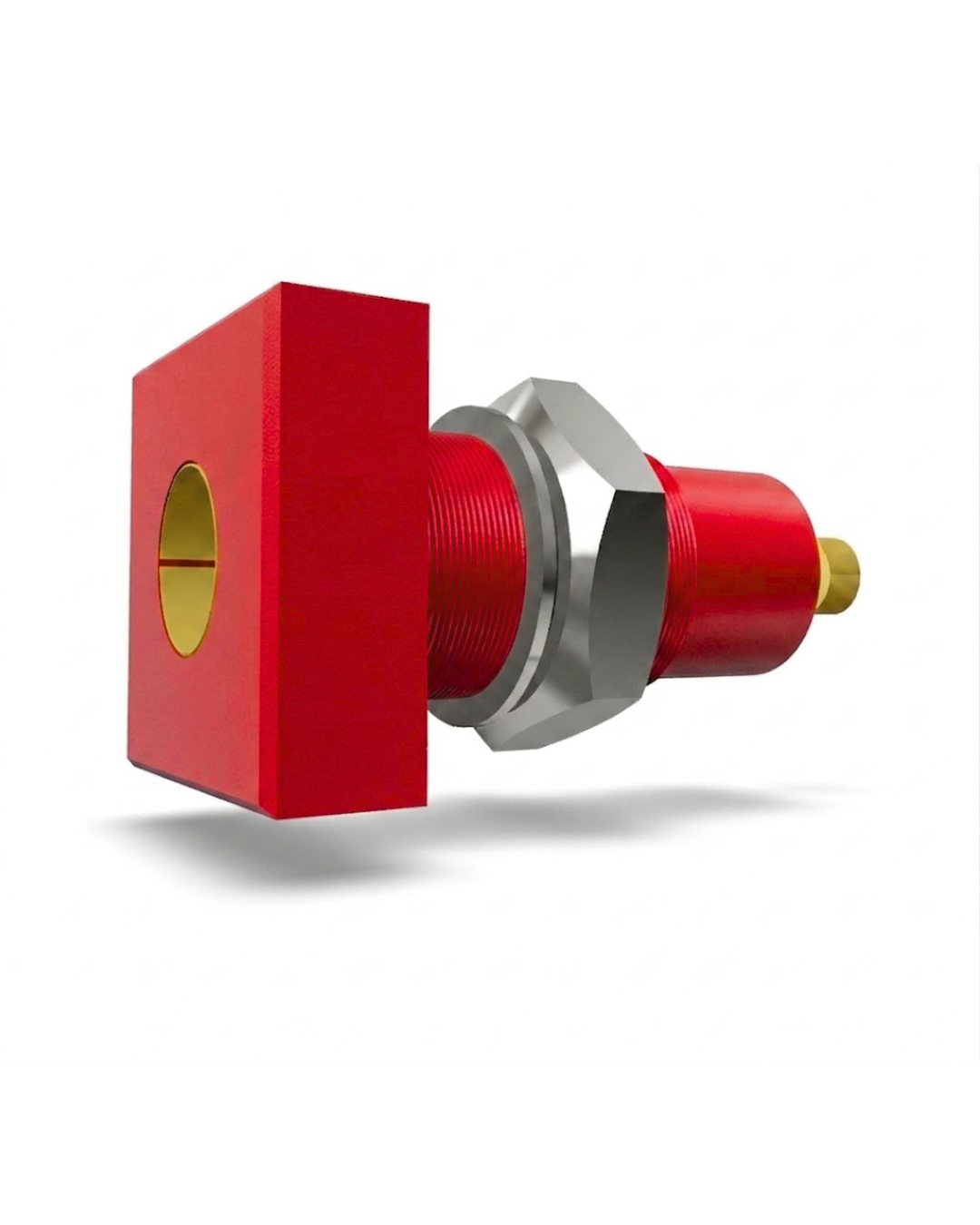

| Red | P8023-22-23 | P8023-12-23 |

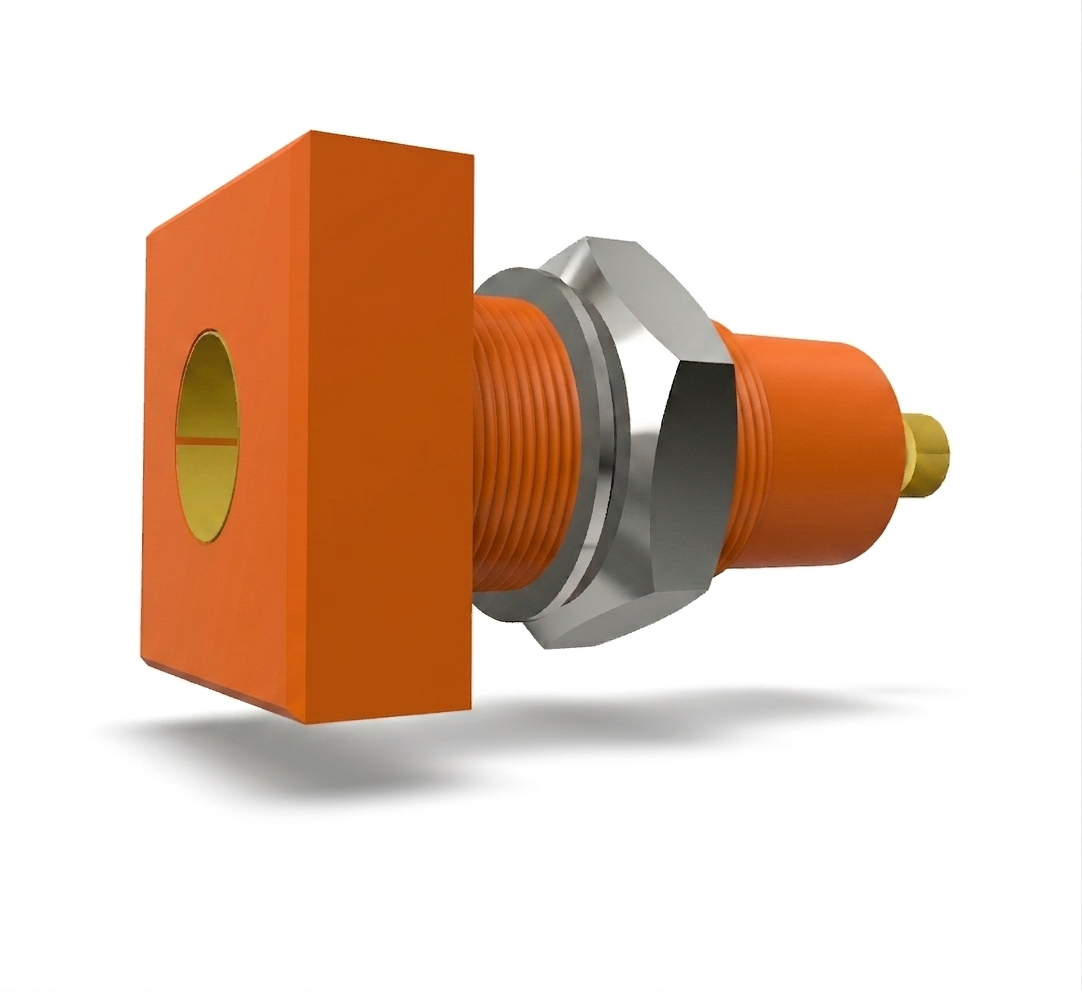

| Orange | P8023-23-23 | P8023-13-23 |

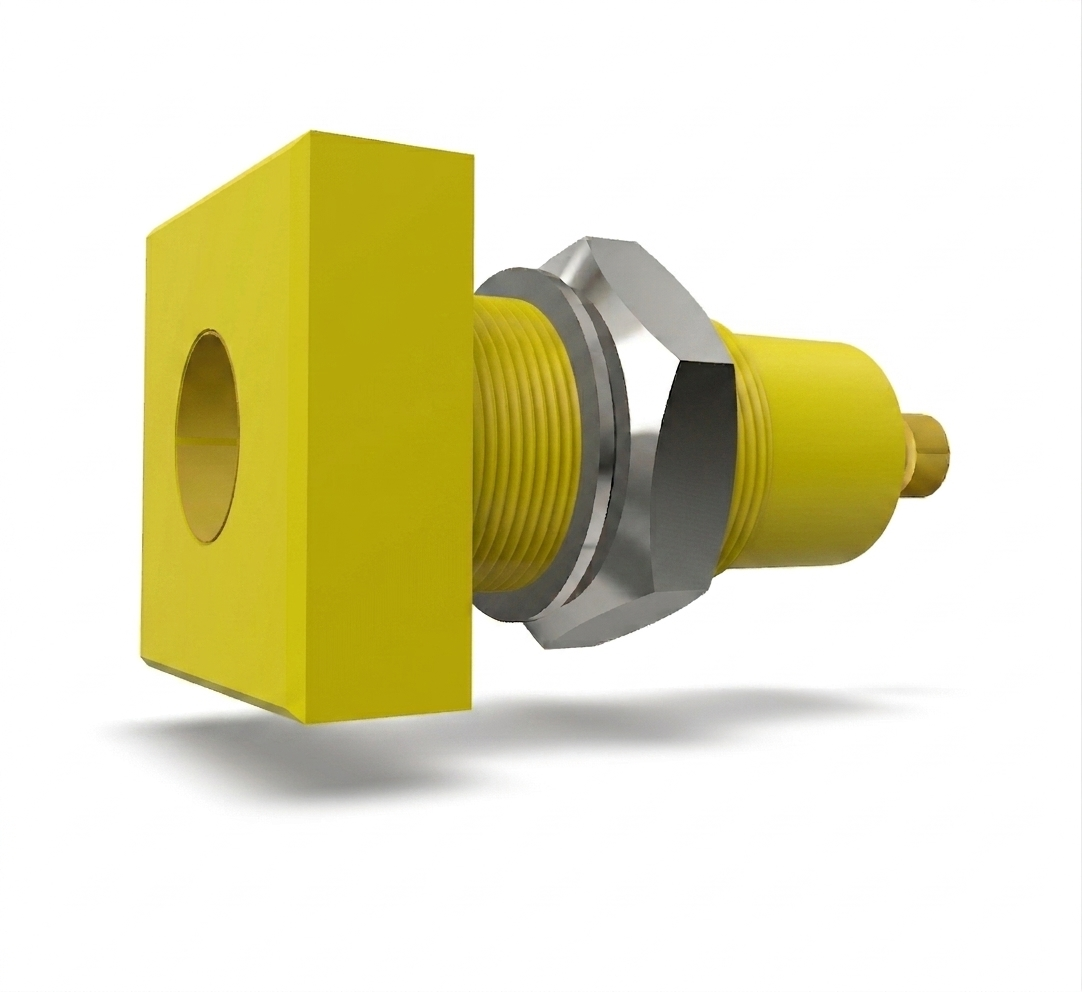

| Yellow | P8023-24-23 | P8023-14-23 |

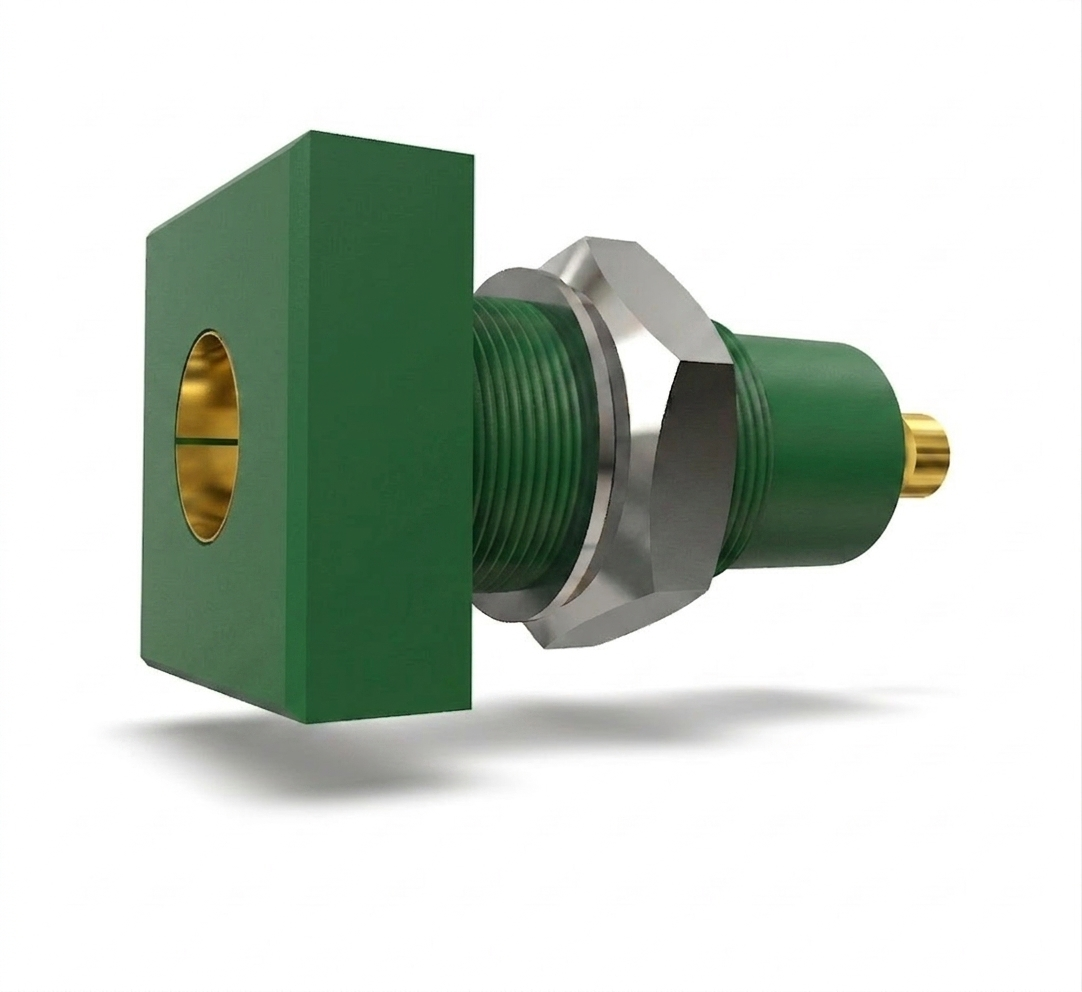

| Green | P8023-25-23 | P8023-15-23 |

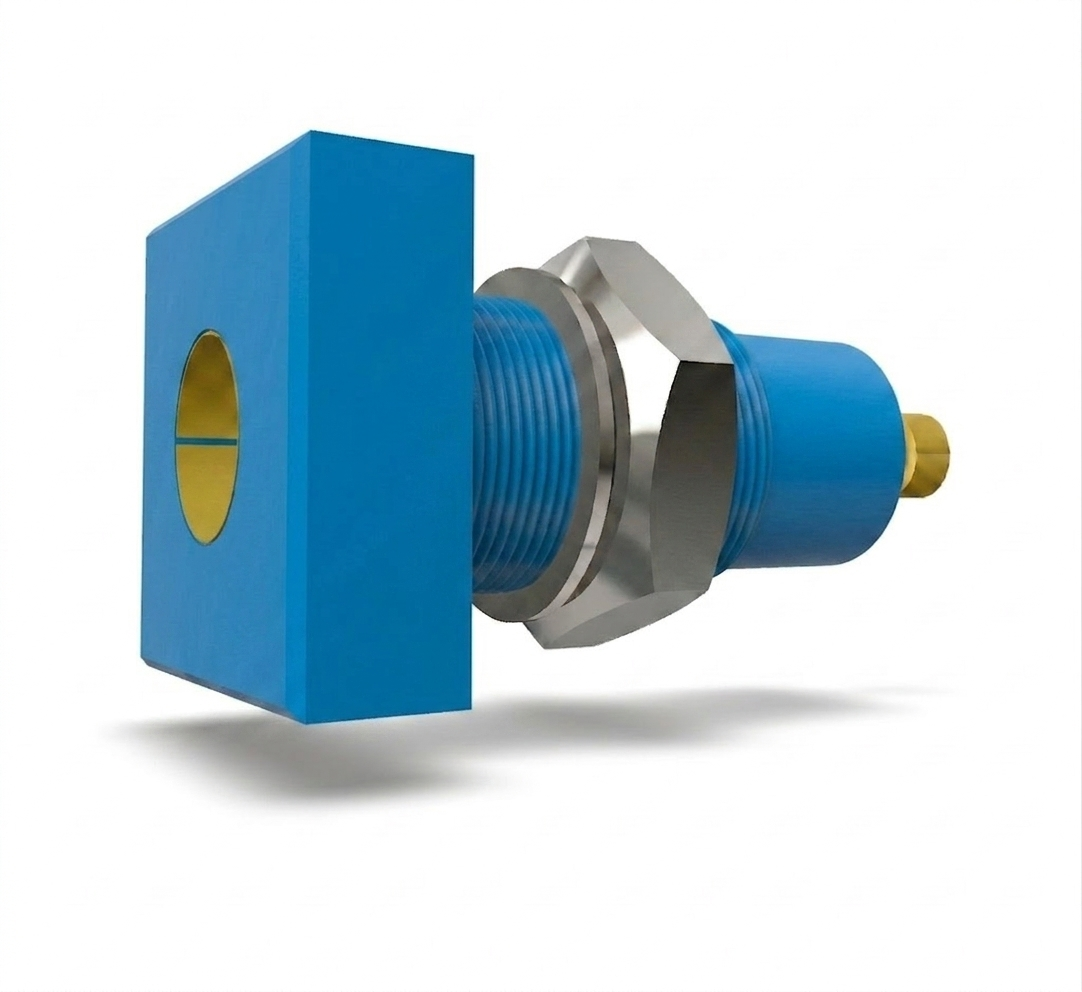

| Blue | P8023-26-23 | P8023-16-23 |

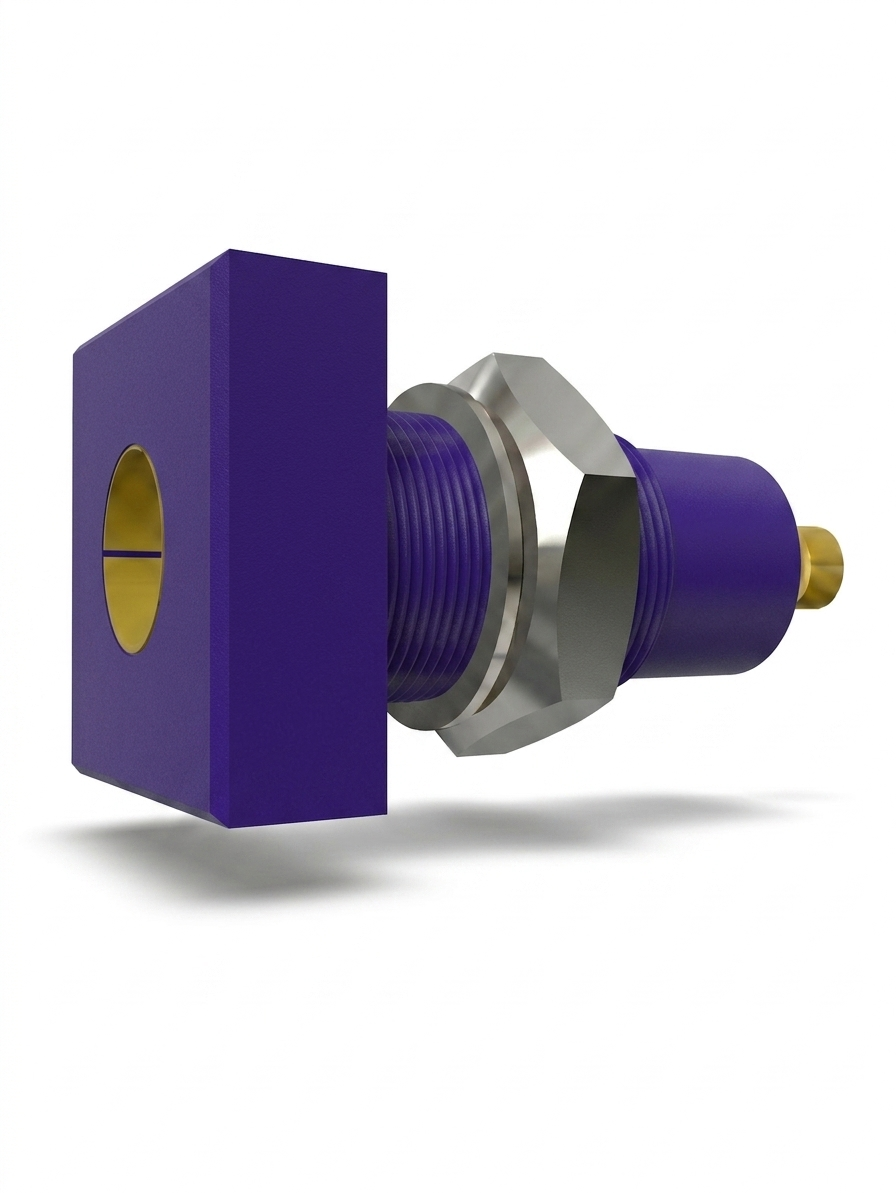

| Violet | P8023-27-23 | P8023-17-23 |

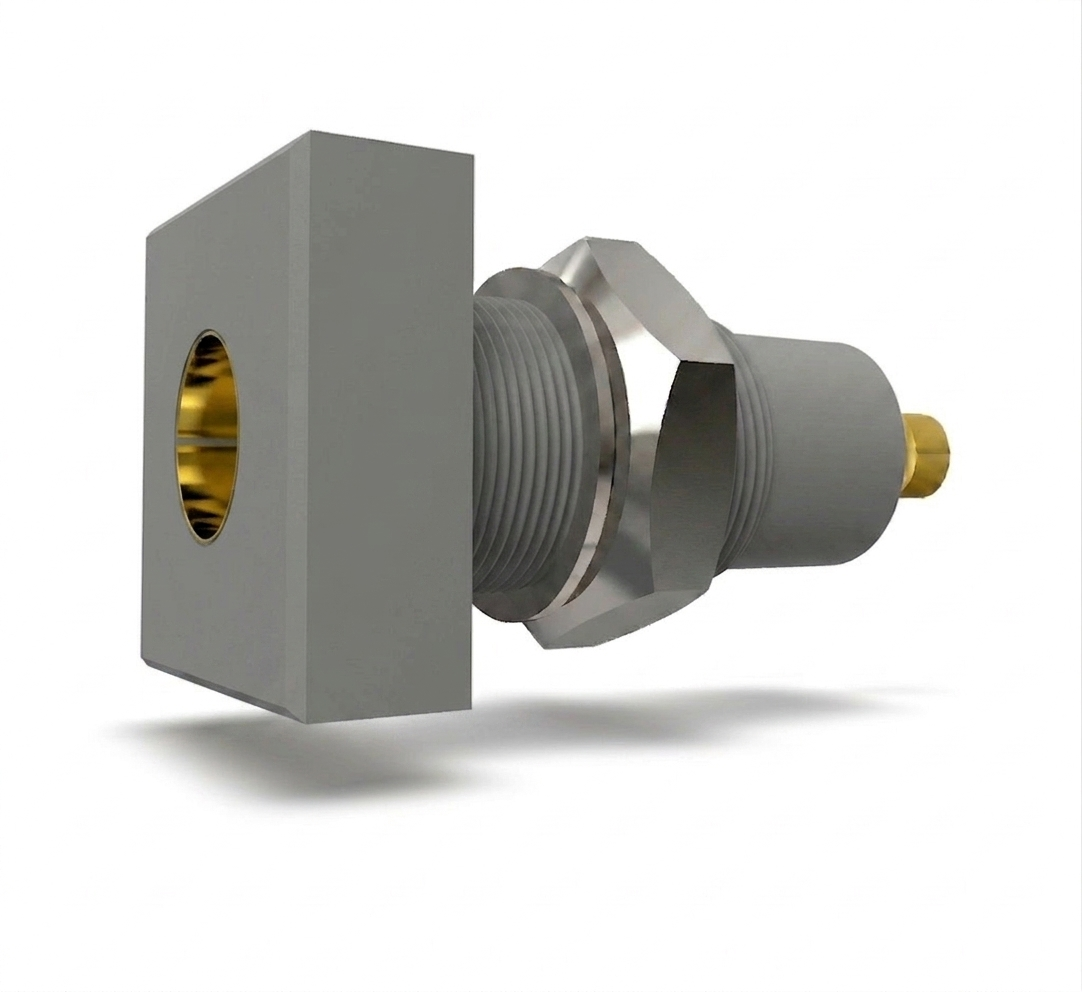

| Grey | P8023-28-23 | P8023-18-23 |

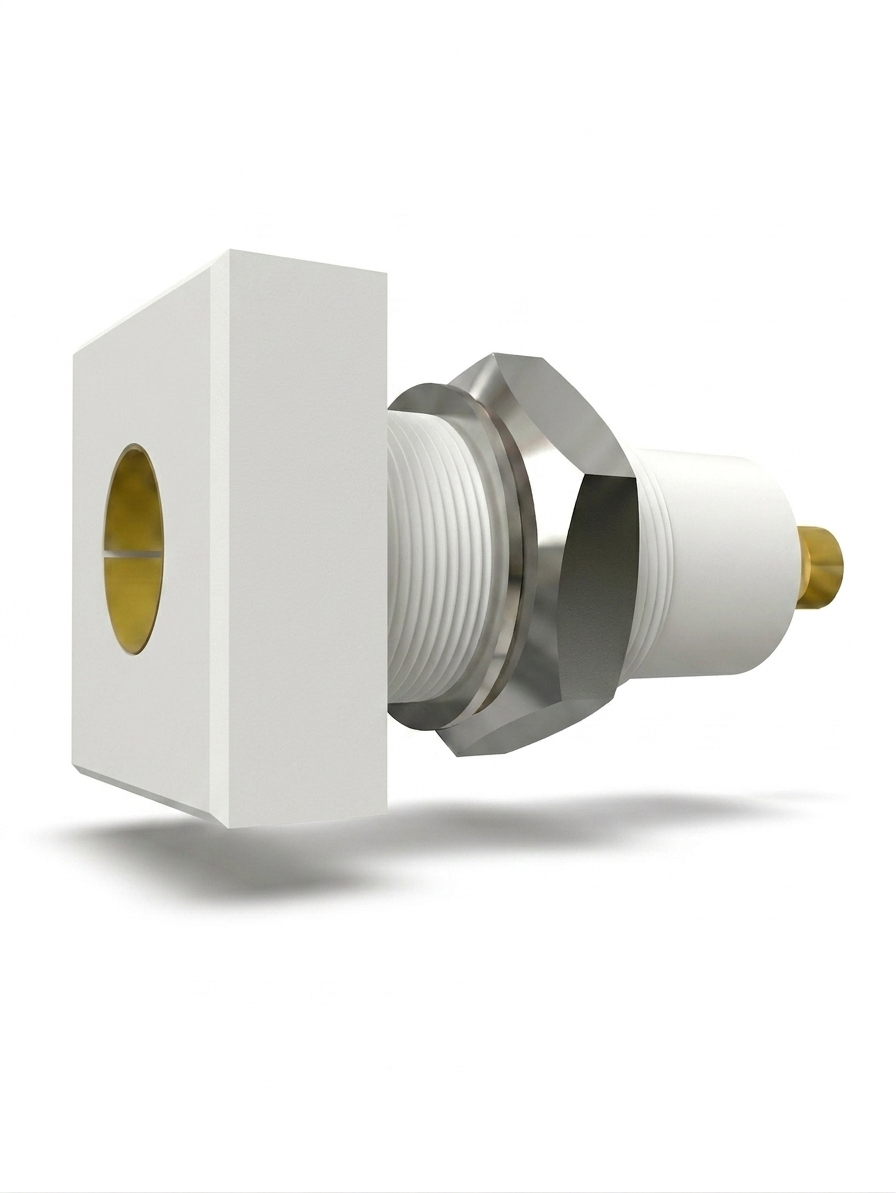

| White | P8023-29-23 | P8023-19-23 |
