2.54mm Pitch Pin Header Basic Stack Type Surface Mount Type P910C

Description

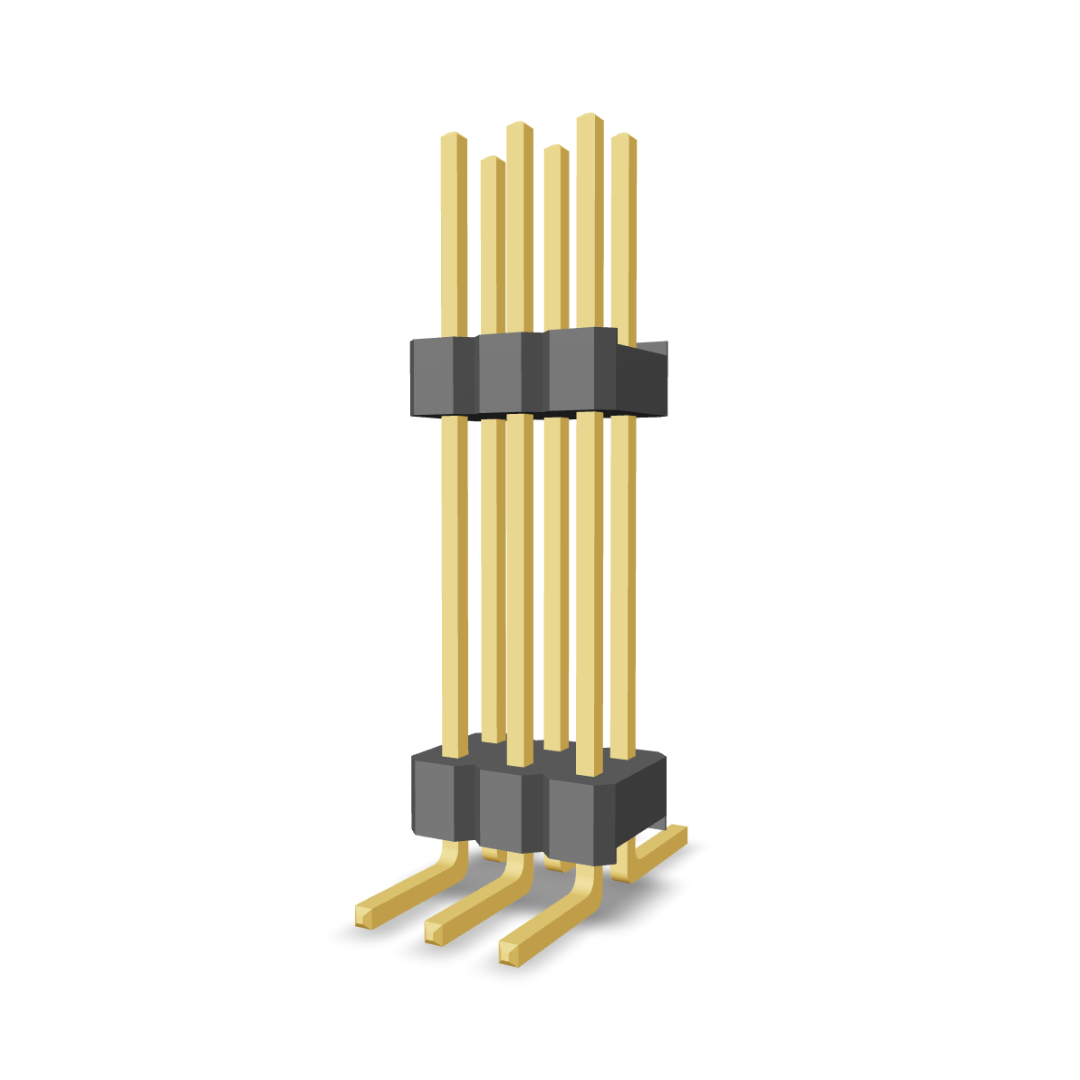

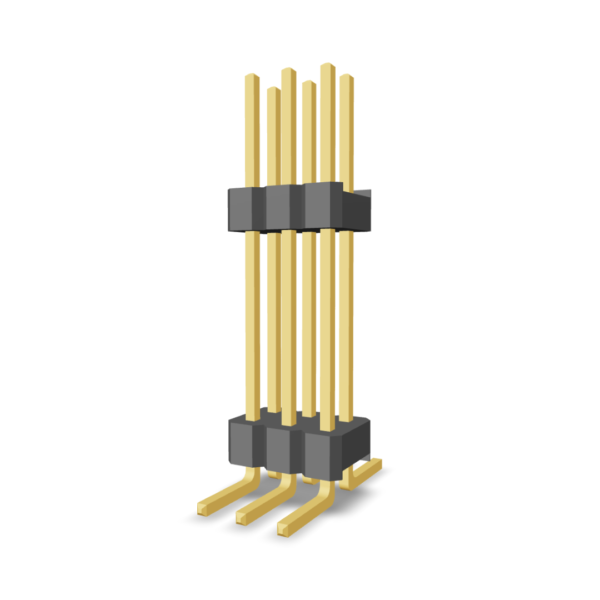

The P910C is a basic stack type, surface mount pin header with a 2.54mm pitch, designed for reliable and efficient electrical connections.

Specification

Pin Retention Force:
10N/1Kg Min

Material and Finish

Material:
Brass
Solder Tails:
Gold Plated
Packaging Type:
Tube/ Tray

Electrical Characteristics

Current Rating:
3A
Insulation Resistance:
1000M OHMS Min
Contact Resistance:
10m OHMS Max
Dielectric withstanding:
1000V AC/Min

Part No

P910C-XX931-1A
