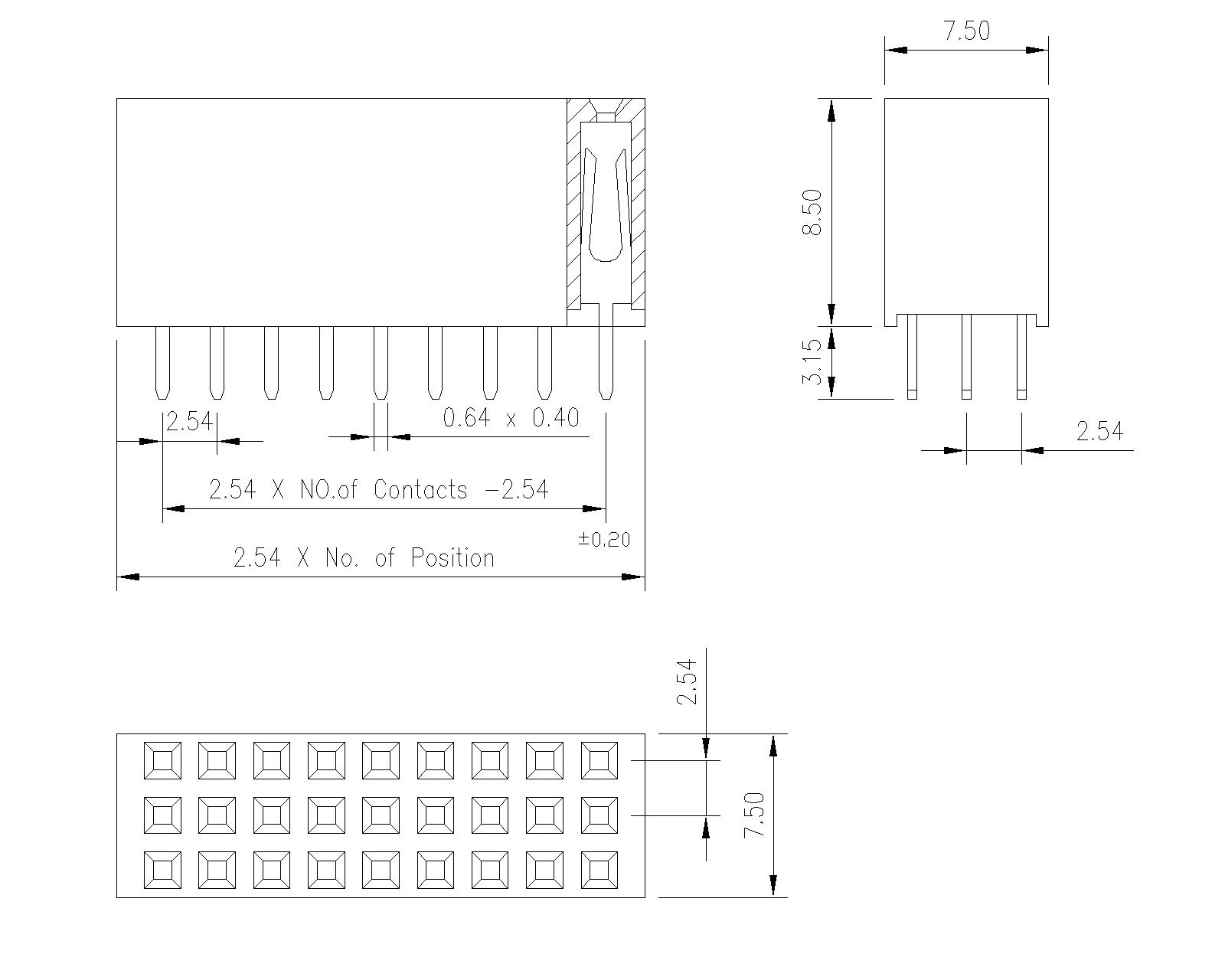

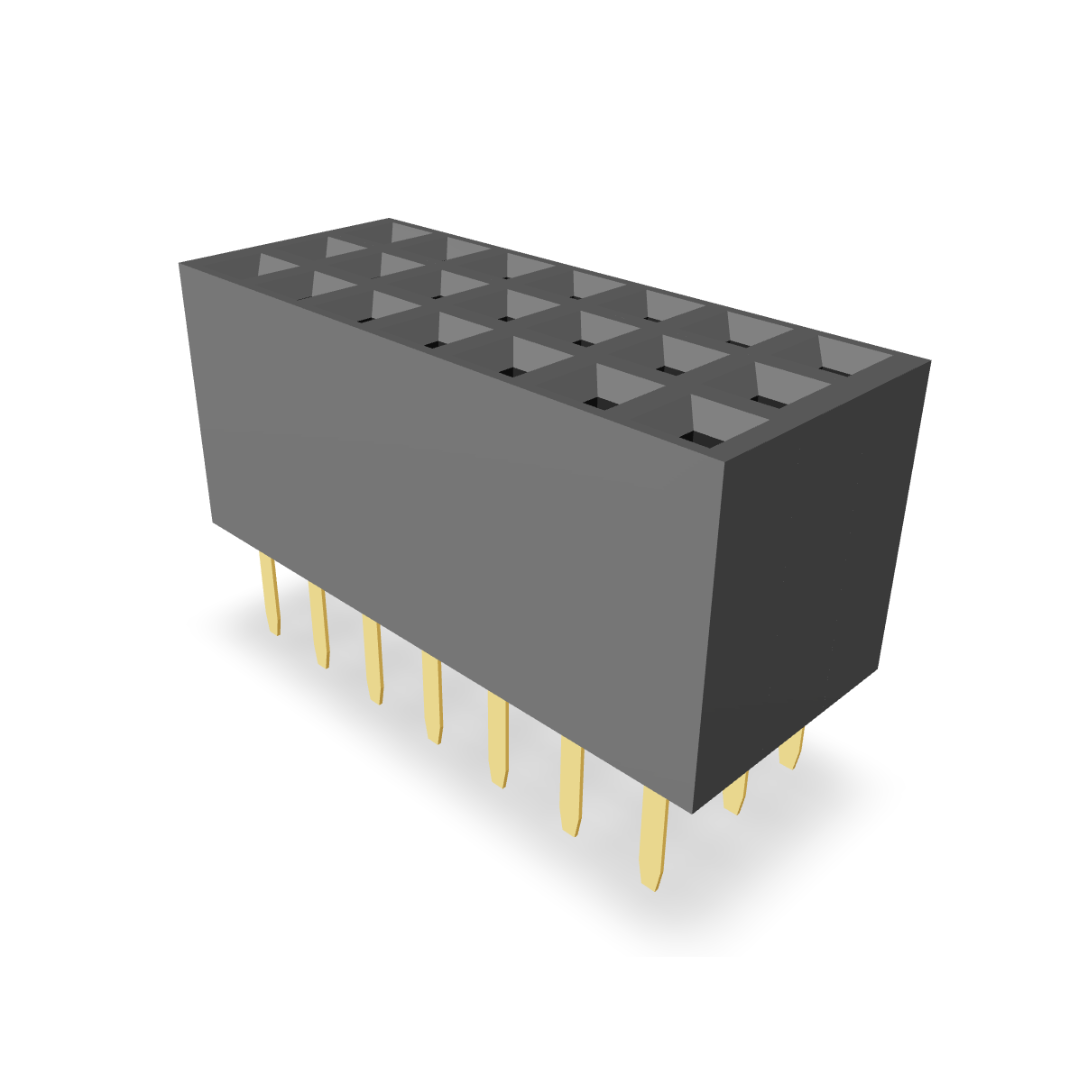

2.54mm Pitch Female Header Triple Row Elevated Type (P940TXXX-21)
Description
The 2.54mm Pitch Female Header Triple Row Elevated Type P940T is a high-quality connector designed for applications that require a secure, elevated connection between PCBs.
Material and Finish
Insulation
Material: |
Glass Filled Thermoplastic Polyester |
Flammability: |
UL94V-0 |
Color: |
Black |
Contact
Material: |
Phosphor Bronze |
Solder Tails: |
Gold Plated |
Packaging Type: |
Tube/Tray |
Electrical Characteristics
Current Rating: |
3A |
Insulation Resistance: |
5000M OHMS Min |
Dielectric withstanding: |
500V AC/Min |
Contact Resistance: |
20m OHMS Max |
Mechanical Data
Insertion Force: |
200g max |
Extraction Force: |
20g min |
Mechanical Life: |
100 Cycles min |
Part No
P940TXXX-21
