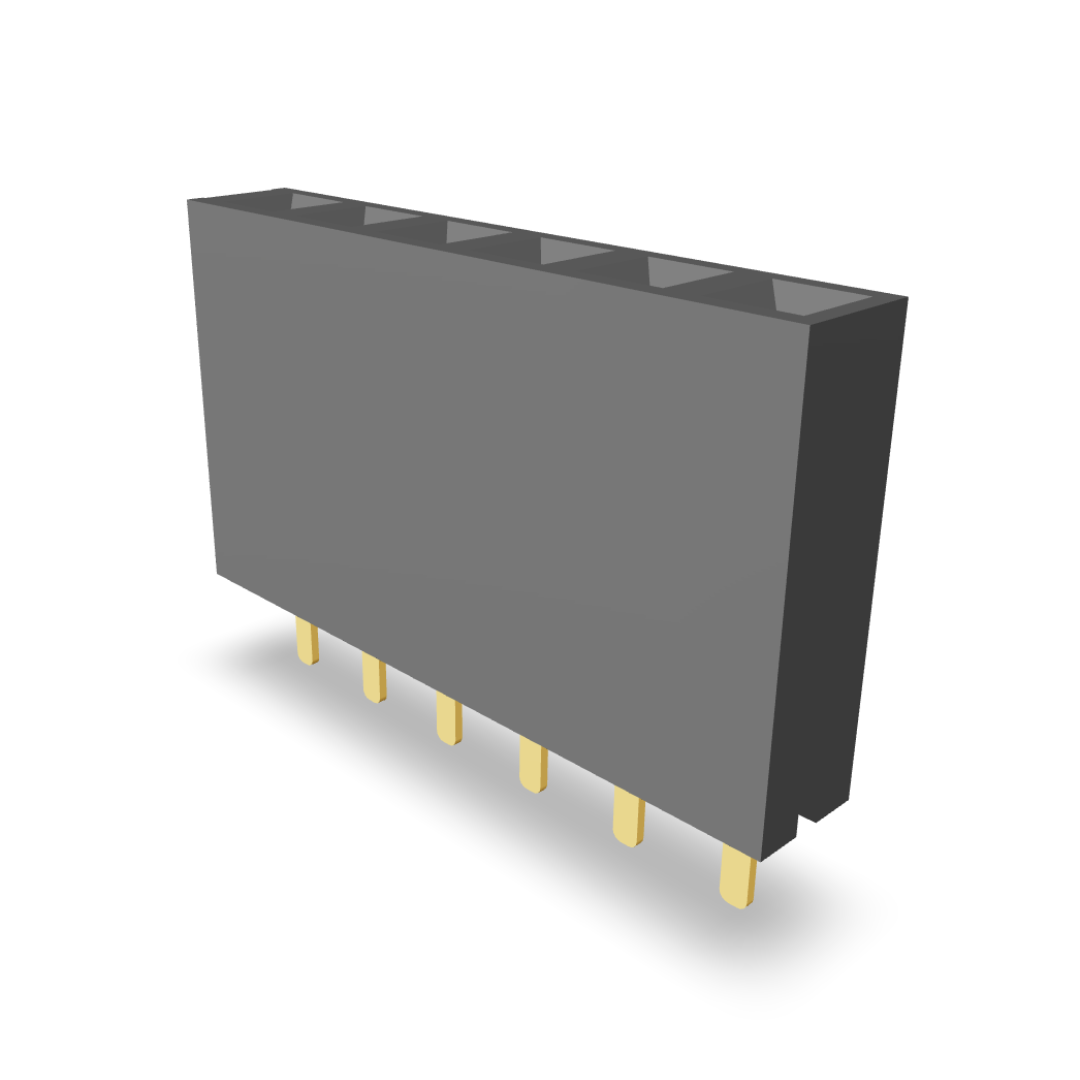

2.54mm Pitch Female Header Single Row (Straight) Profile:8.5mm (P9401-XX-2X)
Description
The P9401 is a single row, straight female header with a 2.54mm pitch and an 8.5mm profile, designed for reliable and efficient electrical connections.
Material and Finish
Insulation
Material: |
Glass Filled Thermoplastic Polyester |
Flammability: |
UL94V-0 |
Color: |
Black |
Contact
Material: |
Copper Alloy |
Solder Tails: |
Gold Plated |
Electrical Characteristics
Current Rating |
3 A |
Contact Resistance |
20 M OHMS MAX |
Dielectric Withstanding |
500 V AC For 1 Min |
Insulation Resistance |
1000 M OHMS MIN |
Mechanical Data
Insertion Force: |
300g max |
Extraction Force: |
40g min |
Mechanical Life: |
100 Cycles min |
Part No
P9401-XX-2X
