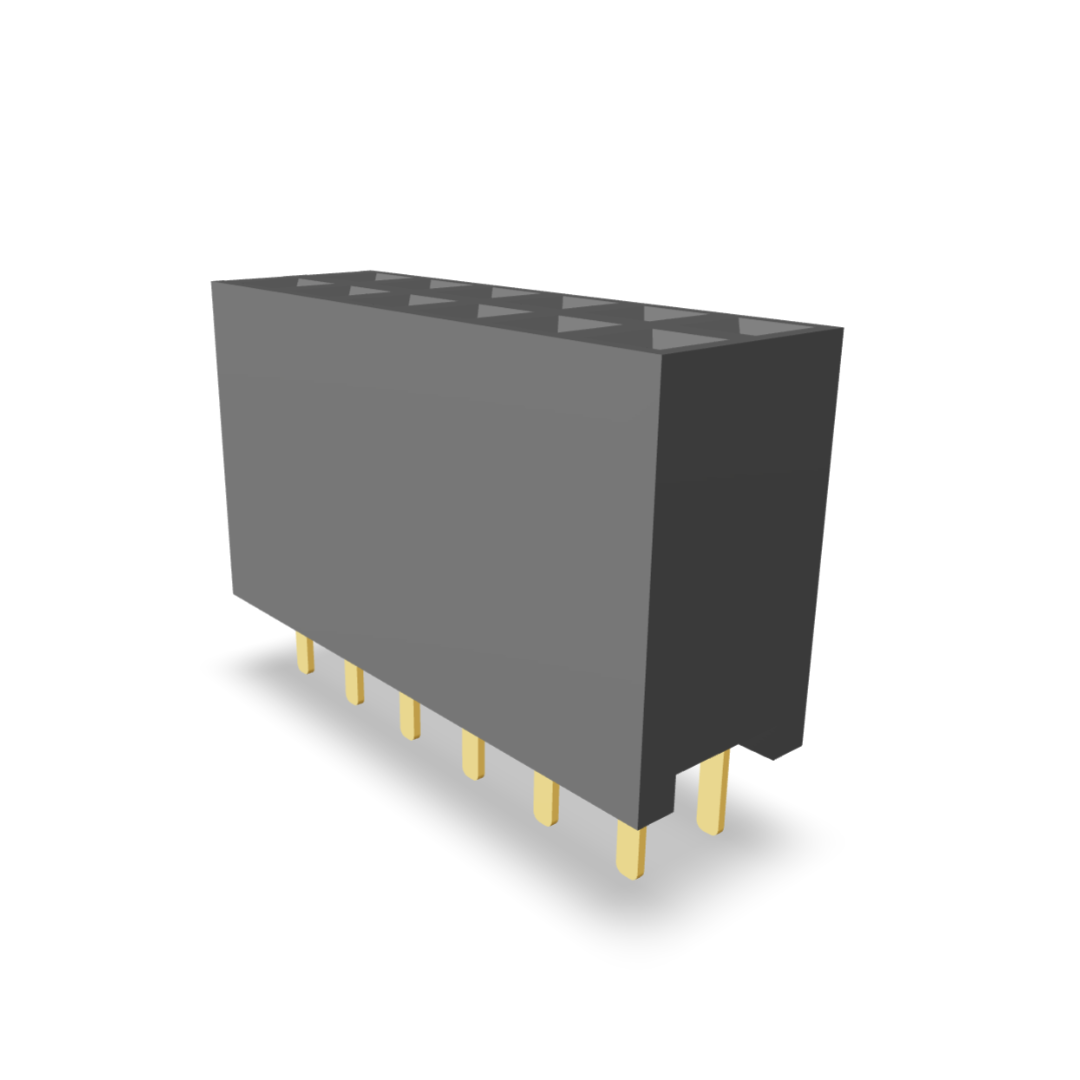

2.54mm Pitch Female Header Double Row (Straight) Profile:8.5mm (P9403-XX-2X)
Description
Its double-row configuration ensures stable and reliable connections, making it suitable for a wide range of electronic applications.
Material and Finish
Contact
Material: |
Glass Filled Thermoplastic Polyester |
Flammability: |
UL94V-0 |
Color: |
Black |
Contact
Material: |
Copper Alloy |
Solder Tails: |
Gold Plated |
Electrical Characteristics
Current Rating: |
3A |
Insulation Resistance: |
5000M OHMS Min |
Contact Resistance |
20 M OHMS MAX |
Dielectric Withstanding: |
500 V AC |
Mechanical Data
Insertion Force: |
300g max |
Extraction Force: |
40g min |
Mechanical Life: |
100 Cycles min |
Part No
P9403-XX-2X
