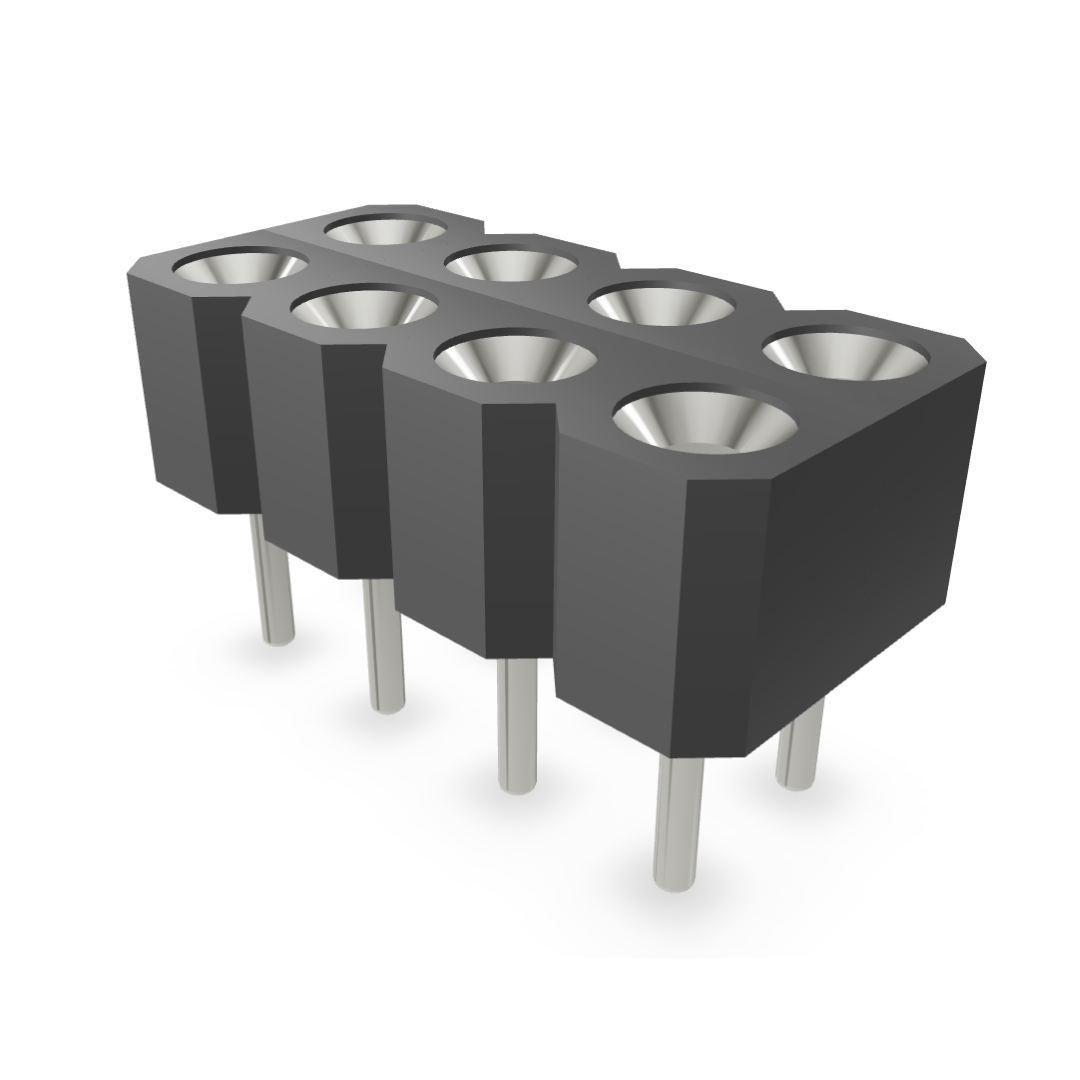

2.54mm Pitch Female Header Double Row (Straight) Profile:2.9mm P9306
Description
The P9306 is a double row, straight female header with a 2.54mm pitch and a 2.9mm profile, designed for reliable and efficient electrical connections.
Material and Finish
Material: |
Glass Filled Polyester |
Flammability: |
UL94V-0/PPS |
Color: |
Black |
Sleeve: |
Brass, Tin Plated |
Clip: |
Beryllium Copper, Gold Plated |
Packaging Type: |
Tube/Tray |
Electrical Characteristics
Current Rating: |
3A |
Insulation Resistance: |
10000M OHMS Min |
Dielectric withstanding: |
1000V rms Min |
Contact Resistance: |
10m OHMS Max |
Environmental Characteristics
Typical Insertion Force: |
0.12 kg max with 0 76mm pin or 0.635mm Sq pin |
Typical withdrawal Force: |
0.06 Kg min with 0.76mm pin or 0.635mm Sq pin |
Mechanical Life: |
500 Cycles Min with 0.76mm pin or 0.635mm pin or 0.635mm Sq pin |
Part No
P9306-XX-41-1
