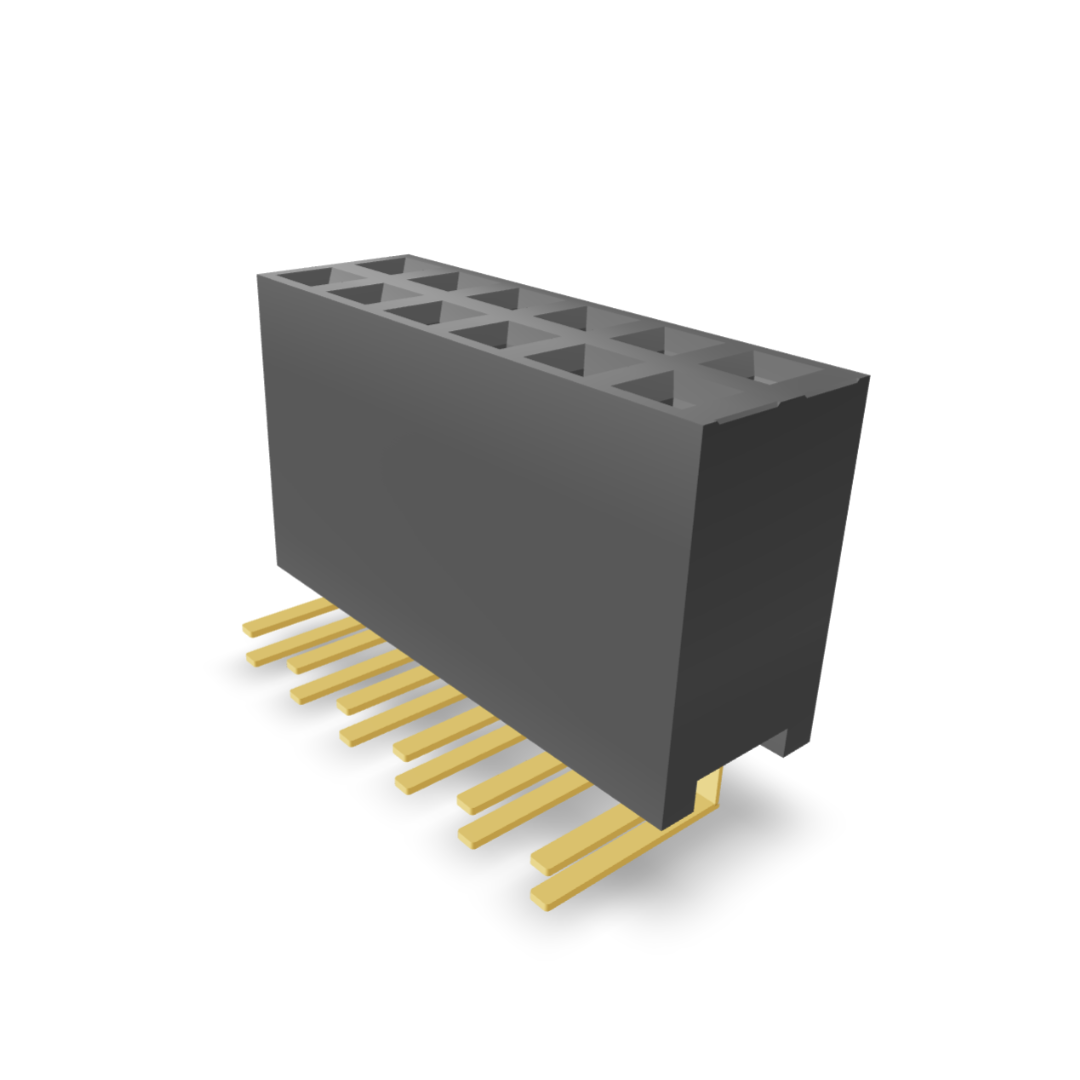

2.54mm Pitch Female Header Double Row (Right Angle) (P9404AXX-XX)
Description
Its right-angle and double-row configuration ensure robust and stable interconnections.
Material and Finish
Insulation
Material: |
Glass Filled Polyester |
Flammability: |
UL94V-0 |
Color: |
Black |
Contact
Material: |
Copper Alloy |
Solder Tails: |
Refer Table |
Packaging Type: |
Tube / Tray |
Electrical Characteristics
Current Rating: |
3A |
Insulation Resistance: |
5000M OHMS Min |
Dielectric Resistance: |
500V AC/Min |
Contact Resistance: |
20m OHMS Max |
Mechanical Data
Insertion Force: |
200g max. |
Extraction Force: |
20g min. |
Mechanical Life: |
100 Cycles Min |
Part No
P9404AXX-XX
