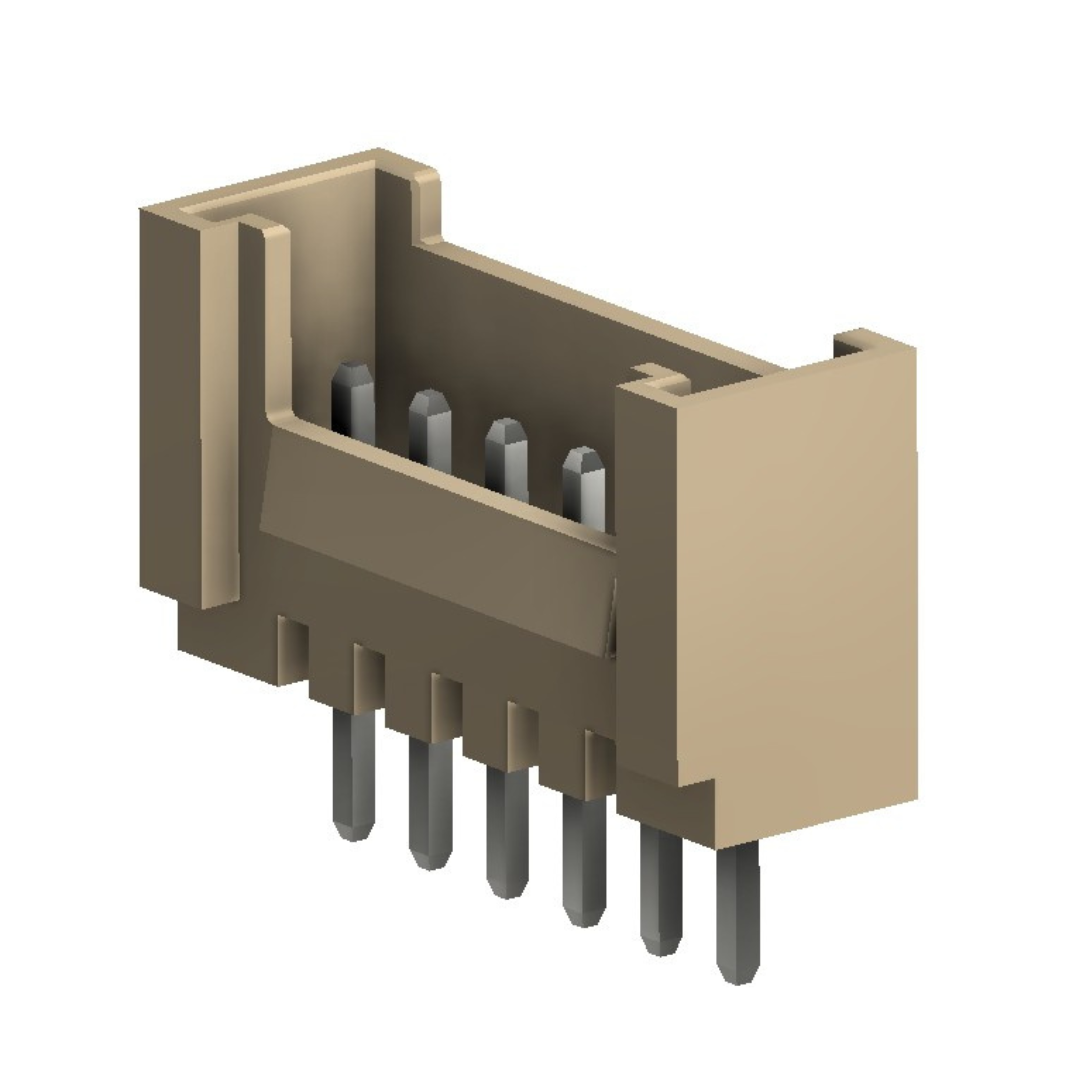

2.00mm Pitch PA Connector, Single Row, straight (P9086S29-12-X)
Description
Its straightforward design makes it suitable for applications where a linear connection is required.
Material and Finish
Insulation
Material: |
Nylon 46 |
Flammability: |
UL94V-0 |
Contact: |
Copper Alloy, Gold Plated (1μ”) Over NI” Min |
Packaging Type: |
Bulk Packing |
Electrical Characteristics
Current Rating: |
1A AC, DC |
Insulation Resistance: |
1000M OHMS Min |
Dielectic withstanding: |
1000V AC For 1 Minute |
Contact Resistance: |
30m Max |
Voltage Rating: |
250V AC/DC |
Part No
P9086S29-12-X
