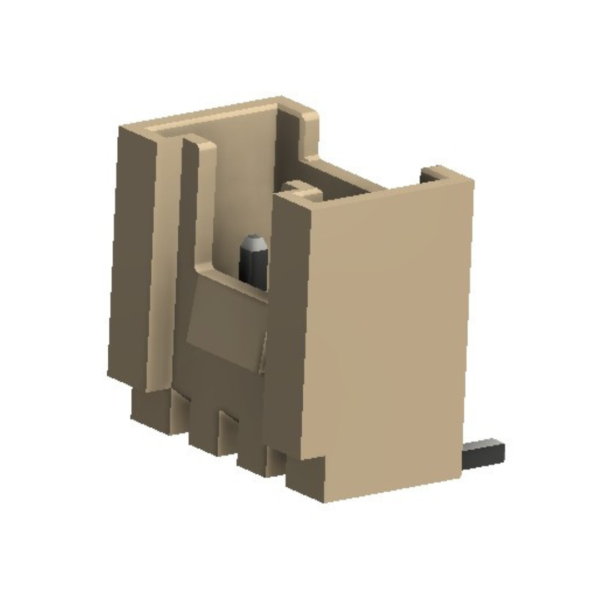

2.00mm Pitch PA Connector, Single Row, Right Angle (P9086R29-12-X)

Description

Its right-angle configuration is ideal for applications where space is limited, and a perpendicular connection is needed.

Material and Finish

Current Rating:
1A AC, DC
Insulation Resistance:
1000M ohms Min
Dielectric Withstand:
1000V AC for 1 min
Contact Resistance:
30m ohms max
Voltage Rating:
250V AC/DC

Electrical Characteristics

Insulator Body:
Nylon 6T, UL94V-0
Contact:
Brass, Gold Plated

Part No

P9086R29-12-X
