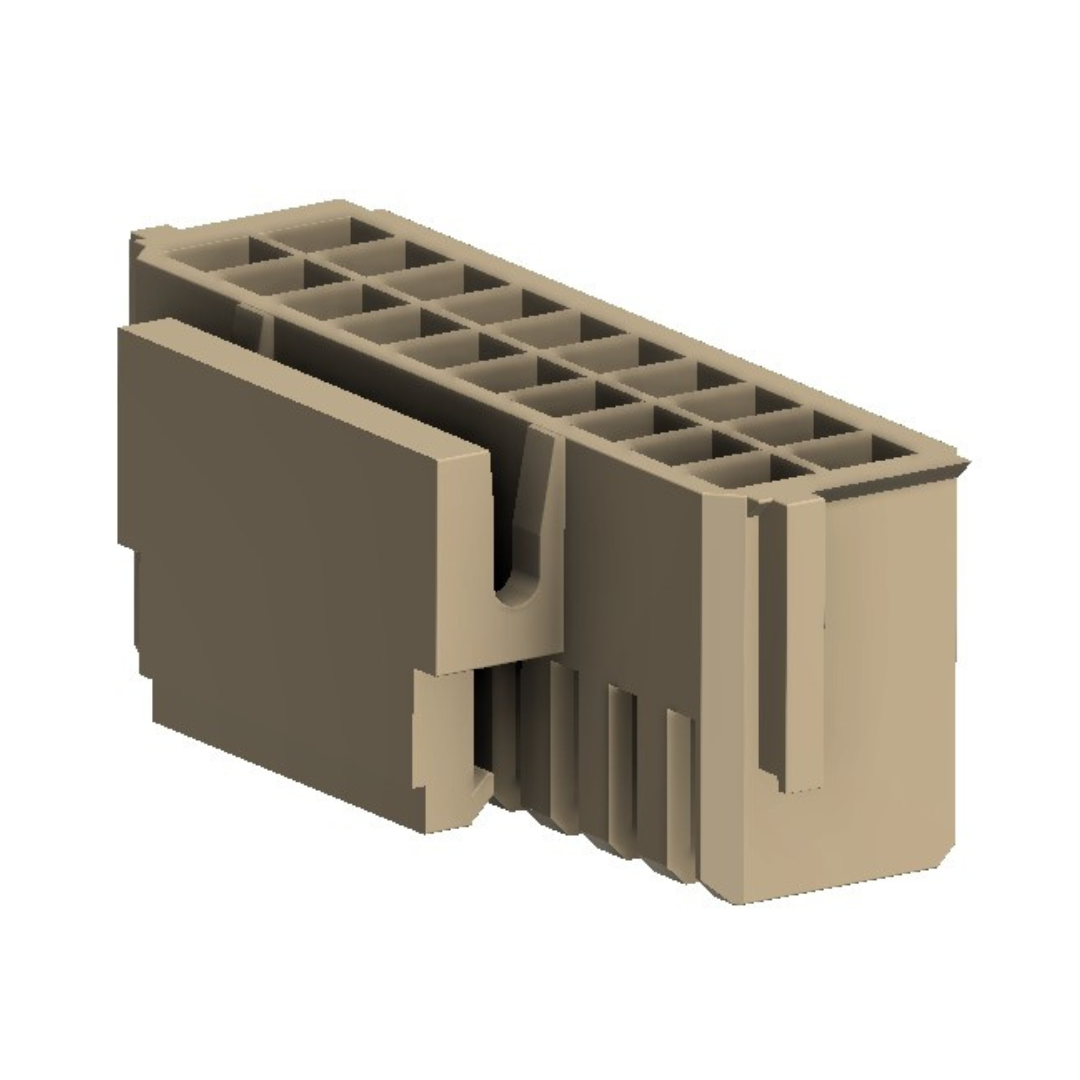

2.00mm Pitch PA Connector, Dual Row Housing (P9022H29-00-XX)
Description
It is a compact, dual-row connector housing designed for reliable and efficient electrical connections in tight spaces.
Material and Finish
Material: |
Nylon 66 |
Flammability: |
UL94V-0 |
Packaging Type: |
Standard Packing |
Electrical Characteristics
Current Rating: |
2A AC, DC |
Contact Resistance: |
30m Ω Max |
Insulation Resistance: |
1000M Ω Min |
Withstanding Voltage: |
1000V AC/Minute |
Voltage Rating: |
250V AC/DC |
Part No
P9022H29-00-XX
