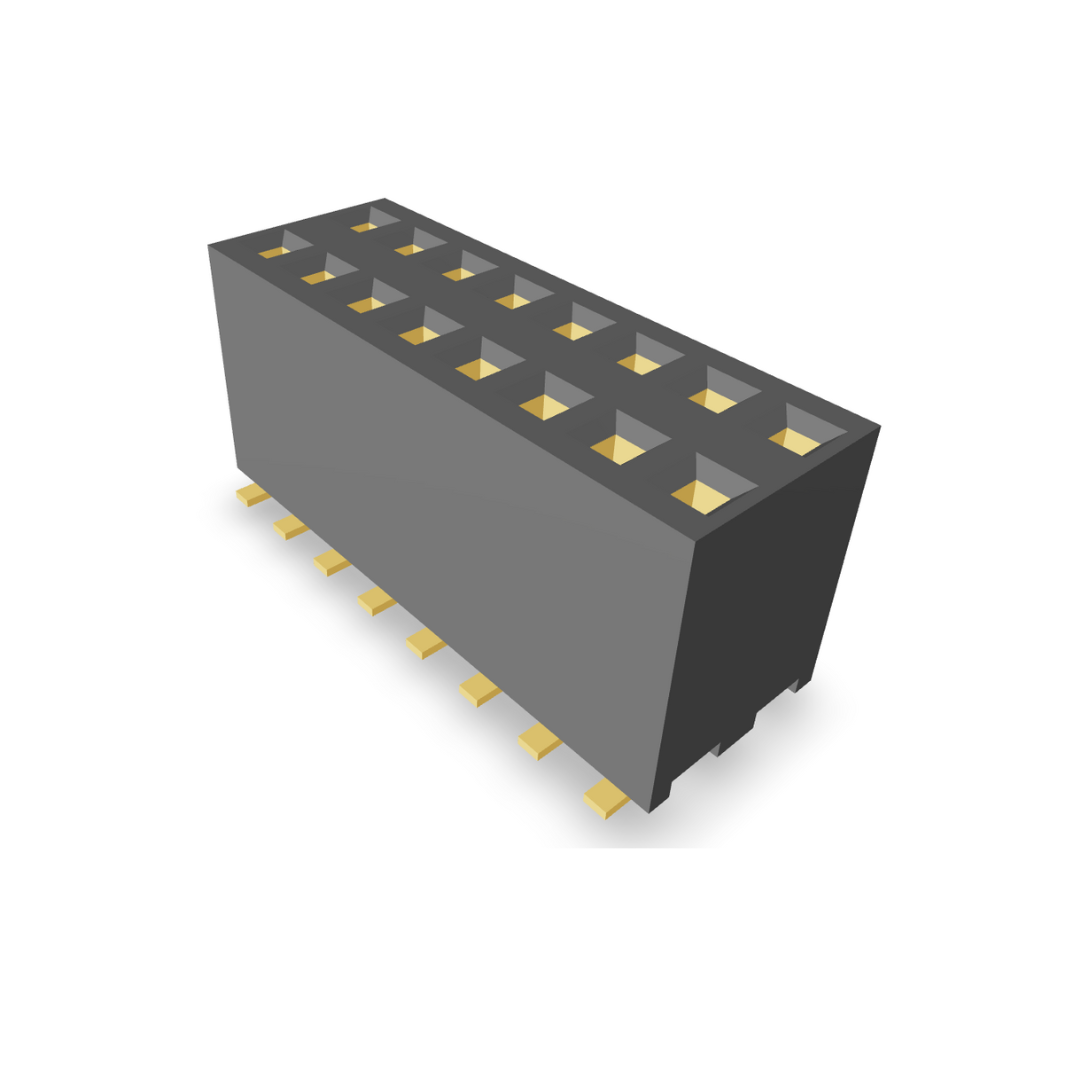

2.00mm Pitch Female Header Double Row Surface Mount 2.4mm Base(P9415-XX-2X)
Description
Its double-row and surface-mount configuration ensures reliable interconnections, electronic applications demanding precise and robust connectivity.
Material and Finish
Insulation
Material: |
Nylon 6T/Polyester |
Flammability: |
UL94V-0 |
Color: |
Black |
Contact
Material: |
Copper Alloy |
Solder Tails: |
Gold Plated |
Packaging Type: |
Standard Packing |
Electrical Characteristics
Current Rating: |
1A |
Insulation Resistance: |
5000M OHMS Min |
Dielectric withstanding: |
500V AC |
Contact Resistance: |
20m OHMS Max |
Voltage Rating: |
250V AC RMS Max |
Mechanical Data
Insertion Force: |
0.7N AVG |
Withdrawal Force: |
0.5N AVG |
Part No
P9415-XX-2X
