1mm Vertical Jack Tip Insulated Conical Type(P8001)
Description
This connector is commonly used in audio, signal, and power applications where secure and stable connections are essential.
Specifications
| Current Rating | 5A max |
|---|---|
| Contact Resistance | 5mΩ min |
| Insulation Resistance | 1000MΩ min |
| Dielectric Withstanding | 500V AC min |
| Temperature Range | -25°C to +70°C |
| Insertion Force with | 130gms |
| Extraction Force with 0.98mm | 190gms |
| Mounting Hole Dia in PCB | 1.30mm |
| Mating Connectors | P8003, P8005 |
Material & Finish
| Outer Sleeve | Brass,Tin/Gold Plated |
|---|---|
| Inner clip | Beryllium Copper,Gold Plated |
| Insulator | Polypropylene |
Ordering Information
| Colour | Part Number | |
|---|---|---|
| Tin Plated | Gold Plated | |

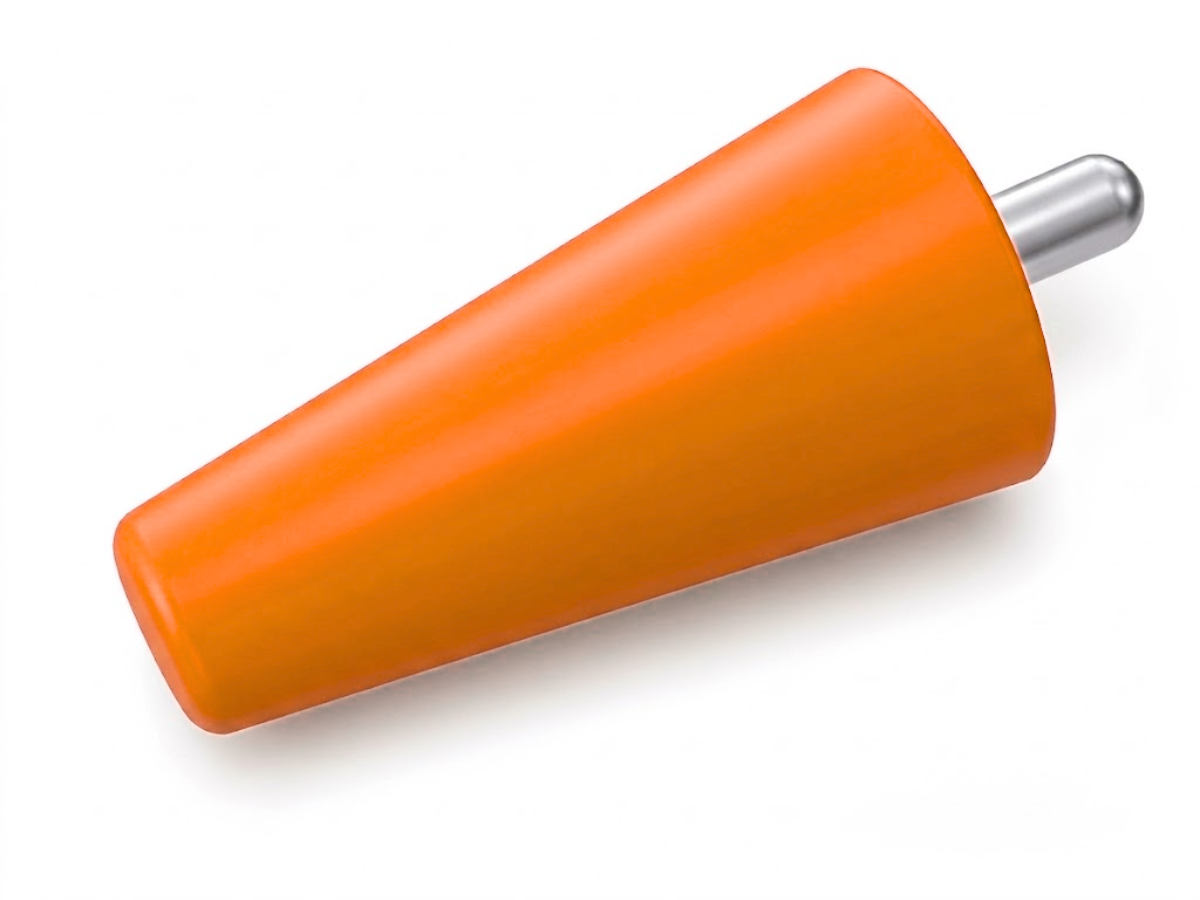

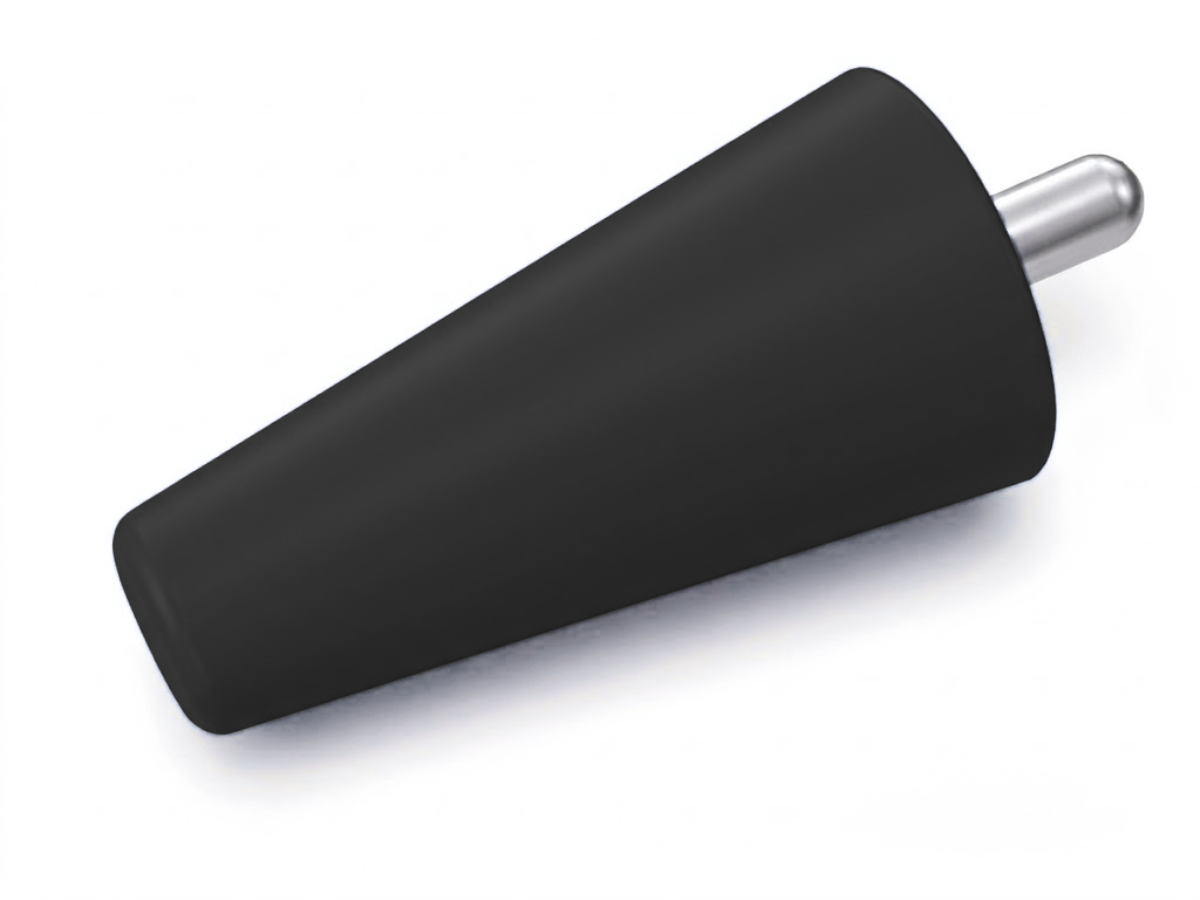

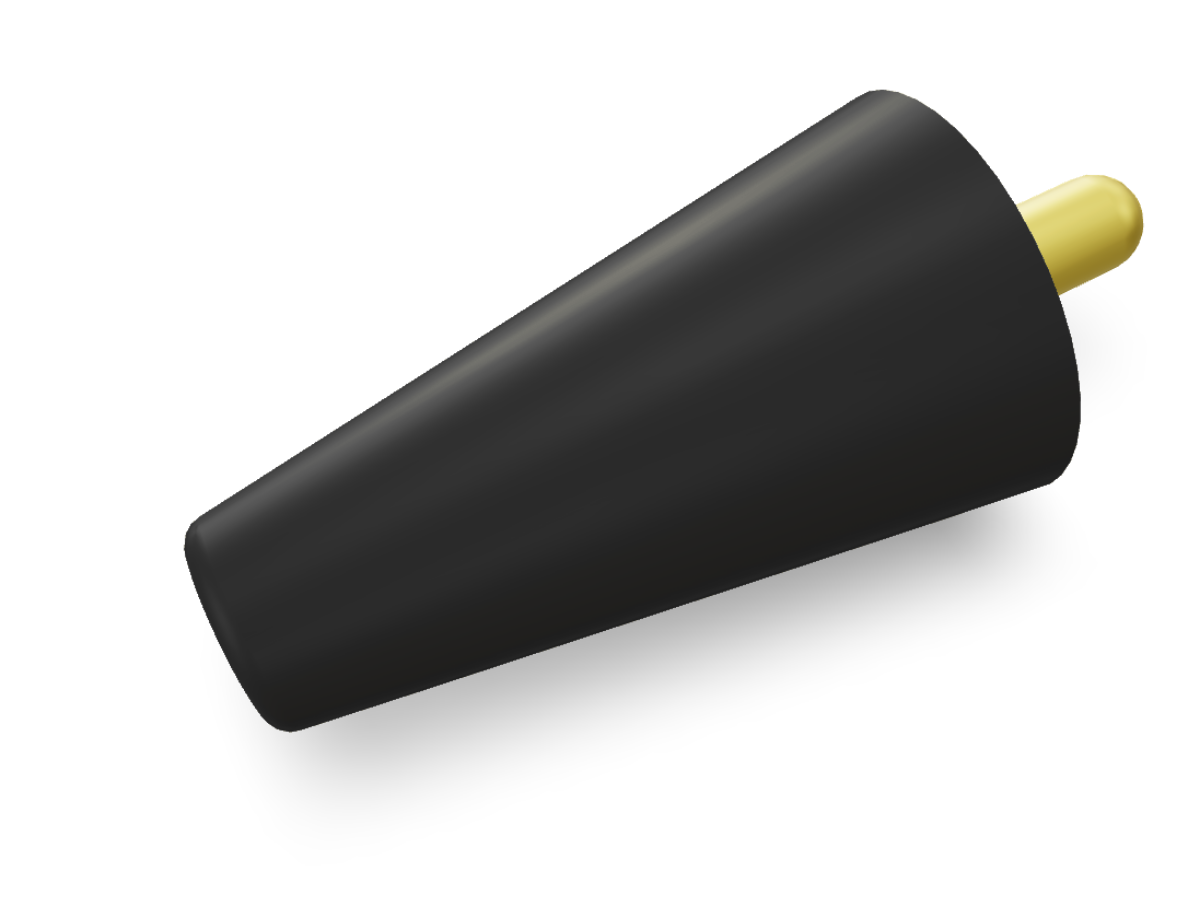

| Black | P8001-10-19 | P8001-10-12 |

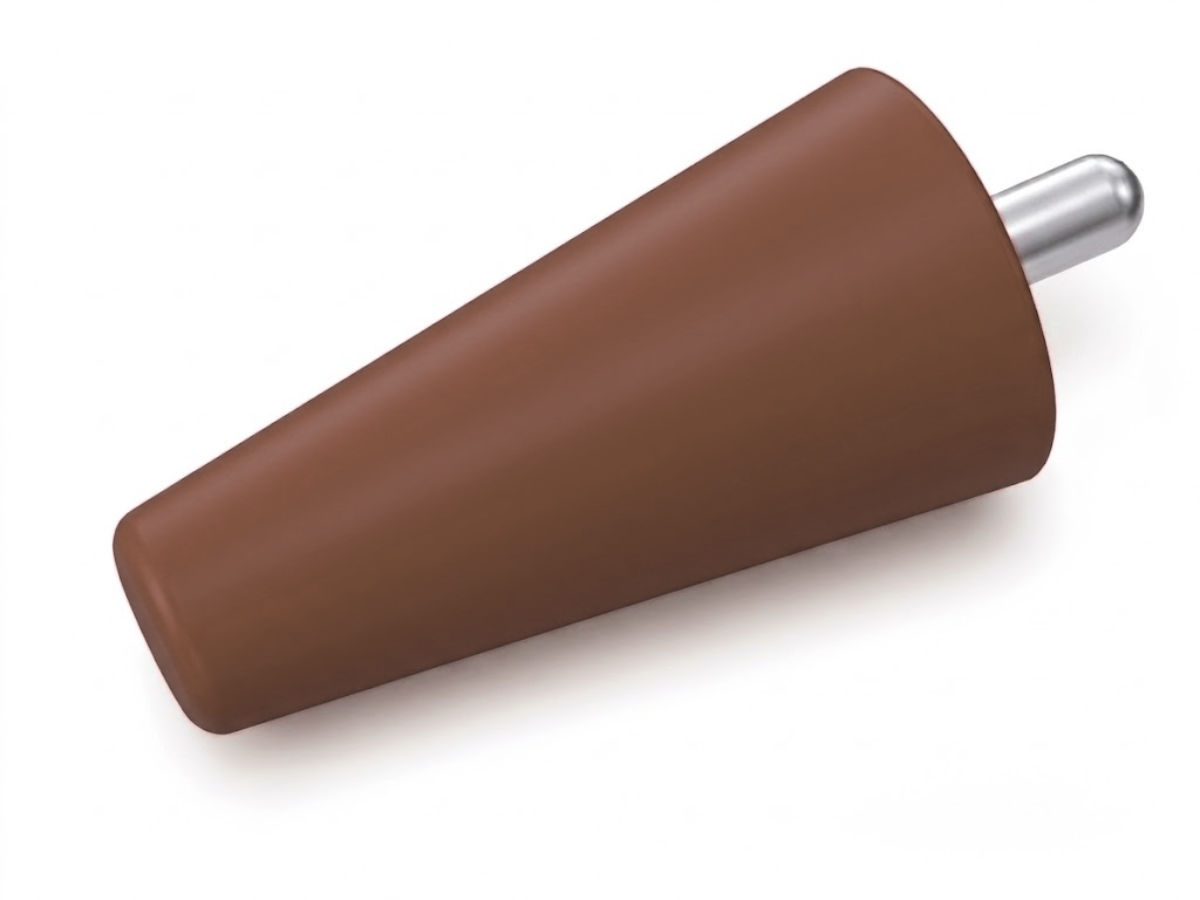

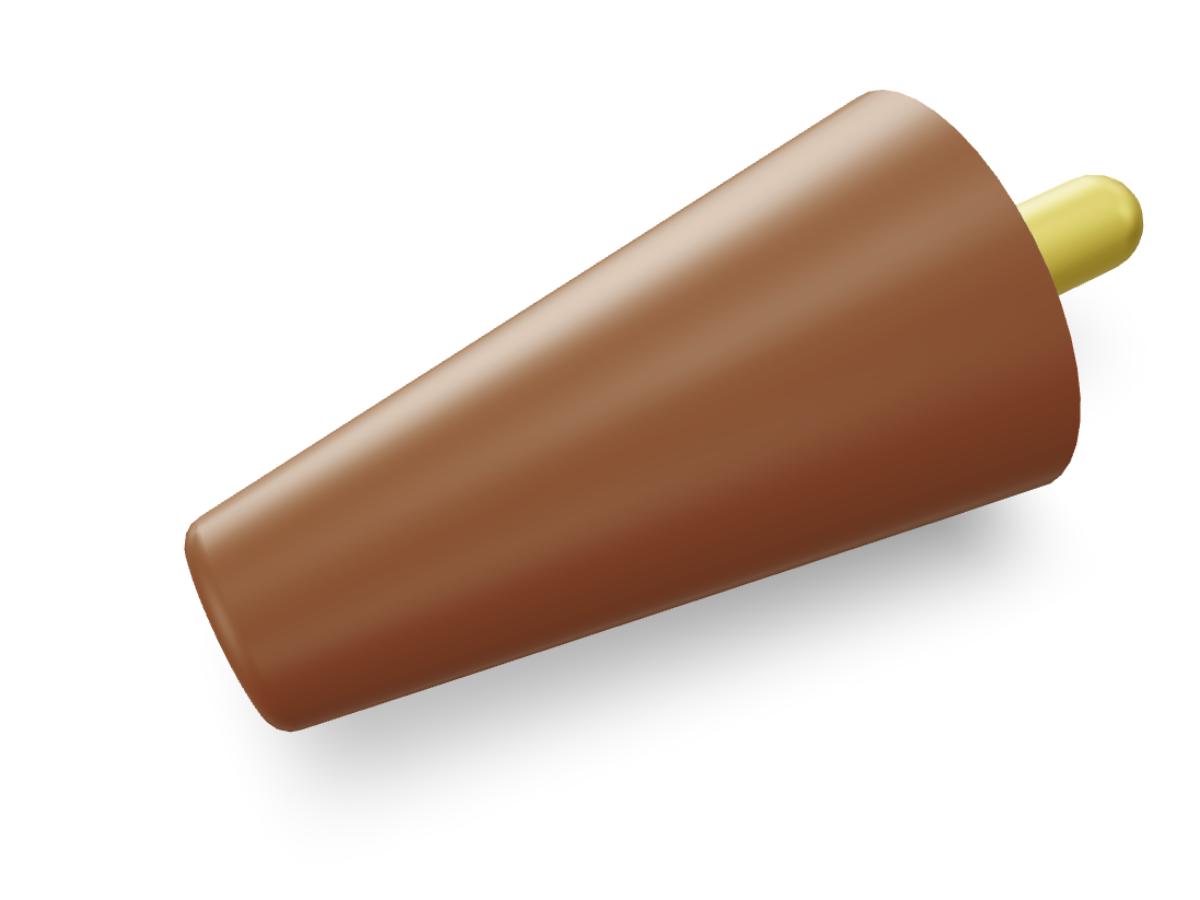

| Brown | P8001-11-19 | P8001-11-12 |

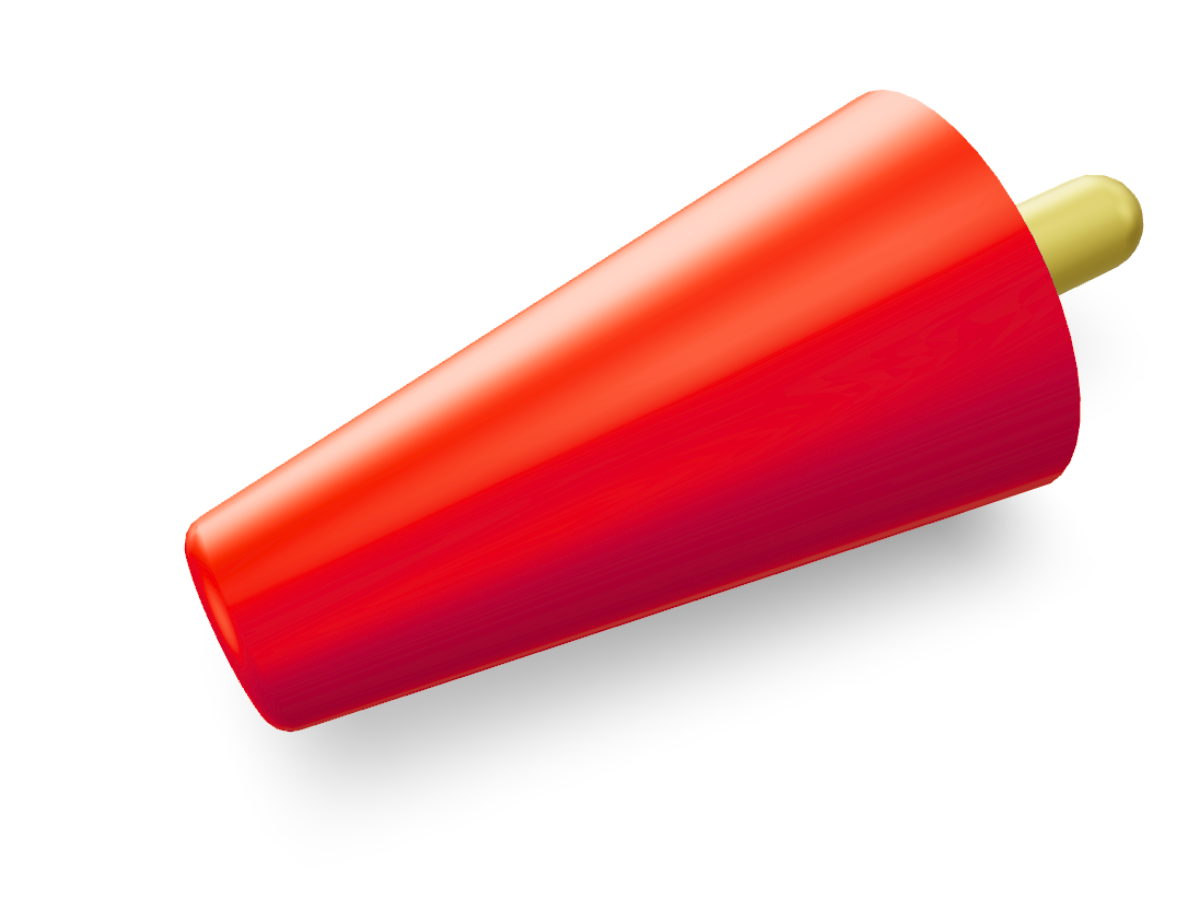

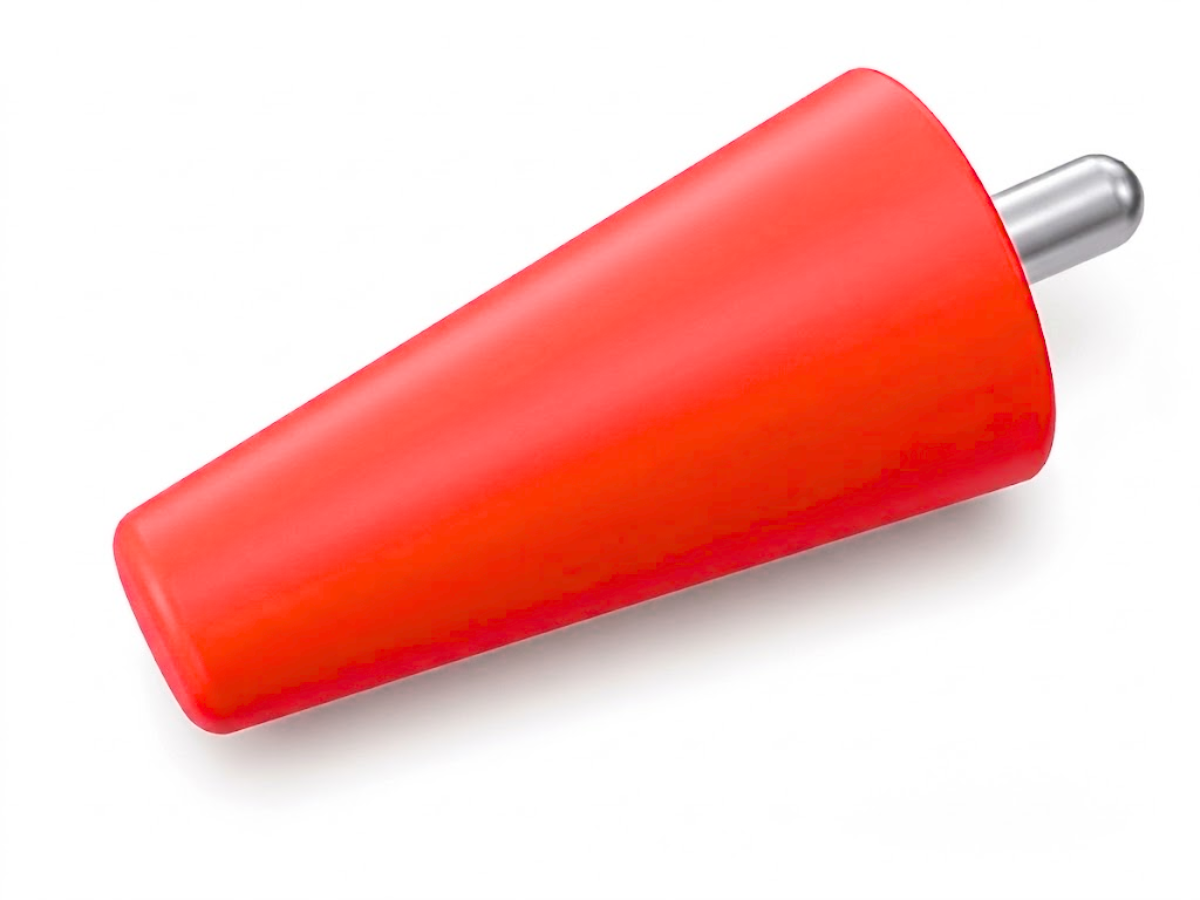

| Red | P8001-12-19 | P8001-12-12 |
| Orange | P8001-13-19 | P8001-13-12 |

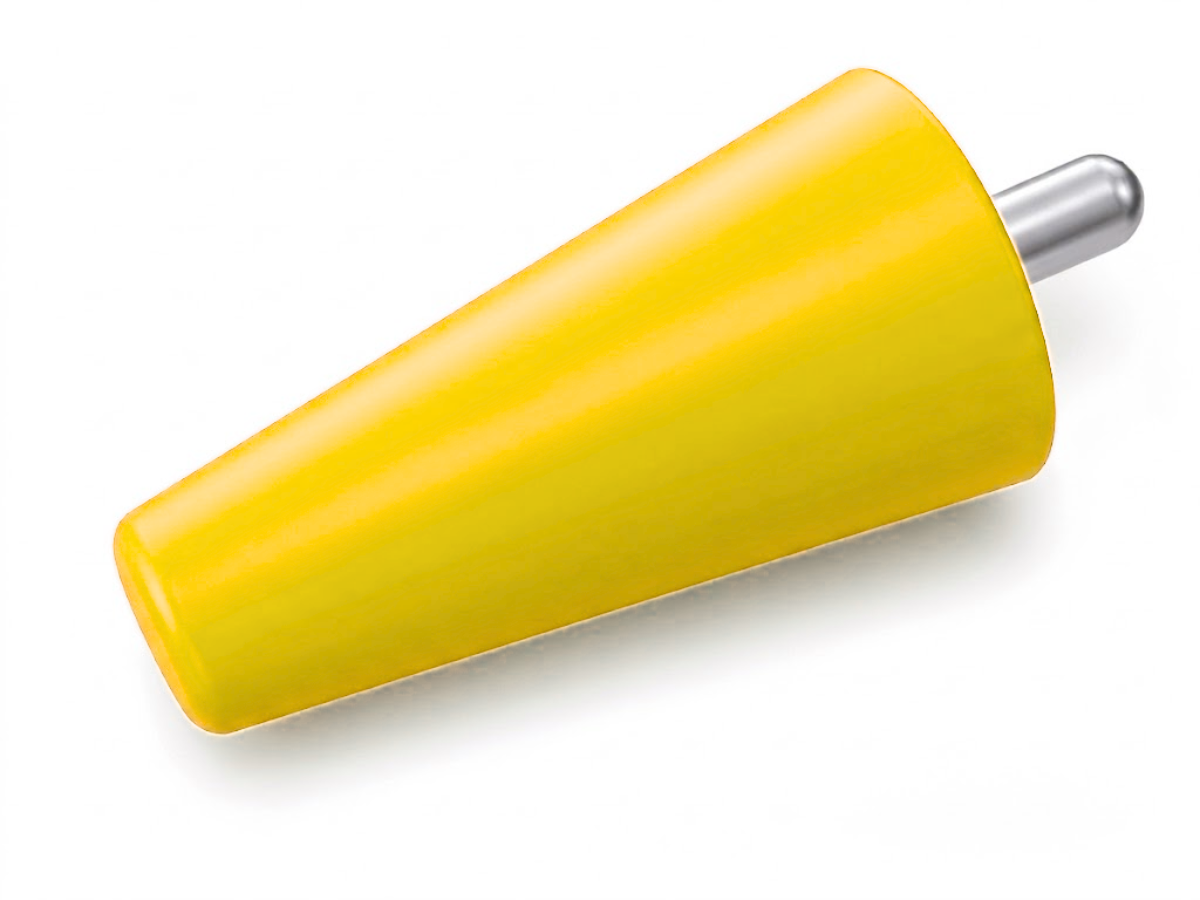

| Yellow | P8001-14-19 | P8001-14-12 |
| Green | P8001-15-19 | P8001-15-12 |

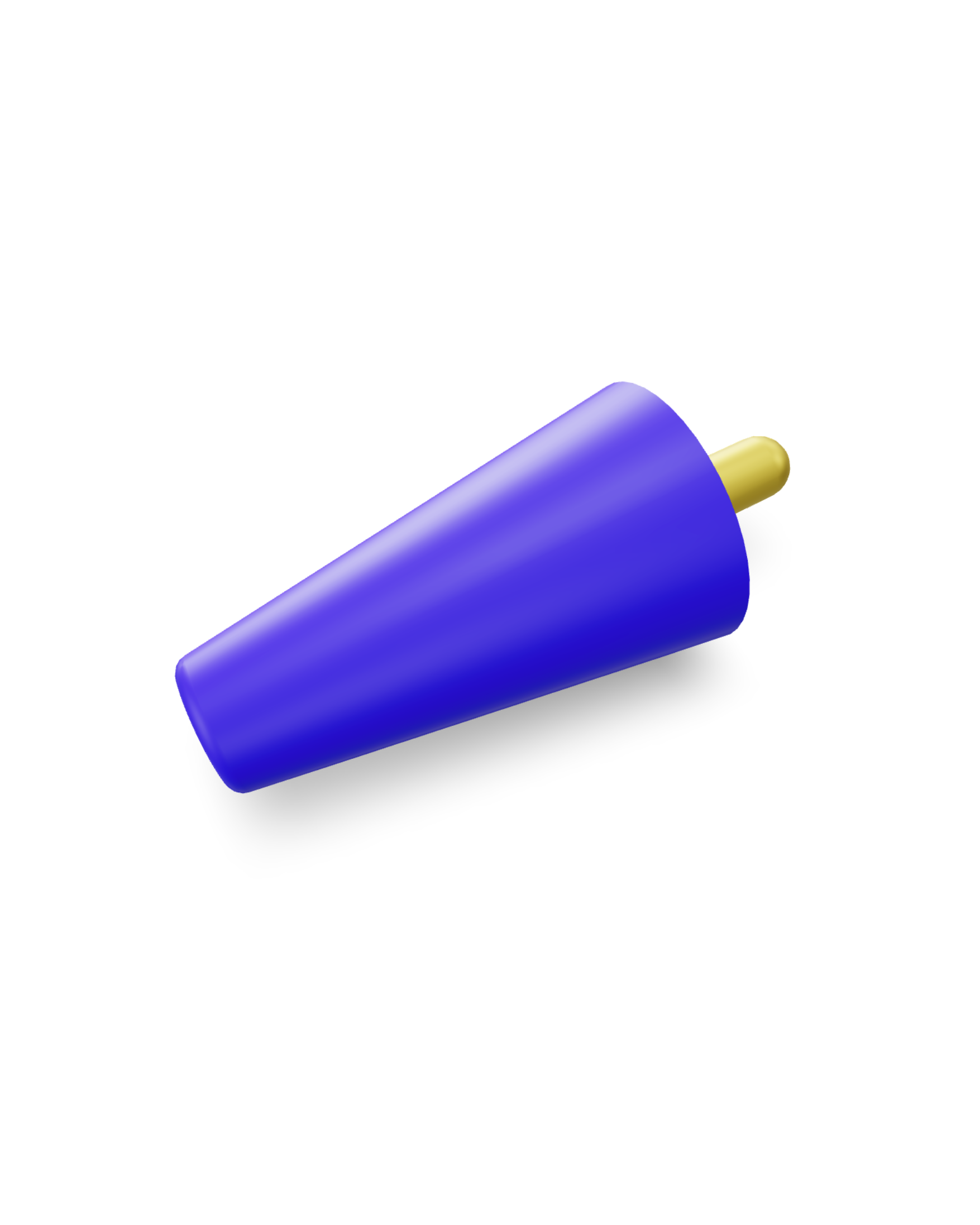

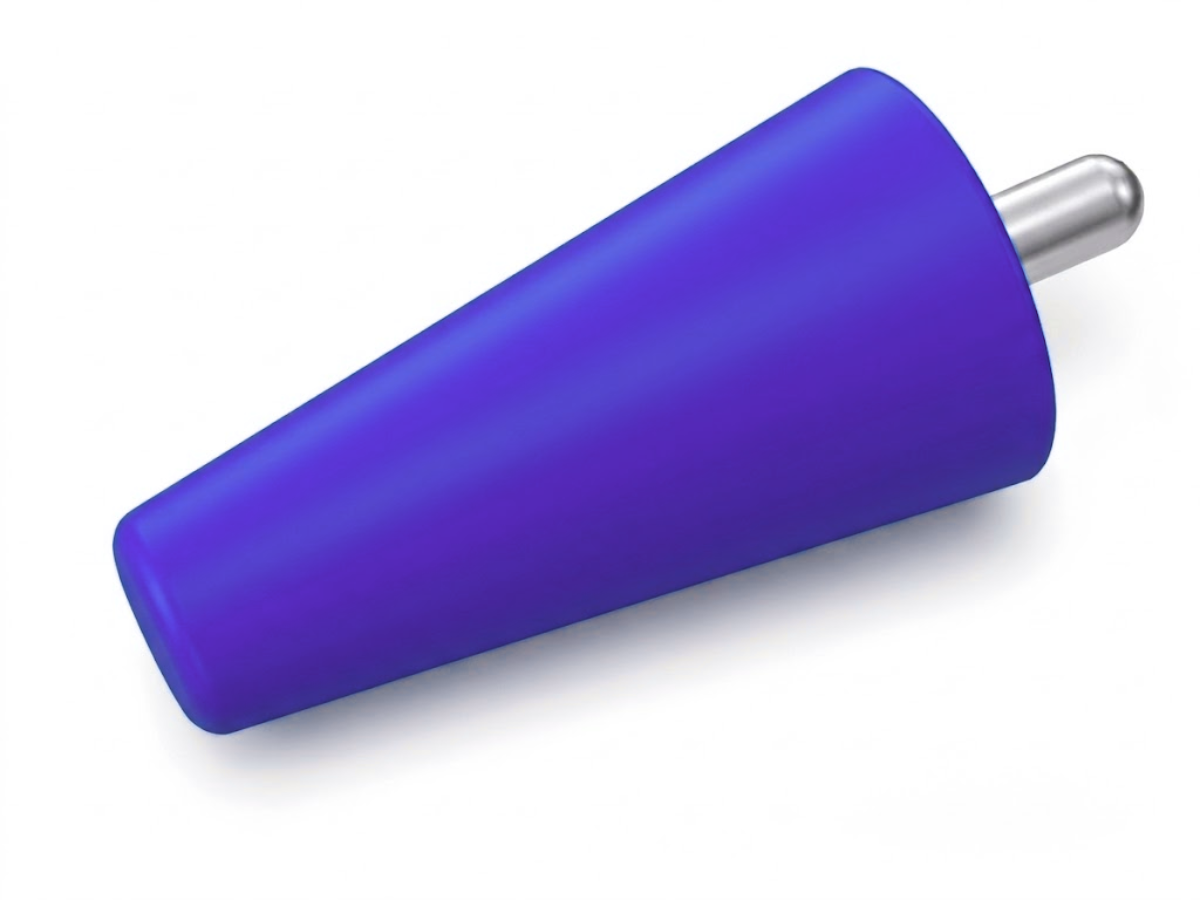

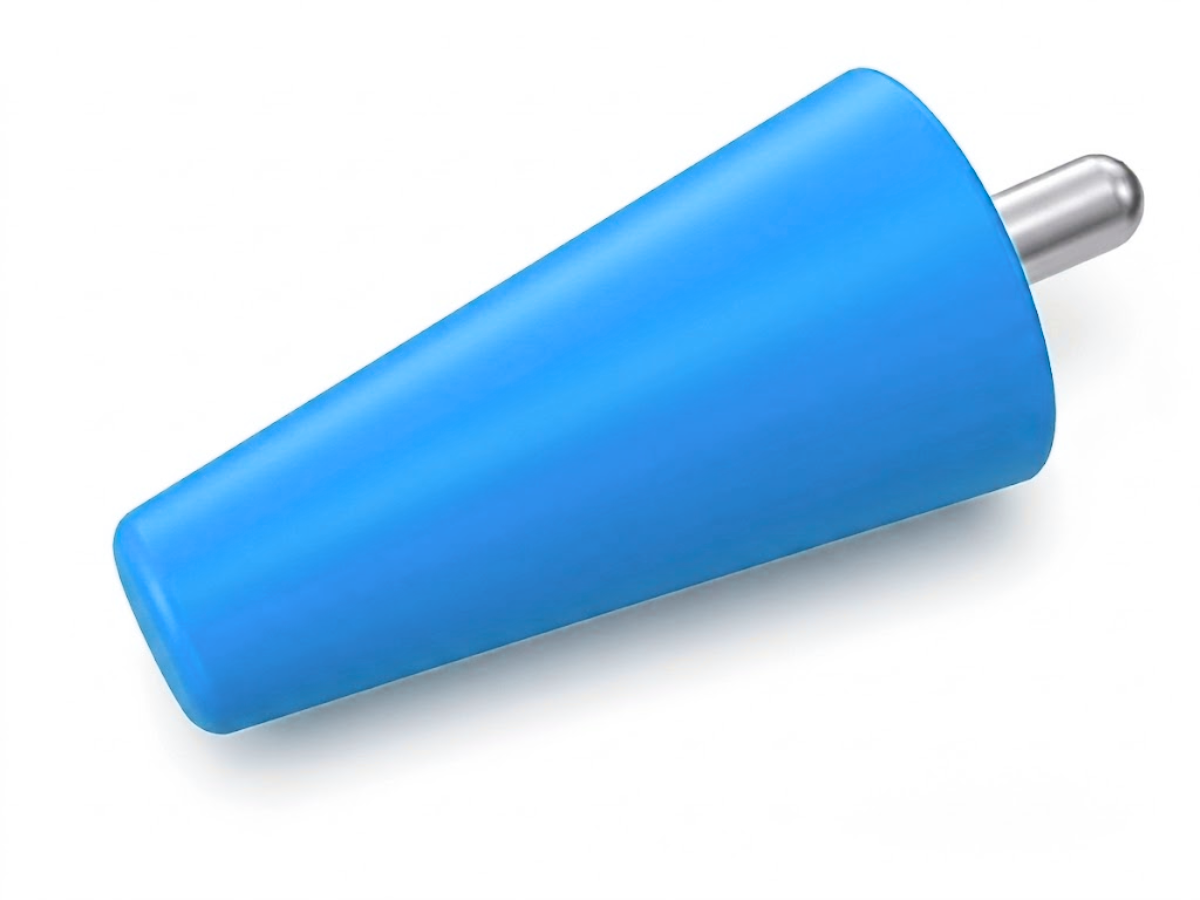

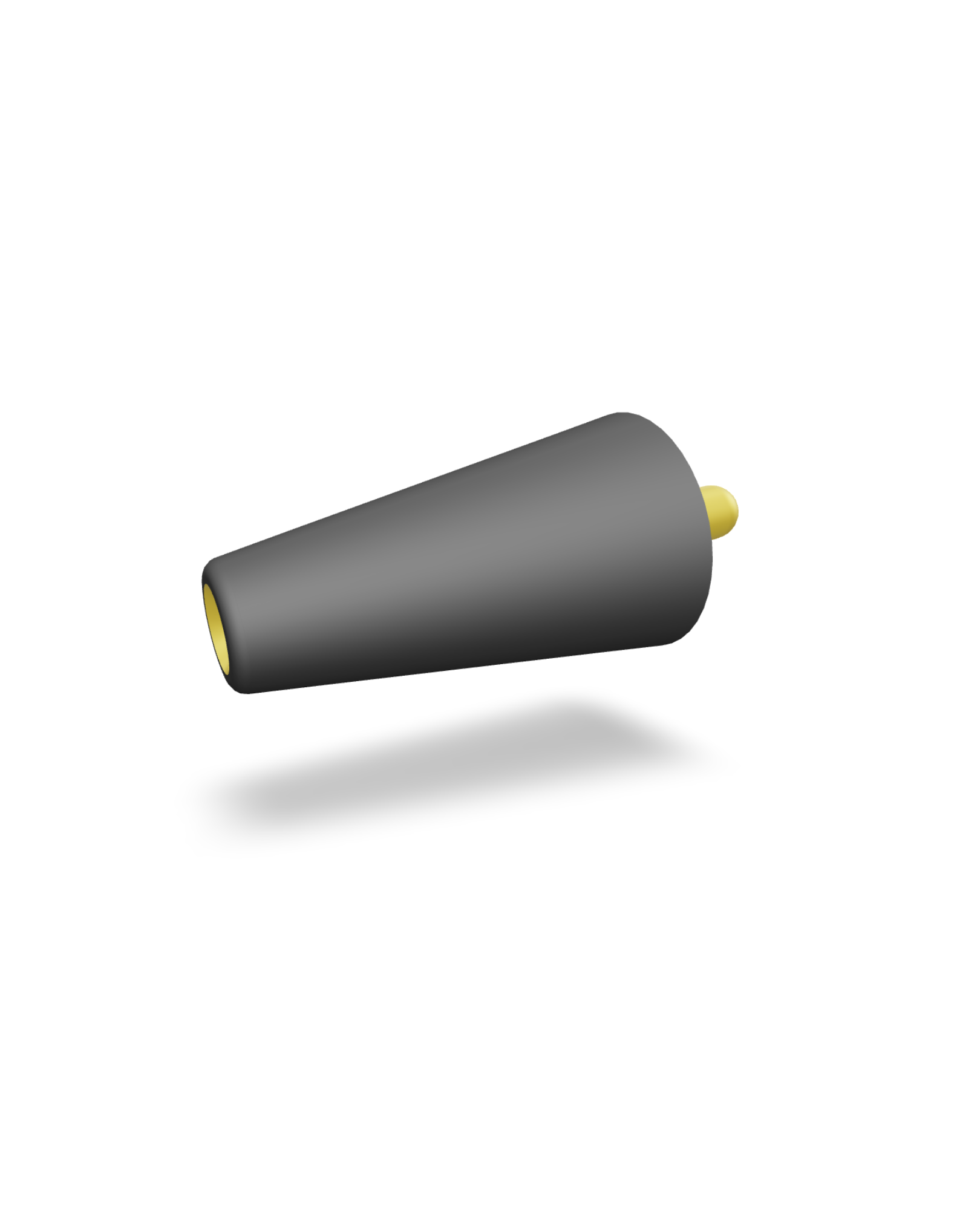

| Blue | P8001-16-19 | P8001-16-12 |
| Violet | P8001-17-19 | P8001-17-12 |
| Grey | P8001-18-19 | P8001-18-12 |

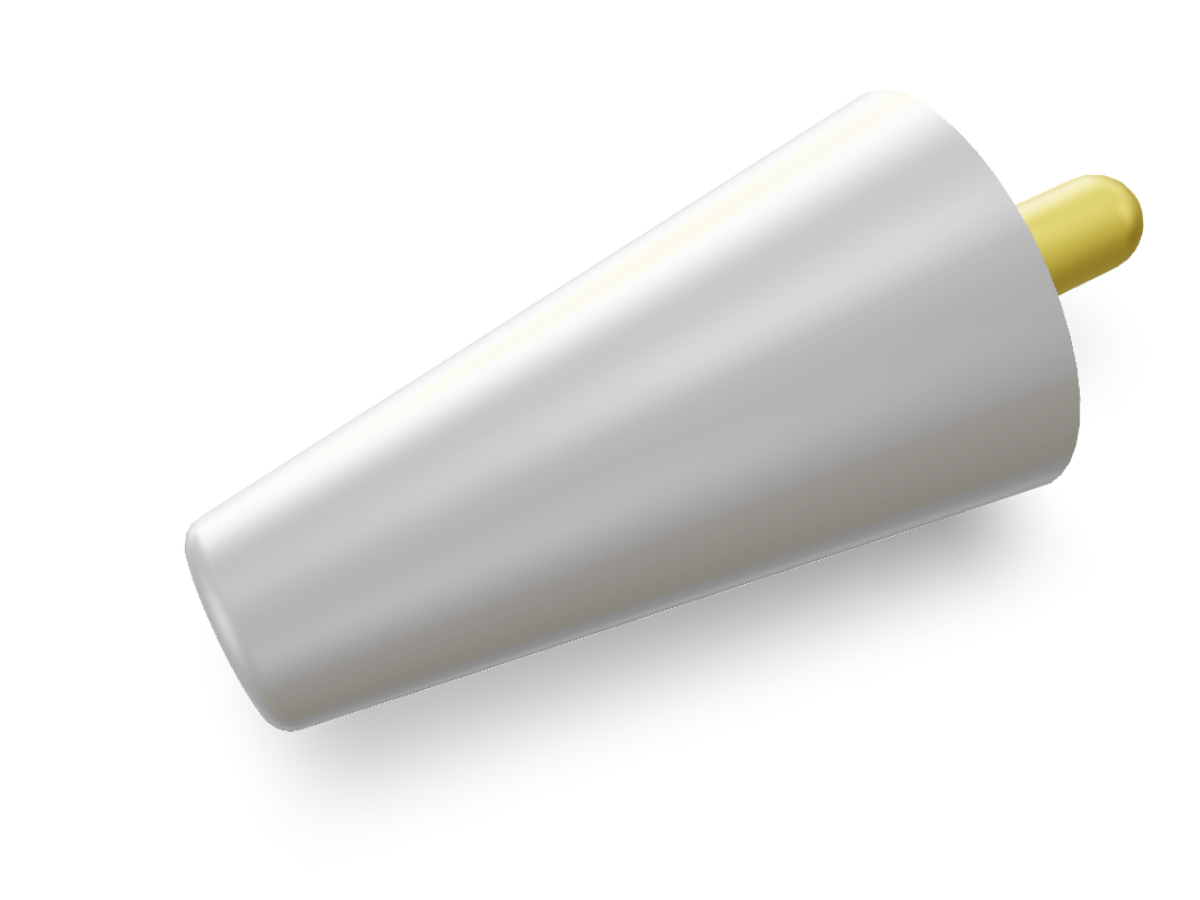

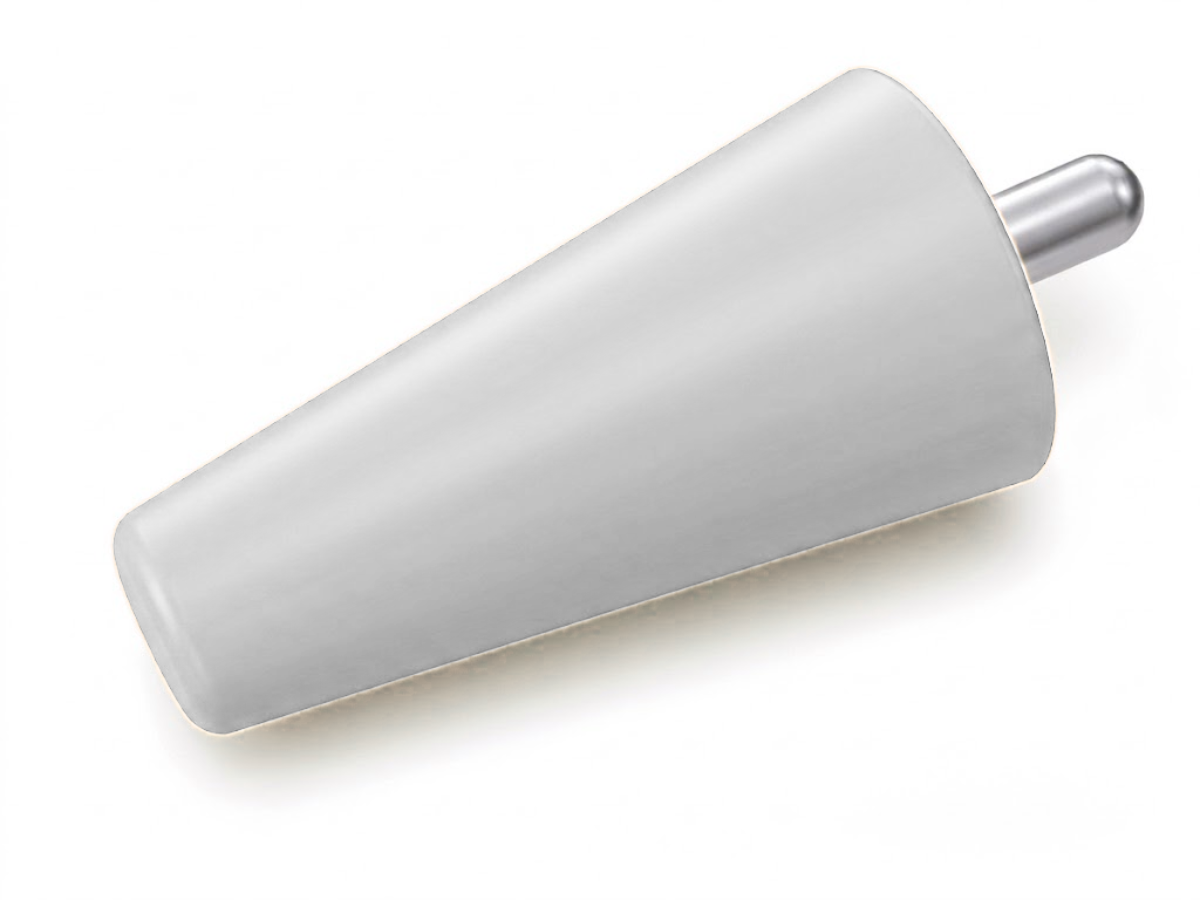

| White | P8001-19-19 | P8001-19-12 |
