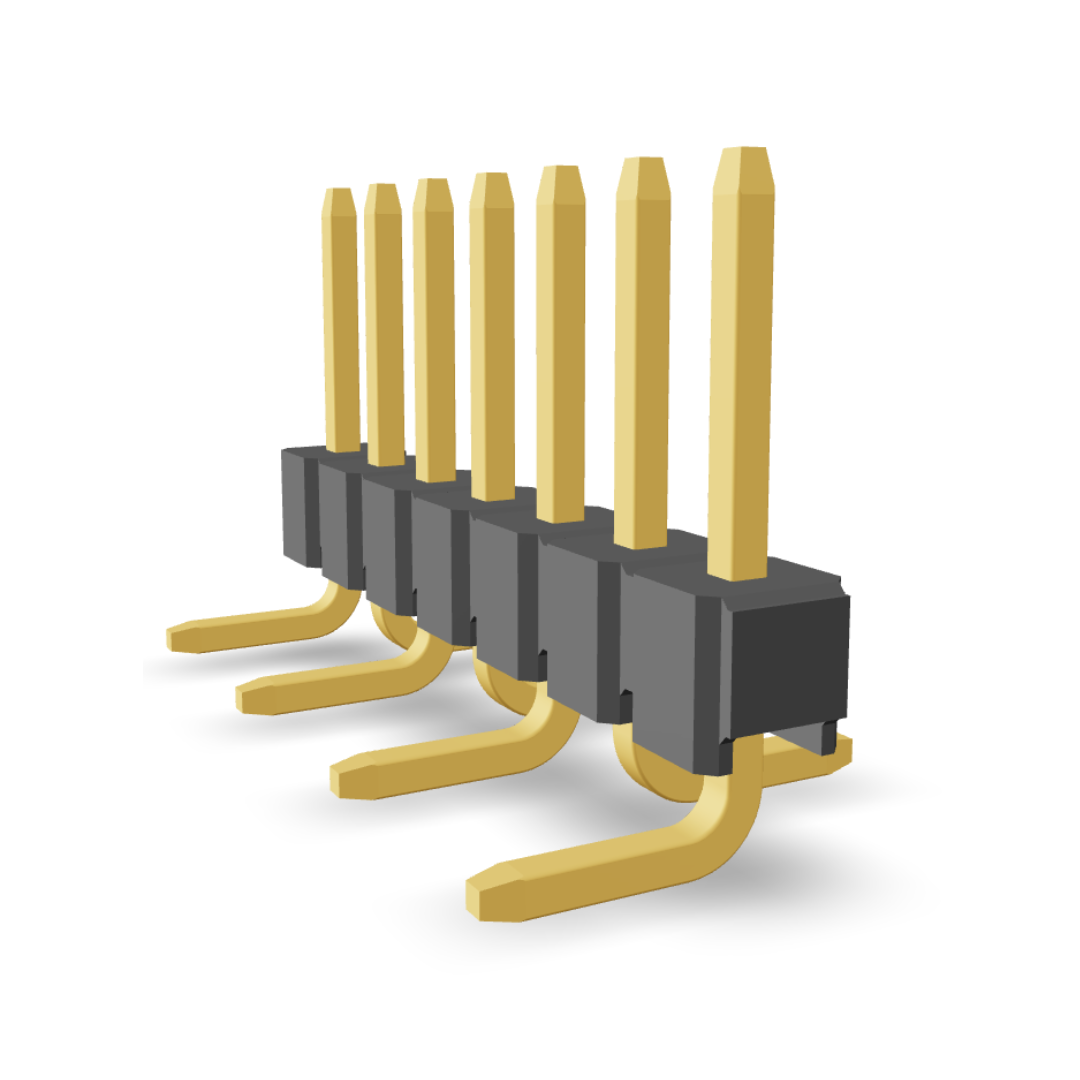

1.27×1.27mm Pitch Pin Header Surface Mount Single Row P9136
Description
Its single-row and surface-mount configuration ensure stable and reliable interconnections, compact electronic applications requiring precise and robust connectivity.
Specifications
| Current Rating | 1A |
|---|---|
| Insulation Resistance | 5000MΩ min |
| Dielectric Withstanding | 500V AC |
| Temperature Range | -40°c to +105°c |
Material & Finish
| Contact | Copper Alloy, Gold Plated |
|---|---|
| Insulator | Polyester, UL 94V-0 |
