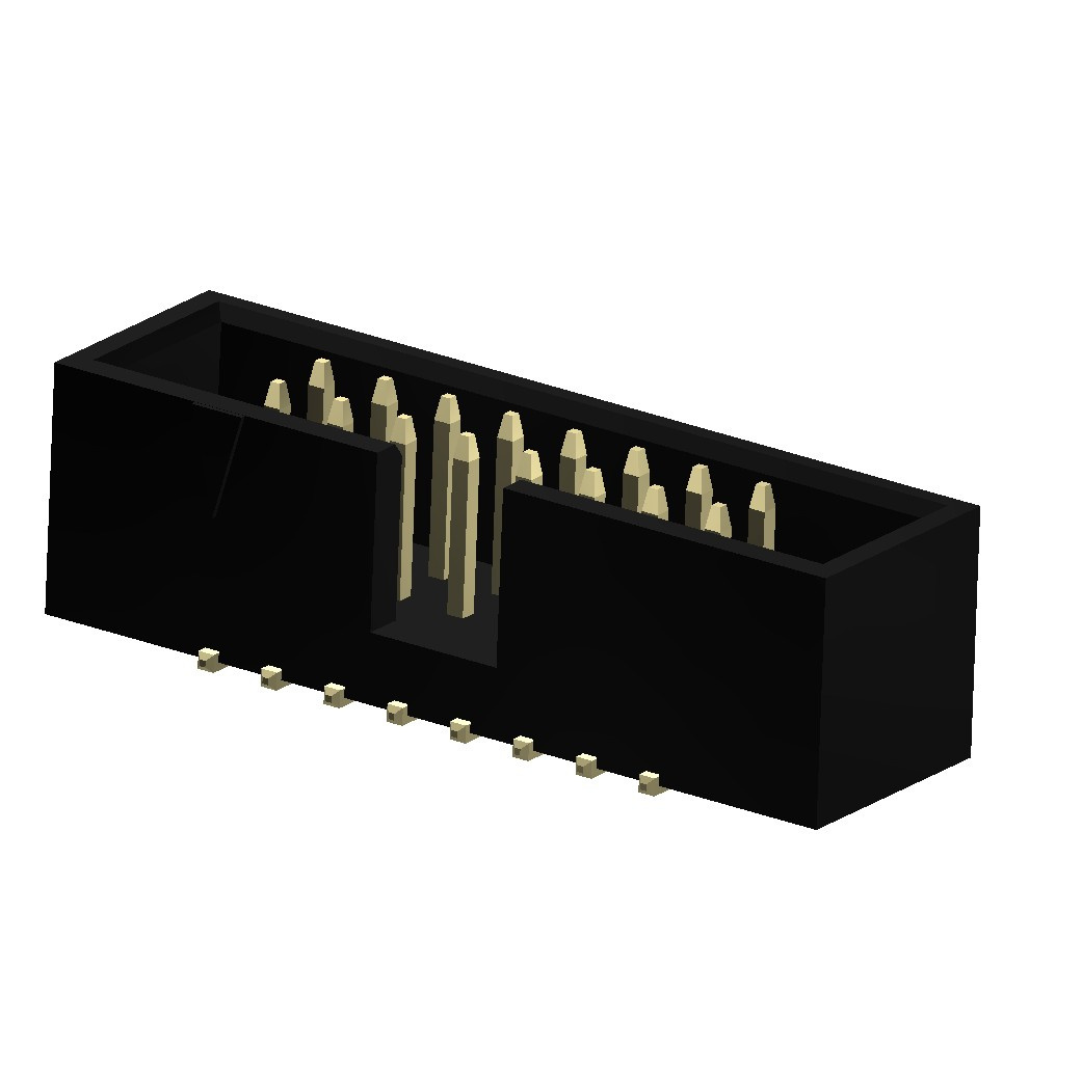

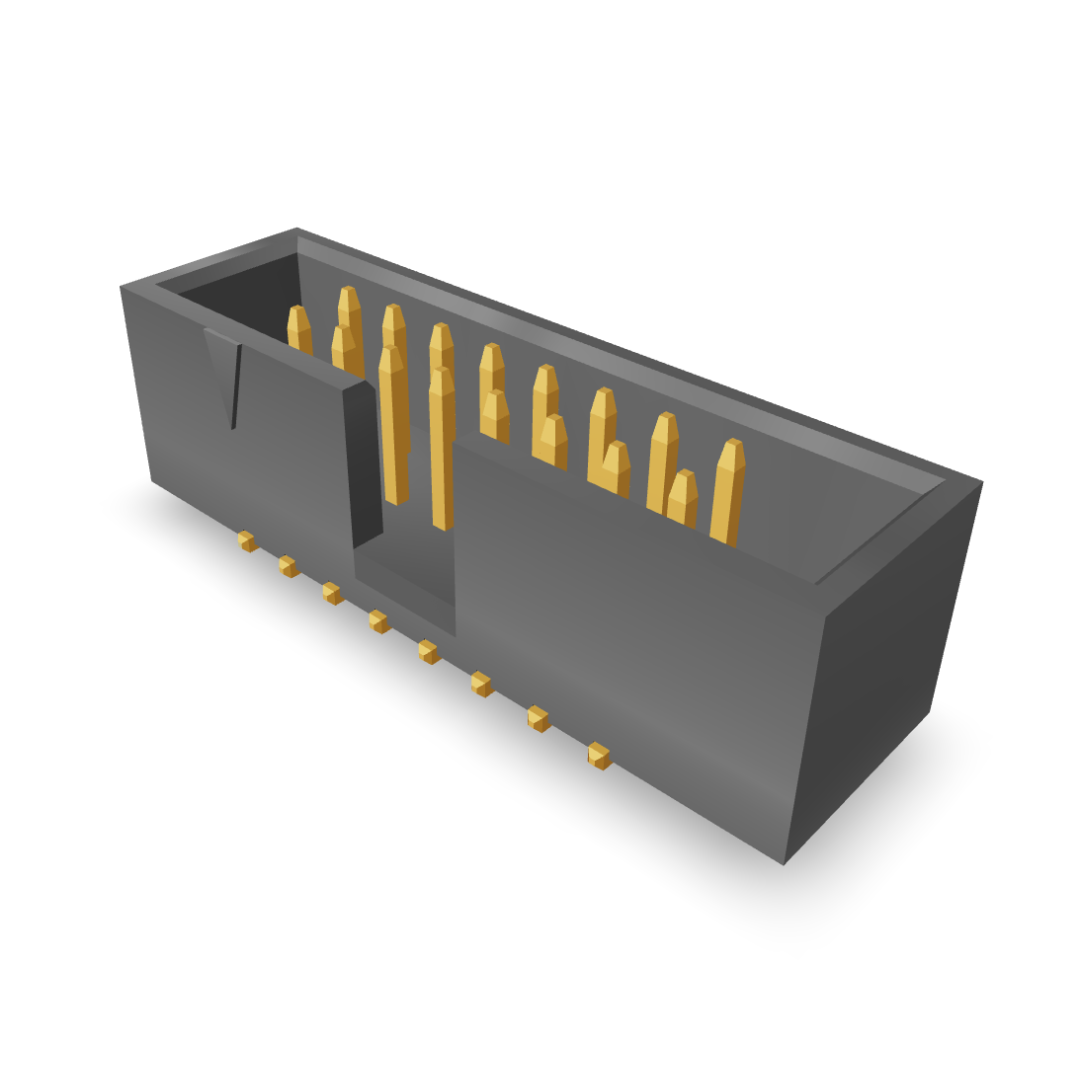

1.27×1.27 Pitch Box Header Double Row Surface Mount P9635S
Description
Its double-row and surface-mount configuration ensure stable and robust interconnections, electronic applications requiring precise and durable connectivity.
Material and Finish
Insulation
Material: |
Polyester |
Flammability: |
UL94V-0 / Nylon 6T |
Color: |
Black |
Contact
Material: |
Brass |
Solder Tails: |
Refer Table |
Packaging Type: |
Tube/Tray |
Electrical Characteristics
Current Rating: |
1A |
Insulation Resistance: |
1000M OHMS |
Dielectric withstanding: |
500V AC/Min |
Contact Resistance: |
20m OHMS Max |
Part No
P9635SXXX-35-XA
