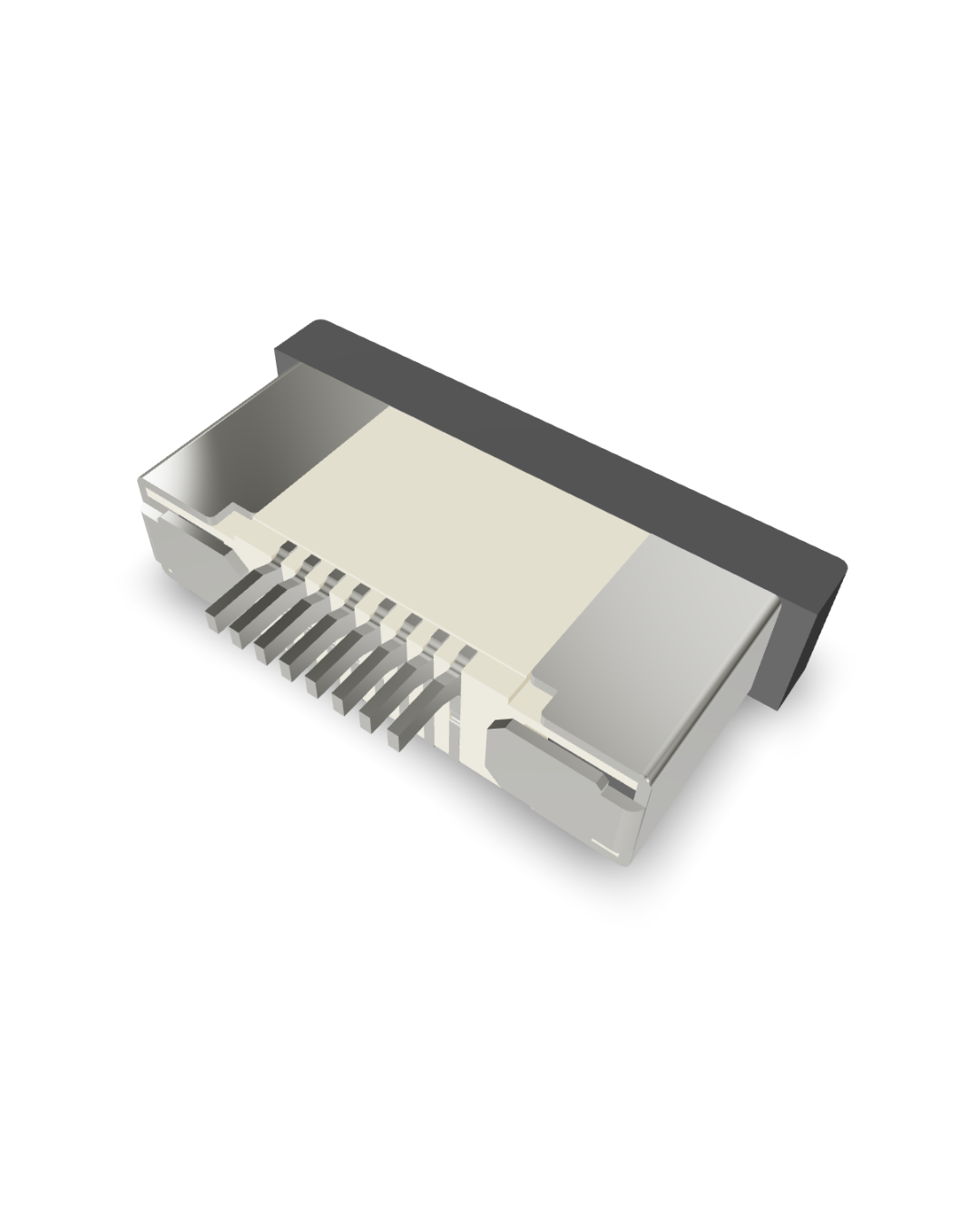

0.5mm PITCH FPC CONNECTOR TOP CONTACT(P7065T21-24XX-X)
Description
The P7065T is a precise 0.5mm pitch horizontal type top contact connector, designed for high-density electronic applications.
Material and Finish
Insulation and Contact
Housing: |
LCP |
Flammability: |
UL94V-0 |
Slider: |
Thermoplastic(UL94V-0) |
Contact: |
Copper Alloy, Tin -Lead Plated |
Solder Tab: |
Copper Alloy, Tin Plated |
Packaging Type: |
Tube/Tape and Reel |
Electrical Characteristics
Current Rating: |
0.4A AC/DC |
Insulation Resistance: |
500m OHMS Min |
Dielectric withstanding: |
200V AC/Min |
Contact Resistance: |
20m OHMS Max |
Voltage Rating: |
50V AC/DC |
Environmental Data
Temperature Range: |
-20℃ TO +85℃ |
Part No
P7065T21-24XX-X
