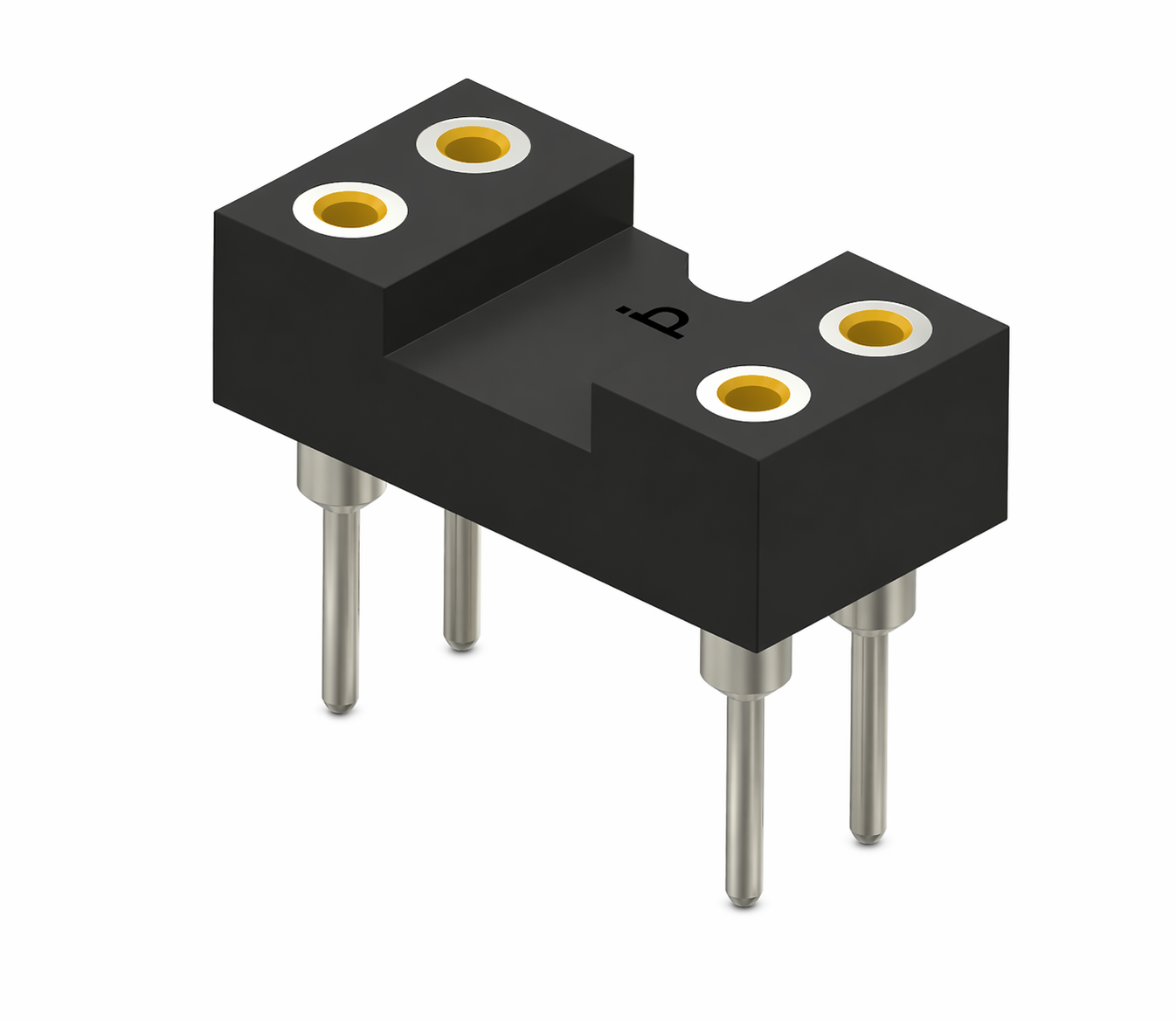

Pin Layout for IC Socket – P8053-XX-XX
- Description
- SPECIFICATION
- MECHANICAL PROPERTIES
- TYPE OF CLIP
- ELECTRICAL PROPERTIES
- ENVIRONMENTAL PROPERTIES
Description
Pin Layout
SPECIFICATION
| Connector Parts | Material & Finish |
|---|---|
| Insulator Body | Glass Filled Polyester, Self Extinguishing, rated UL94 V-0 |
| Outer Sleeve | Screw machined brass, plated 0.25µ gold or 5µ Tin-Lead over nickel plate |
| Inner Clip | Beryllium- Copper,heat-treated,Gold or Tin Plated |
| Pins(Without inner Clip) | Screw machined brass or phosphor bronze plated 0.25µ gold or 5µ Tin over nickel plate. |
MECHANICAL PROPERTIES
| Mechanical Life | 50 cycles |
|---|---|
| Insertion Force | Average insertion force with steel pin dia 0.41=<2N(0.2 kg) |
| Extraction Force | Average withdrawal force with steel pin dia 0.41=<0.5N(0.05 kg) |
TYPE OF CLIP
| 4 finger stamped contact | |
|---|---|
| Minimum insertion depth | 2.6mm |
| Maximum insertion depth | 3.6mm |
ELECTRICAL PROPERTIES
| Rated Current | 1A |
|---|---|
| Rated Voltage | 100V AC |
| Voltage Proof | 600V AC |
| Conatct Resistance | <20m ohms |
| Insulation Resistance | >5000M ohms@500 V DC |
| Capacitance | 0.3pf MAx.(1pf for shrink dip series) |
ENVIRONMENTAL PROPERTIES
| Operating temperature range | -65°C, +125°C |
|---|---|
| Resistance to soldering heat | +260°C, 10 seconds |
| Environment category | 65/125/21 |
