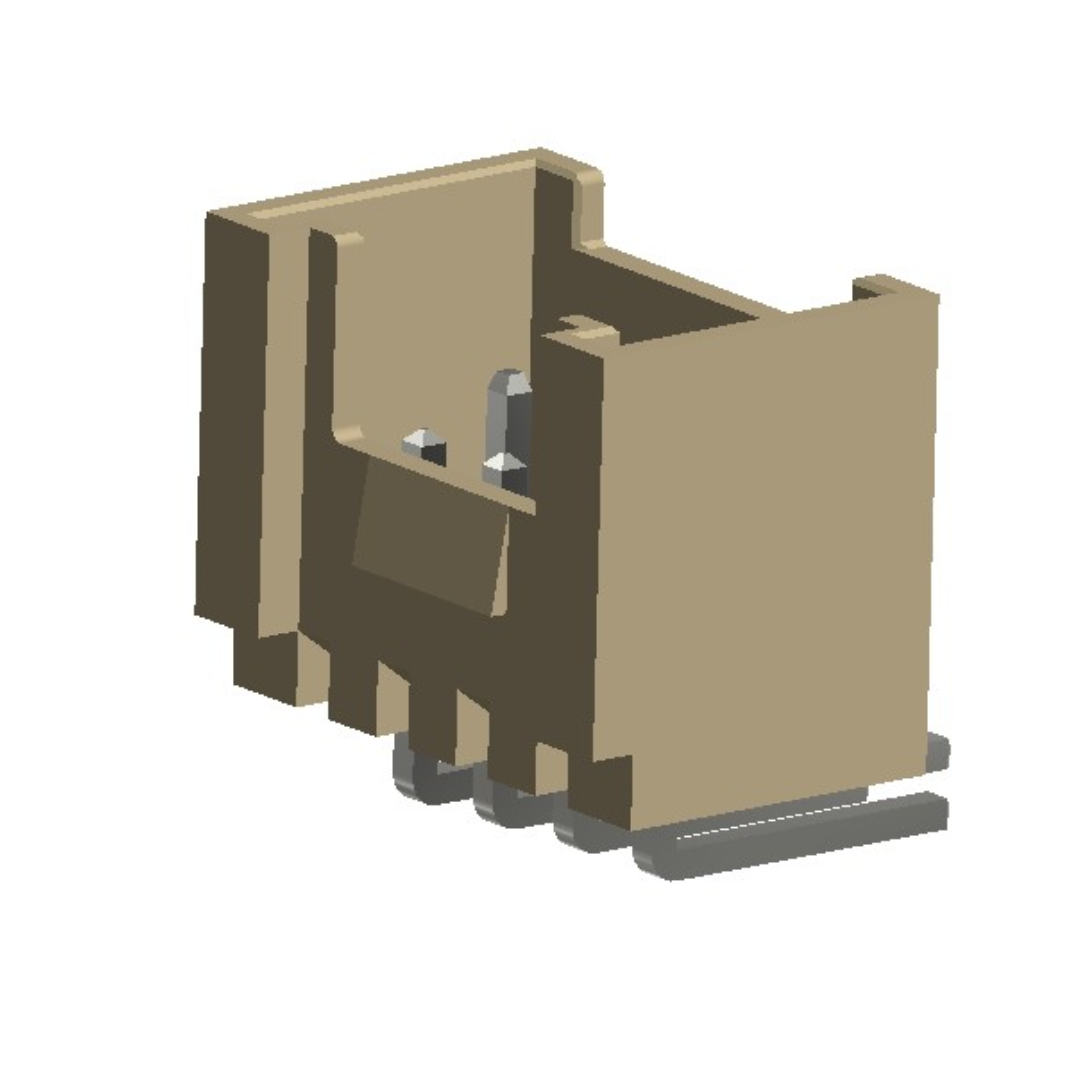

Wafer, Disconnectable Double Row(Right Angle) P9069R
Description
It is a 2.00mm pitch connector designed for board-to-wire connections, supporting up to 250V AC/DC and 3A current.
Specifications
| No. of Ways | 4-40 |
|---|---|
| Voltage Rating | 250V AC,DC |
| Current Rating | 3A AC,DC |
| Contact Resistance | 10mΩ max |
| Insulation Resistance | 1000MΩ min |
| Temperature Range | -25°C to +85°C |
| Dielectric Withsatnding | 800V AC/Minute |
| Crimp Terminal Wire Size | 22-28 AWG |
| Insulation O.D | 1.50mm max |
Material & Finish
| Crimp Contact | Copper Alloy, Tin Plated |
|---|---|
| Square Pin | Copper Alloy, Tin Plated |
| Insulator | Nylon 66 , UL94V-0 |
