Vertical ø2.03mm With Knurling P8021
Description

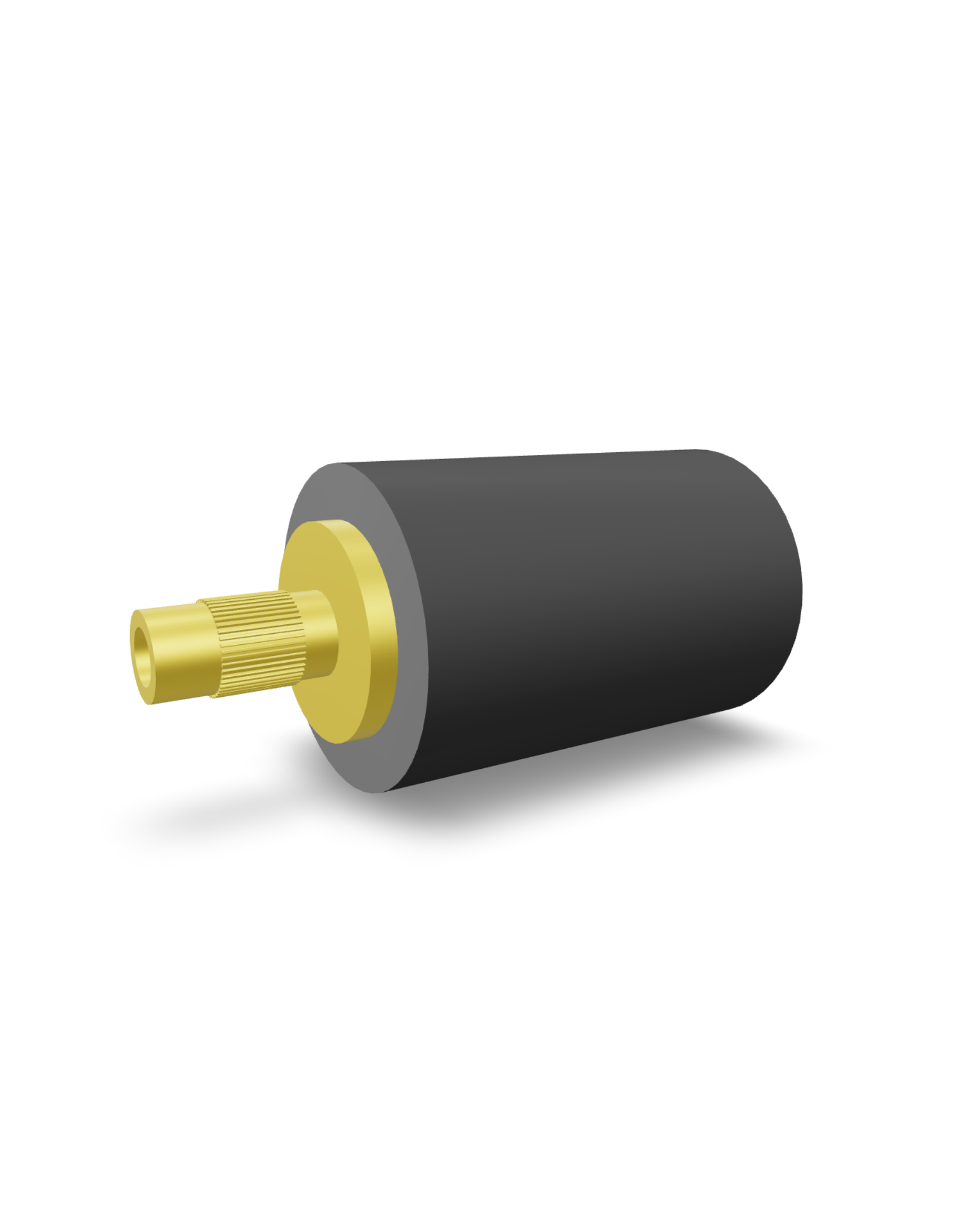

The P8021 is a vertical component with a diameter of 2.03mm, featuring a knurled surface for enhanced grip and stability.
Specifications
| Voltage Rating | 600V |
|---|---|
| Current Rating | 4A max |
| Contact Resistance | 5mΩ max |
| Insulation Resistance | 10000MΩ min |
| Dielectric Withstanding | 2500V rms |
| Temperature Range | -40ºC to +85ºC |
| Insertion Force | 2.2Kg max |
| Extraction Force | 0.18Kg max |
Material & Finish
| Contact | Phosphor Bronze, Silver/Gold Plated |
|---|---|
| Insulator | Glass Filled Nylon |
