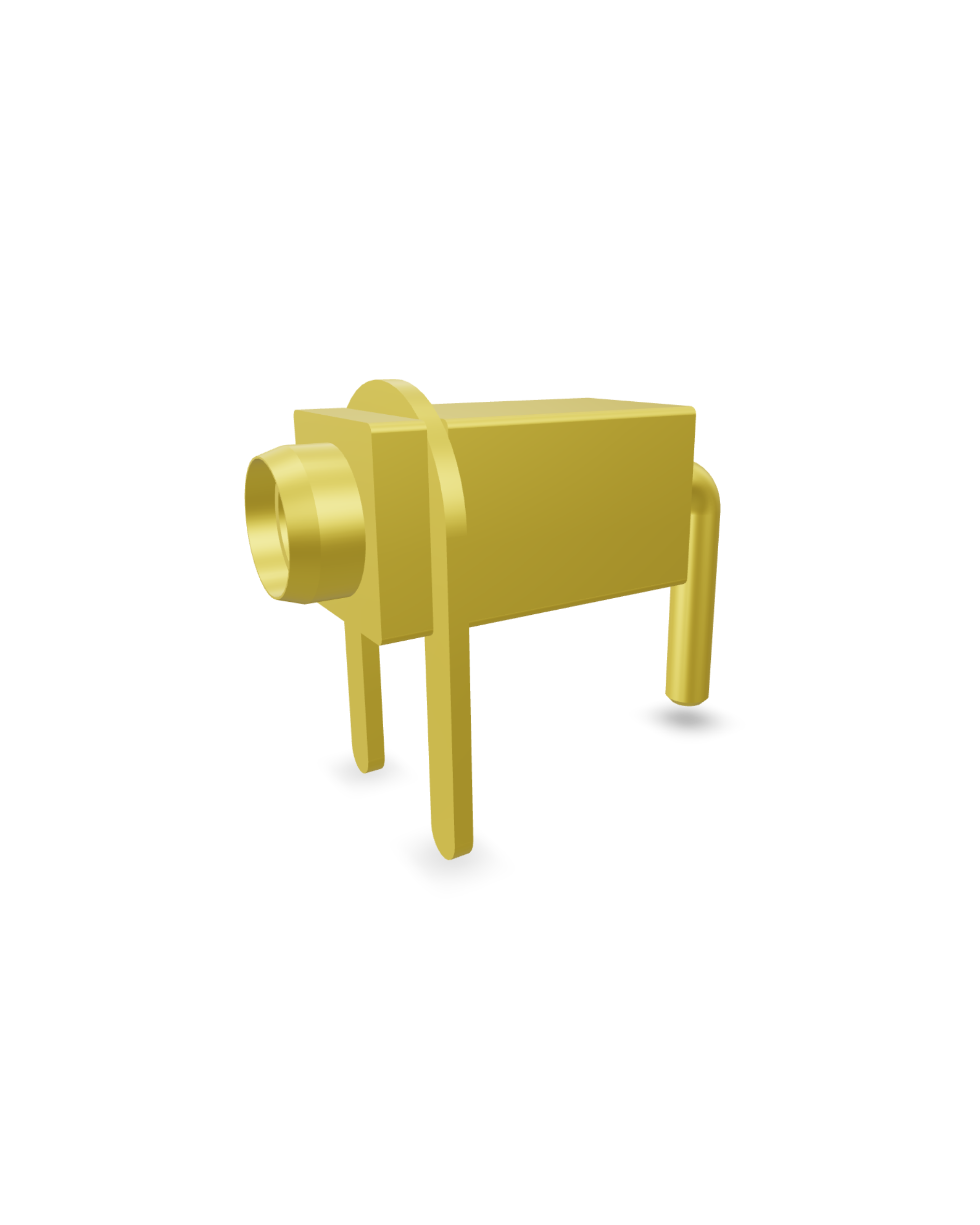

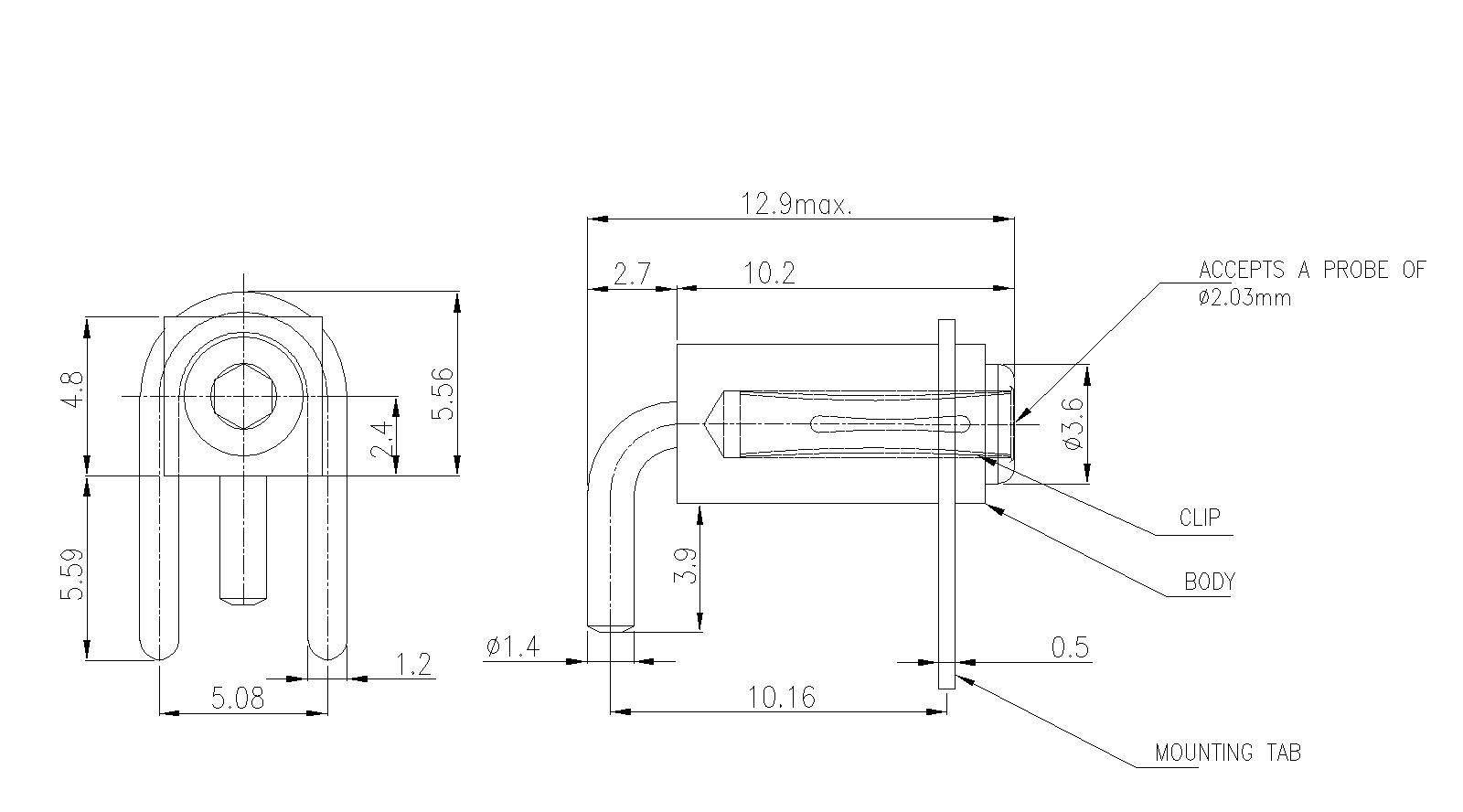

Square Body Non-Insulated Side Mounted Ø2.03mm(P8025A)
Description
This connector is well-suited for applications requiring reliable and secure connections in compact spaces.
Specifications
| Voltage Rating | 250V |
|---|---|
| Current Rating | 5.5A max |
| Contact Resistance | 4mΩ max |
| Temperature Range | -65°C to +85°C |
| Insertion Force | 2.2kg max |
| Extraction Force | 0.18kg min |
Material & Finish
| Inner Clip | Beryllium Copper, Gold Plated |
|---|---|
| Outer Sleeve | Brass, Gold Plated |
| Mounting Tab | Brass, Gold Plated |
Part No
| Finish | Part Number |
|---|---|
| Gold Plated | P8025A12-32 |
