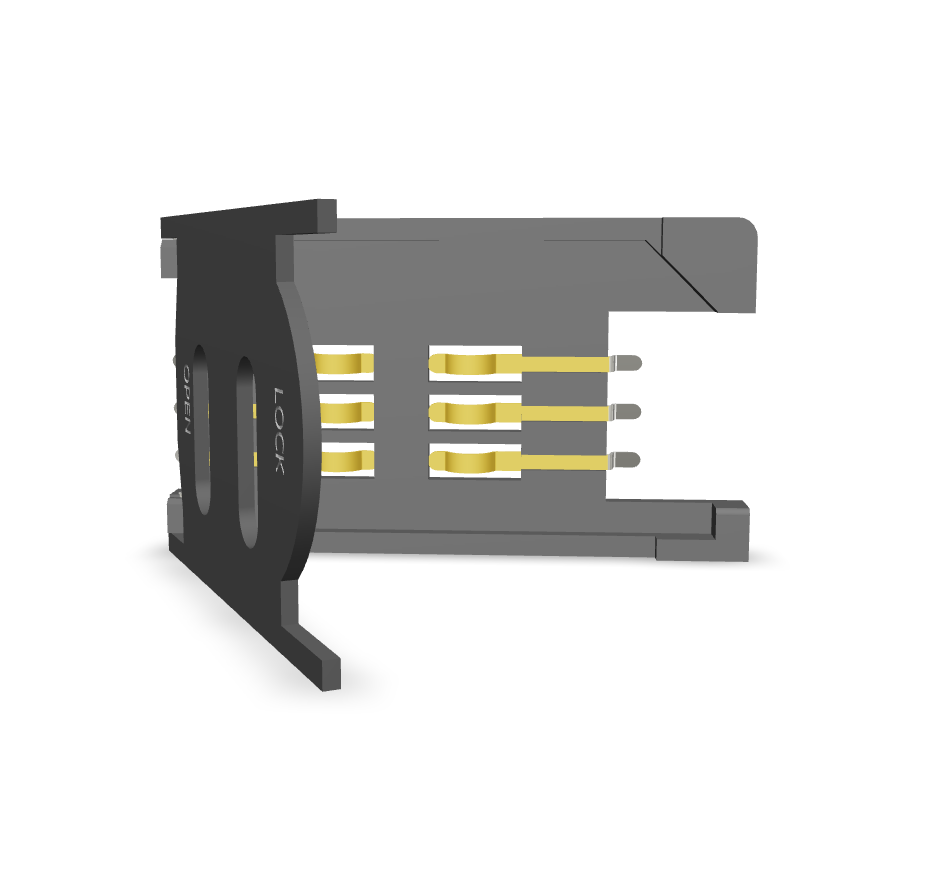

SIM CARD CONNECTOR ASSEMBLY WITH COVER TYPE, 6PIN, WITH PEG (PSIMC2-06-CP-6)
- Description
- Material and Finish
- Electrical Characteristics
- Mechanical Data
- Environmental Data
- Part No
Description
6-Pin SIM Card Connector Assembly with protective cover and mounting peg for secure and stable PCB integration.
Material and Finish
Material
Insulator: |
LCP,Black Colour ,UL94V-0 |
Contact: |
Phosphor Bronze, 3µ” Gold Plating on Contact Area, 100µ” Tin Plating on Solder Area |
Electrical Characteristics
Current Rating: |
1A MAX |
Insulation Resistance: |
1000M OHMS Min |
Dielectric withstanding: |
500V AC for one Minute |
Contact Resistance: |
10m OHMS Max |
Voltage Rating: |
50 V AC |
Mechanical Data
Mechanical Life: |
500 Cycles Min |
Environmental Data
Temperature Range: |
-40°C TO +85℃ |
Part No
PSIMC2-06-CP-6
