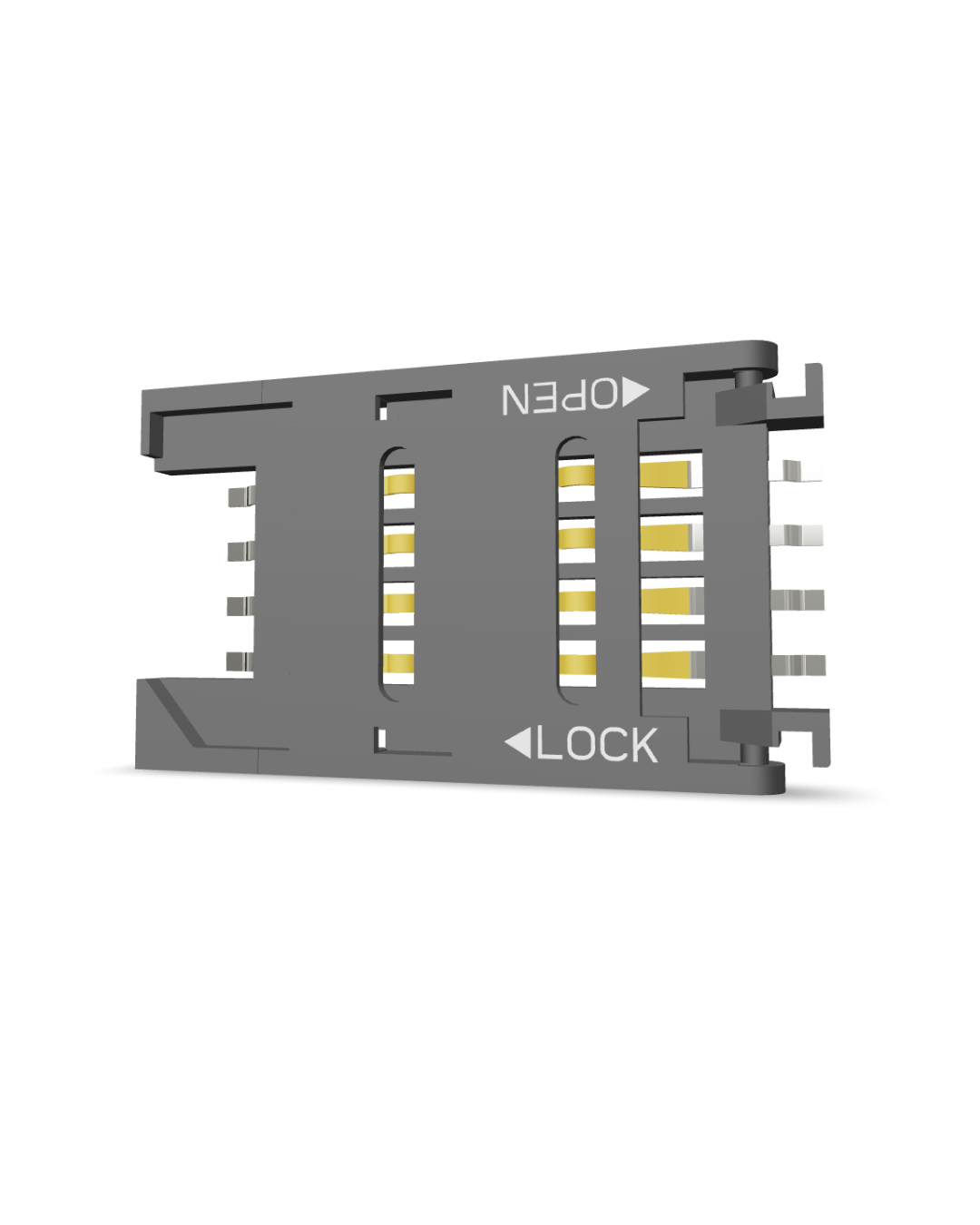

PSMIC14 Sim Card Holder With Pegs, 2.20mm Thick (Pitch: End-End=25.60mm)
Description
The PSMIC14 is a SIM card holder with pegs, 2.20mm thickness, and an end-to-end pitch of 25.60mm, designed for secure and precise SIM card placement.
Specifications
Body: |
Thermoplastic |
Flammability: |
UL 94V-0 |
Color: |
Black Color |
Contact: |
Phosphor Bronze, Selective Gold Plated |
Packaging Type: |
Bulk Packing |
Material and Finish
Insulation Resistance: |
>1000M OHMS Min. at 500V DC |
Contact Resistance: |
50m OHMS Typical, 100m OHMS max |
Electrical Characteristics
Mechanical Life: |
10000 Cycles Min |
Wave: |
Not Applicable |
Part No
PSIMC14-08-CP-6
