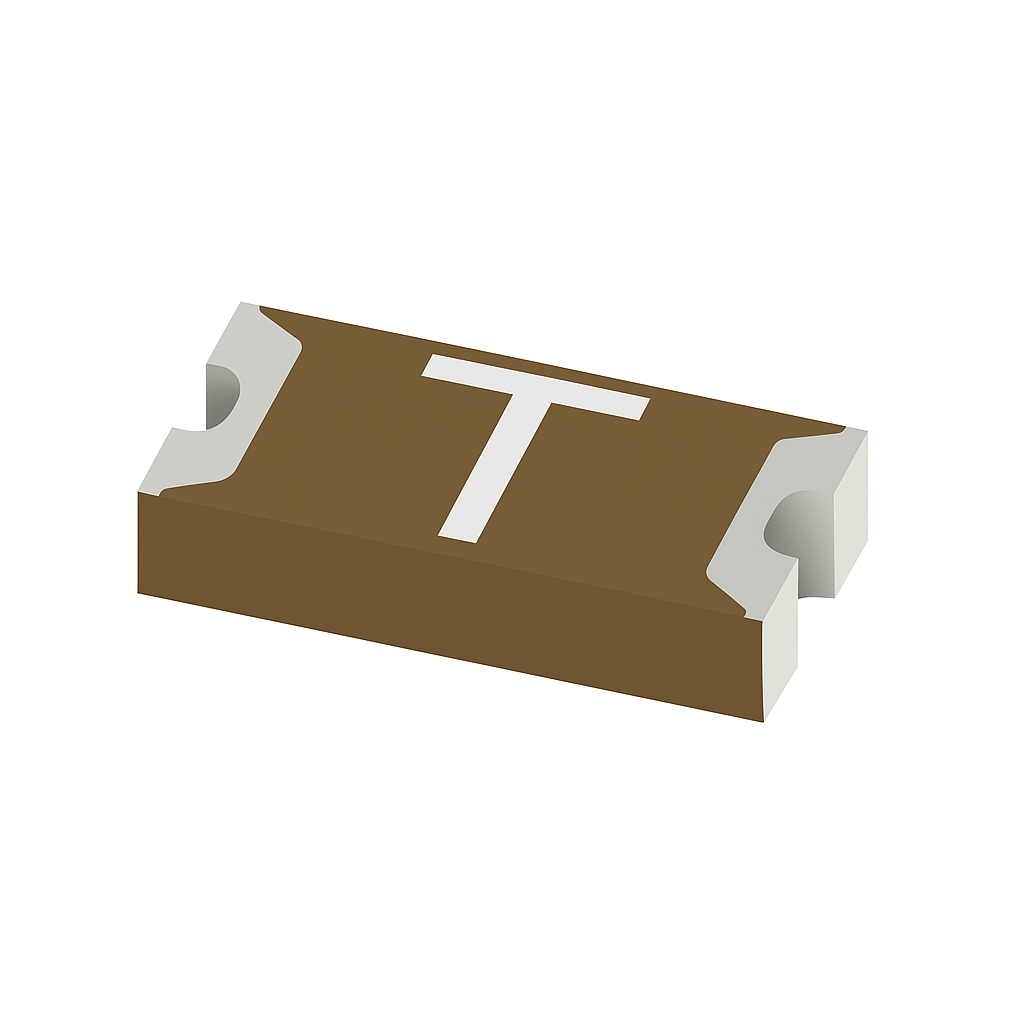

PSM 12 (1206)Moulded Surface Mount Fuses
Description
PSM 12
SPECIFICATIONS
| Interrupting Capacity | 1A & Less | 50A AC / DC |
|---|---|---|
| 1.5A-7A | 35A AC / DC | |
| Rated Voltage | 63V | 0.5A-1A |
| 32V | 1.5A-7A |
TIME CURRENT CHARACTERISTIC
| Rated Current (In) | Overload | Min | Max |
|---|---|---|---|
| 500mA-7A | 1 In | 4hr | – |
| 500mA-7A | 2 In | – | 60s |
| 500mA-7A | 3 In | – | 3s |
ORDERING PART No
| PSM12…mA (In ≤ 750mA) or |
|---|
| PSM12…A (In ≥ 1A) |
