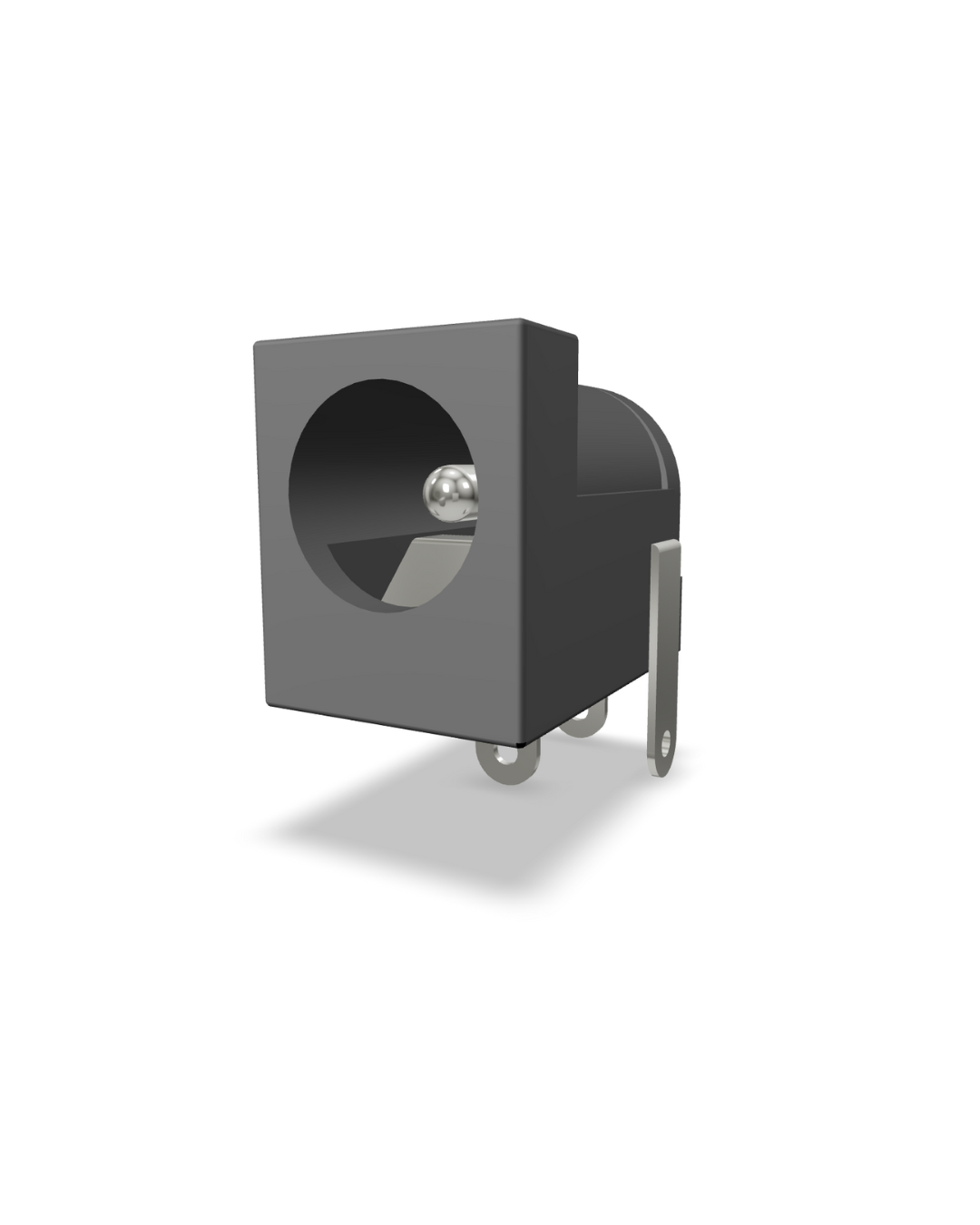

Ø2.50mm Mini DC Power Jack, Right Angle PDCJ01-07
Description
This jack features a 2.50mm diameter pin and a right-angle configuration, making it ideal for space-constrained applications.
Specifications
| Contact Resistance | 100mΩ max |
|---|---|
| Insulation Resistance | 100mΩ min |
| Temperature Range | -16°C to +60°C |
| Dielectric Withstanding | 5000V AC for 1minute |
Material & Finish
| Crimp Contact | Copper Alloy, Nickel Plated |
|---|---|
| Insulator | PBT, GF UL94V-0/ PC |
| Terminals | Copper Alloy, Silver Plated |
