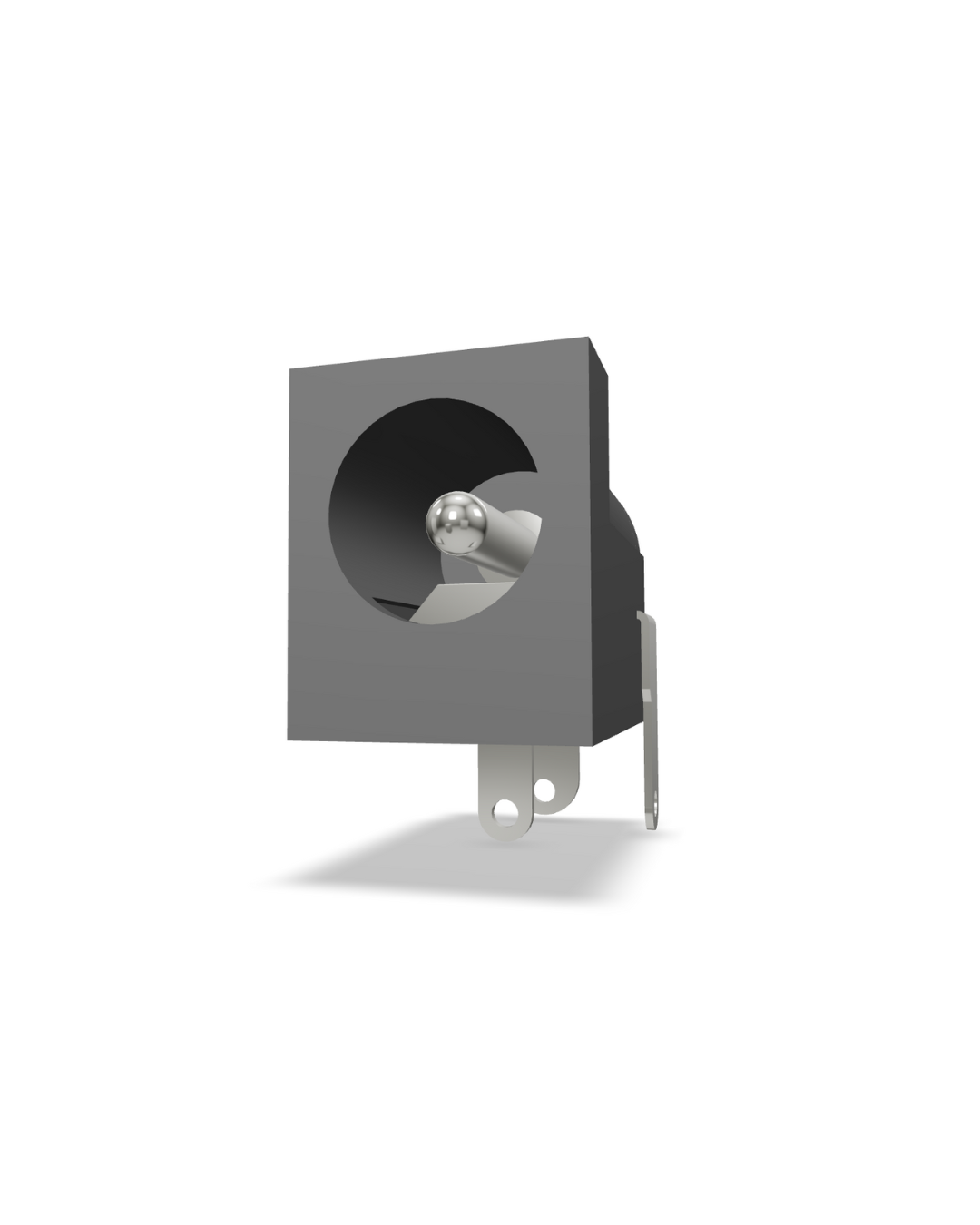

Ø2.0mm DC Power Jack (Locking Option), Right Angle (PDCJ01-01)
Description
The PDCJ01-01 is a reliable Ø2.0mm DC power jack featuring a right-angle design and a locking option for secure connections.
Material and Finish
Refer Table
No. |
Part Name |
Material |
QTY |
Finishing |
1 |
Terminal A |
0.3mm Brass Strip |
1 |
Ag Over Ni Plated |
2 |
Terminal B |
0.3mm Brass Strip |
1 |
Ag Over Ni Plated |
3 |
Terminal C |
0.2mm Brass Strip |
1 |
Ag Over Ni Plated |
4 |
Cover |
PBT/PC |
1 |
Black |
5 |
Plug Pin A |
0.3mm Brass Strip |
1 |
Ni Plated |
6 |
Case |
PBT/PC |
1 |
Black |
Electrical Characteristics
Insulation Resistance: |
100M OHMS Min. @ 500V DC for 1 minute |
Dielectric Strength: |
500V AC For 1 min |
Contact Resistance: |
100m OHMS Max |
Mechanical Data
Insertion Force: |
1.50kgf TYP (Insert & Disconnect the plug gauge 3times) |
Extraction Force: |
0.3 ~ 2.0Kgf (Insert & Disconnect the plug gauge 3times) |
Mating Cycle: |
1000 Cycles at a speed of 10-25 cycles /m |
Part No
PDCJ01-01
