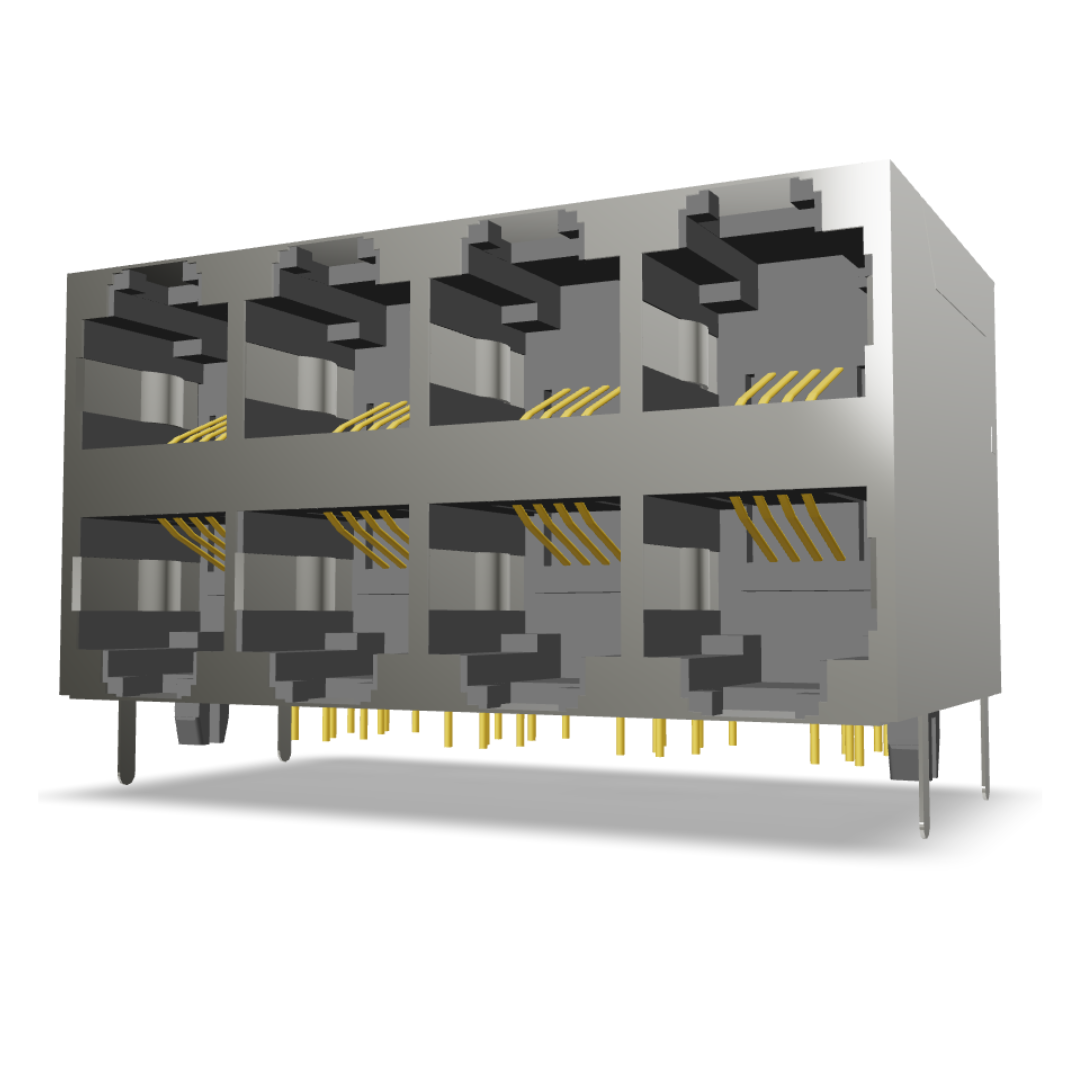

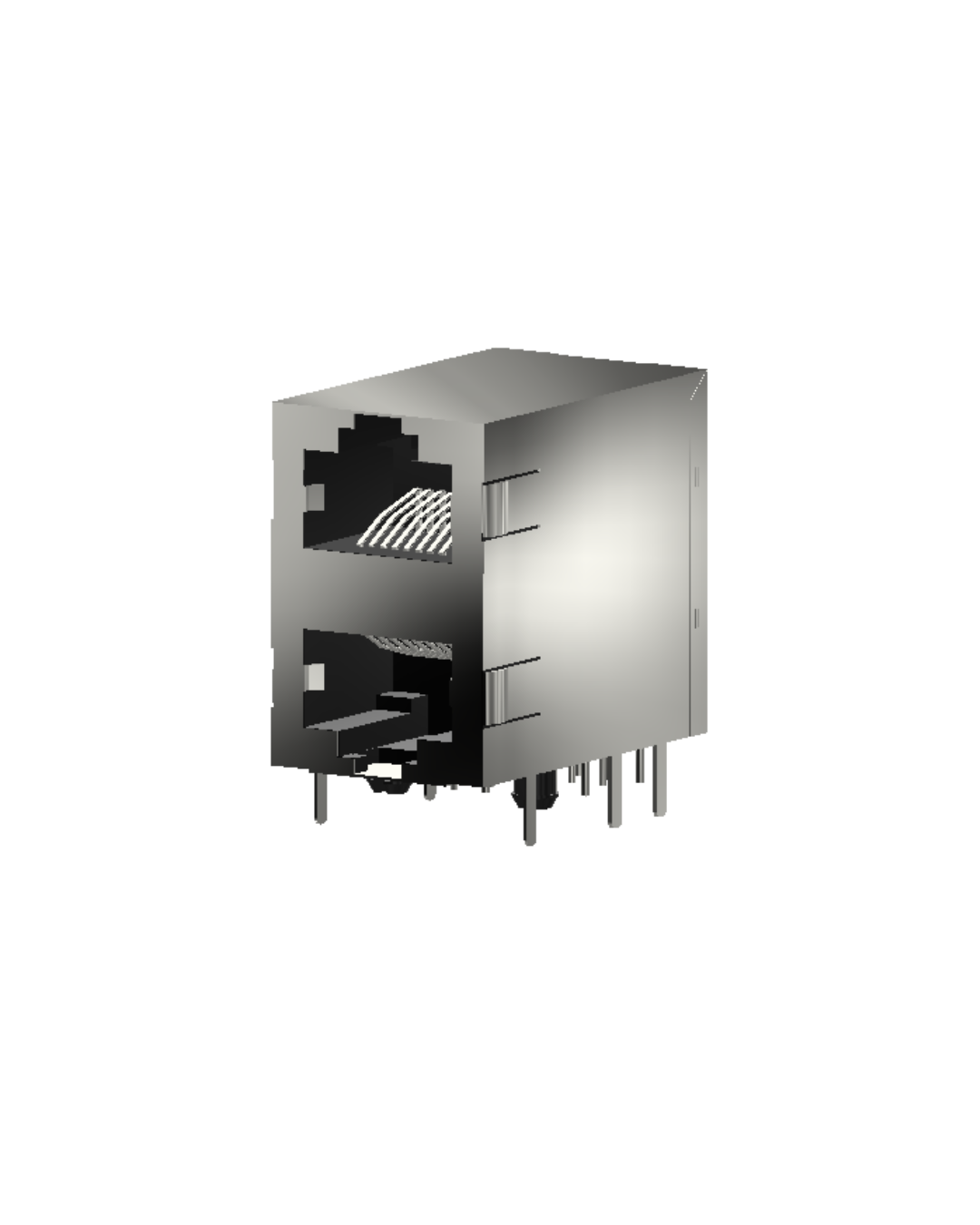

Modular Jack, Side Entry,Shielded With Panel Ground Tabs Double Decker with led option PSY020P
Description
It is a robust connector designed for side-entry applications. The inclusion of an LED option provides visual indication.
Specifications
| Voltage Rating | 150V AC max |
|---|---|
| Current Rating | 1A max |
| Contact Resistance | 30mΩ max |
| Insulation Resistance | 500MΩ at 1000V DC |
| Temperature Range | -40°C to +70°C |
| Dielectric Withstanding | 1000V rms for 1minute |
| Durability | 500 Cycles |
Material & Finish
| Contact | Copper alloy, Gold plated/Gold on contact area & Tin on Tail/ Tin plated |
|---|---|
| Round Pin | Dia 0.45mm |
| Flat Pin | 0.35mm Thick |
| Insulator | PBT, UL94V-0, Black or Grey |
