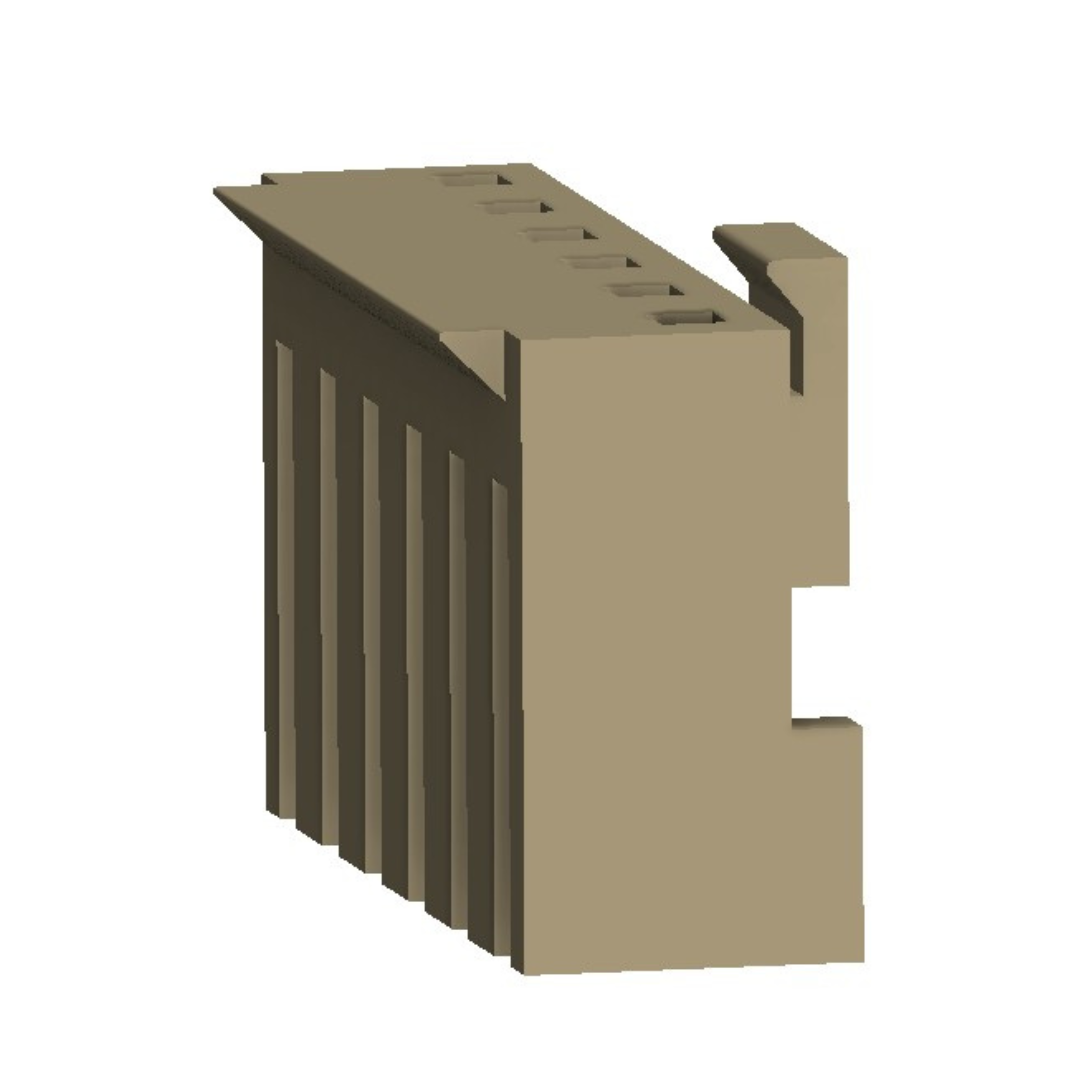

Housing P9045

Description

P9045

Specifications

No.of Ways 2-12 & 16
Voltage Rating 250V AC,DC
Current Rating 7A AC,DC
Contact Resistance 10mΩ max
Insulation Resistance 1000MΩ min
Dielectric Withstanding 1500V AC/minute
Temperature Range -25°C to +85°C
Applicable PC board Thickness 1.6mm
Crimp Terminal Wire Size 18-22 AWG
Insulation O.D 2.80mm max
Contact Retention for Wafer 2.5kg min

Material & Finish

Crimp Contact Copper Alloy, Tin/Gold Plated
Square Pin Brass, Tin/Gold Plated
Insulator Nylon
