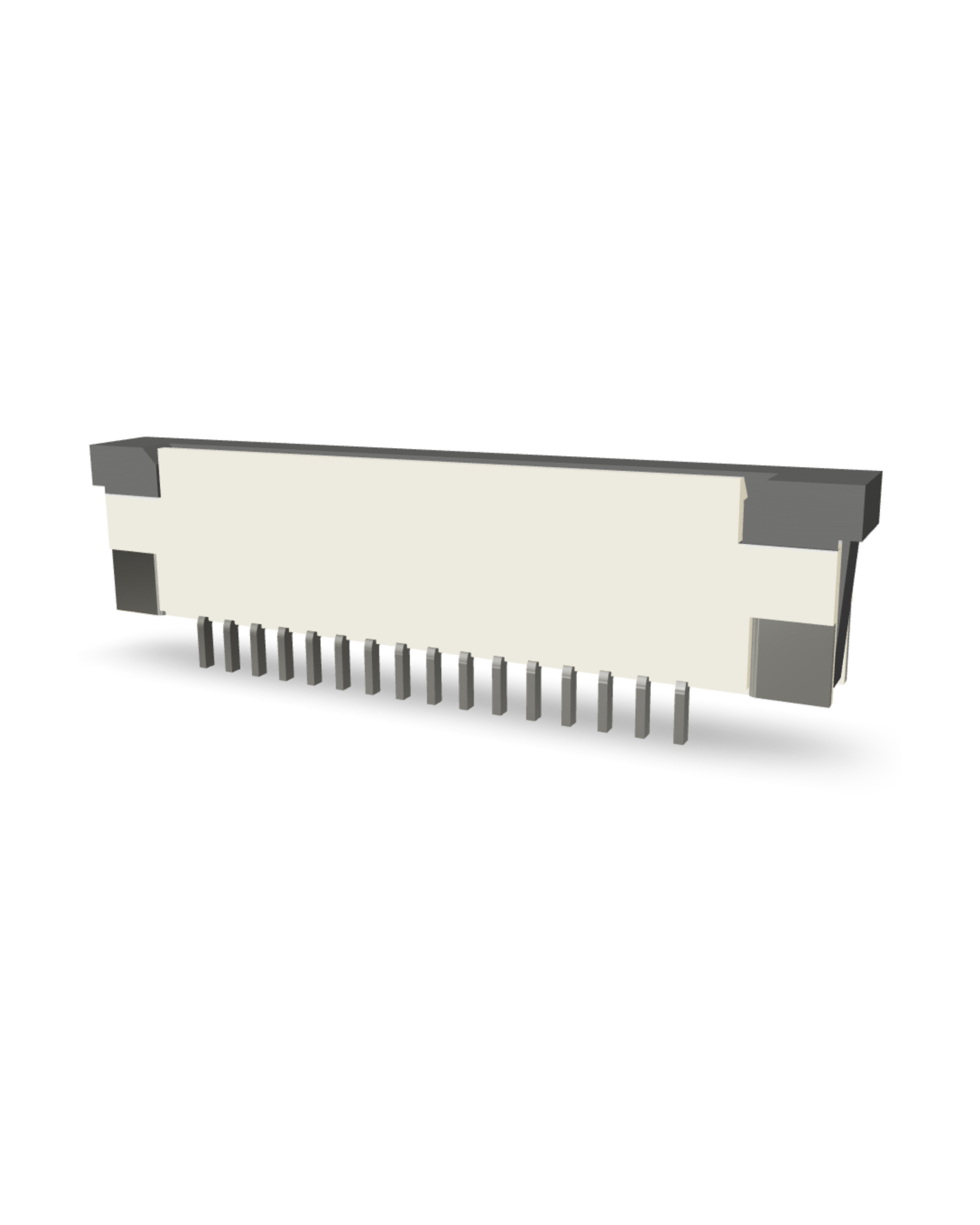

FPC 1.0mm PITCH CONNECTORS HORIZONTAL TYPE BOTTOM CONTACT, RoHS (P7045B2CX2XX-T)
Description
Its horizontal design and bottom contact configuration facilitate easy integration and optimal performance.
Material and Finish
Insulator Body: |
High Temp Thermoplastic UL94V-0 |
Contact Pin: |
Copper Alloy, Tin Plated |
Contact Point |
2mm ,Au 15 µ |
Packaging Type: |
Tube / Tape and Reel |
Electrical Characteristics
Current Rating: |
0.5A Max |
Insulation Resistance: |
1000M OHMS Min |
Dielecetric withstanding: |
250V AC for 1 min |
Contact Resistance: |
30m OHMS Max |
Environmental Data
Operating Temperature: |
-25°C to +85C° |
Part No
P7045B2CX2XX-T
