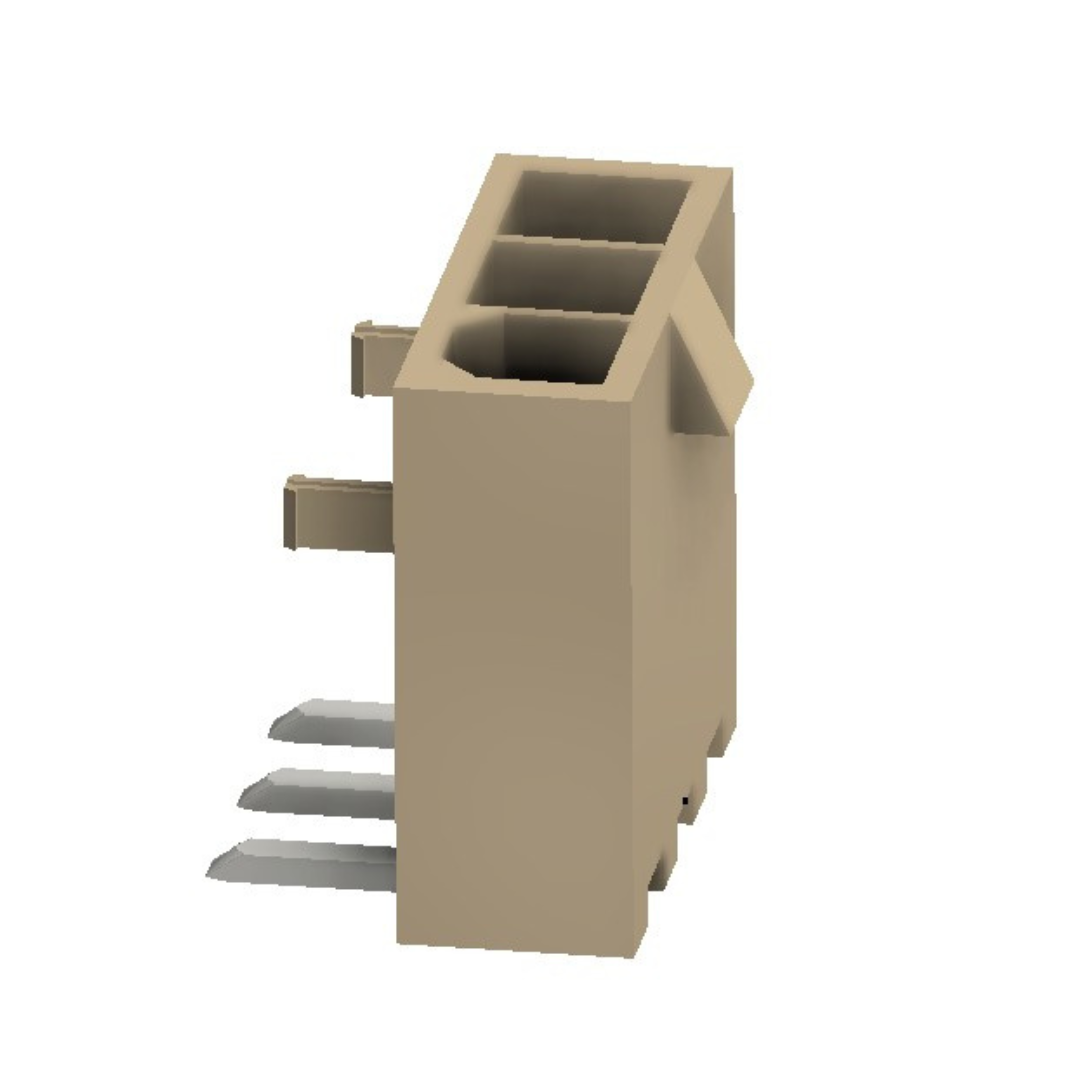

Header Single Row Right Angle(With & W/O Pegs) P9054R

Description

P9054R

Specifications

No.of Ways 2-5
Voltage Rating 250V AC,DC
Current Rating 5A AC,DC
Contact Resistance 30mΩ max
Insulation Resistance 1000MΩ min
Dielectric Withstanding 1500V AC/minute
Temperature Range -25°C to +90°C
Crimp Terminal Wire Size 18-24 AWG
Insulation O.D 2.8mm max

Material & Finish

Crimp Contact Copper Alloy, Tin Plated
Square Pin Copper Alloy, Tin Plated
Insulator Nylon, UL 94V-0
