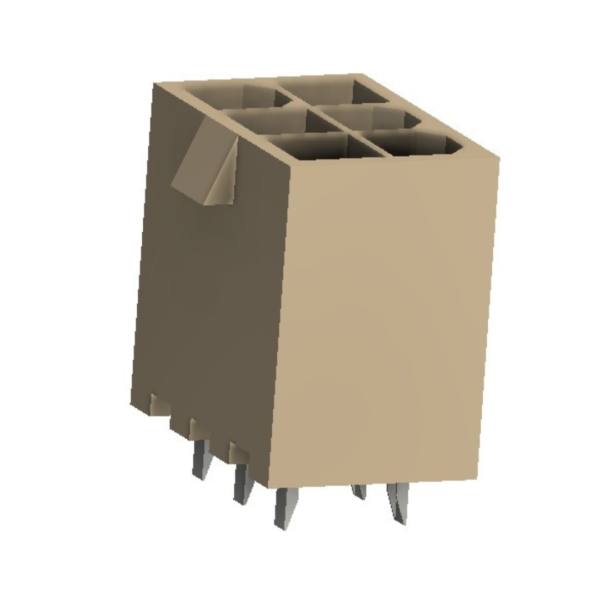

Header Double Row (Straight) (P9049S29-1X-X)
Description
It is a pitch connector designed for board-to-wire connections, offering reliable performance in various electronic applications.
Material and Finish
Material: |
Nylon 66 |
Flammability: |
UL94V-2 |
Color: |
Natural Color |
Contact: |
Copper Alloy, Tin/Gold Plated |
Packaging Type: |
Standard Packing |
Electrical Characteristics
Insulation Resistance: |
100M OHMS Min |
Dielectric withstanding: |
1500V AC/Min |
Current Rating: |
9A AC/DC |
Voltage Rating: |
600V AC/DC |
Contact Resistance: |
30m OHMS Max |
Part No
P9049S29-1X-X
