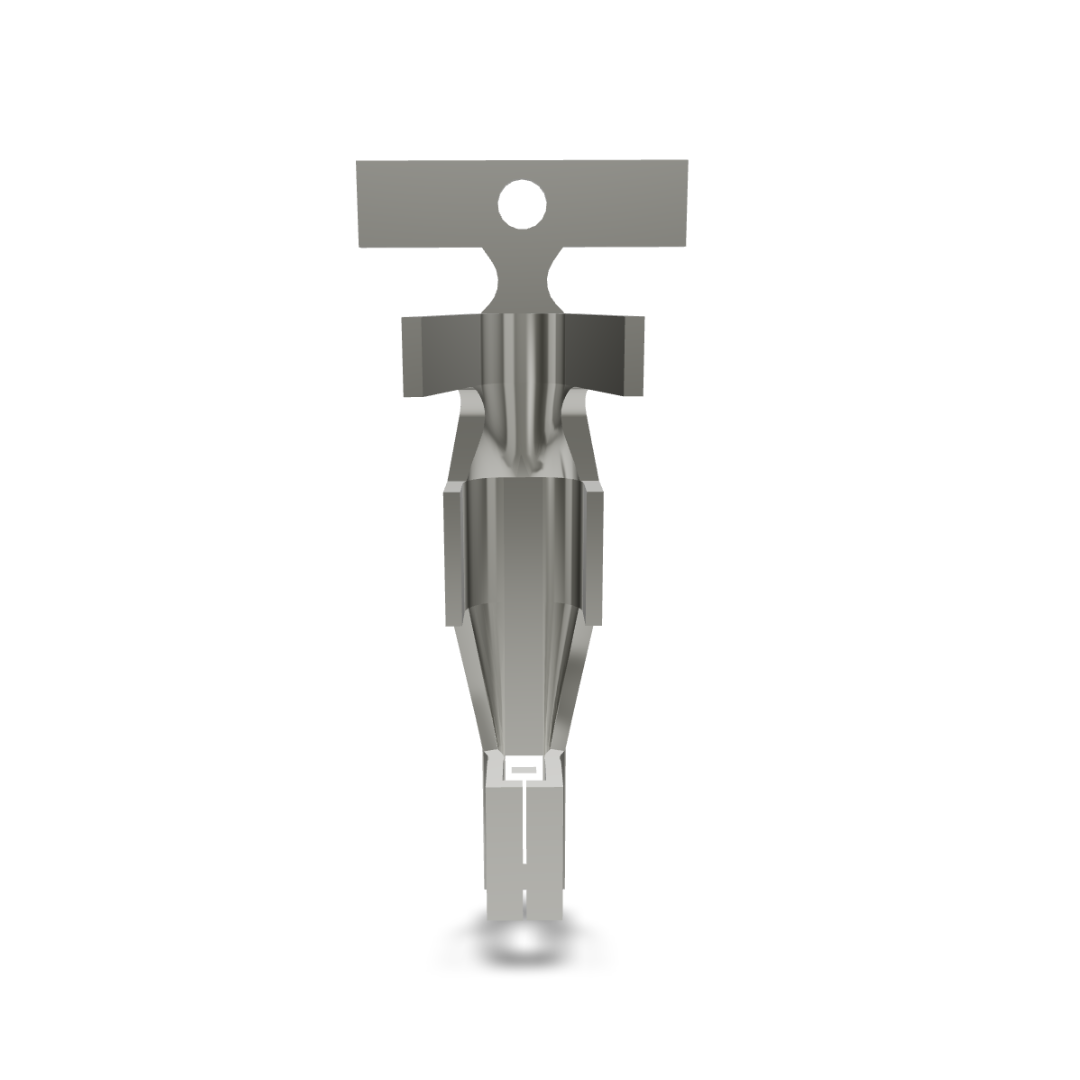

Crimp Terminal P9064T
Description
P9064T
Specifications
| No. of Ways | 2-15 |
|---|---|
| Voltage Rating | 250V AC,DC |
| Current Rating | 3A AC,DC |
| Contact Resistance | 10mΩ max |
| Insulation Resistance | 1000MΩ min |
| Temperature Range | -25°C to +85°C |
| Dielectric Withsatnding | 800V AC/Minute |
| Crimp Terminal Wire Size | 22-30 AWG |
| Insulation O.D | 1.90mm max |
Material & Finish
| Crimp Contact | Copper Alloy, Tin Plated |
|---|---|
| Square Pin | Brass, Tin Plated |
| Insulator | Nylon 66, UL 94V-0 |
Part No
| Finish | Part Number |
|---|---|
| Tin Plated | P9064T00-29 |
